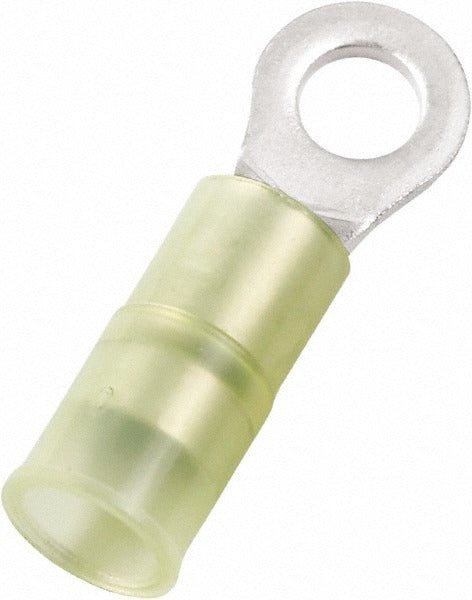

Value Collection ZRNYD2-12-HD Ring Terminal 16-14 Awg

Product Description

The VALUE COLLECTION ZRNYD2-12-HD is a partially insulated circular ring terminal designed for crimp-style wire termination in electrical wiring applications. The terminal accepts 16 to 14 AWG conductors (1.50 to 2.50 sq mm) and fits a 1/2-inch stud. Constructed with a copper contact and a blue nylon insulation sleeve, the terminal measures 1.535 inches in overall length and 0.756 inches in ring width with a contact thickness of 0.031 inches. Electricians and maintenance technicians use these terminals to create reliable, vibration-resistant connections on equipment panels, junction boxes, and control circuits.

This ring terminal is suited for residential, commercial, and light industrial electrical work where a secure, inspectable crimp connection to a threaded stud or binding post is required. The blue color coding identifies compatibility with 16 to 14 AWG wire, making polarity and gauge sorting faster during panel assembly or field wiring. The nylon partial insulation protects the barrel while leaving the ring exposed for stud contact.

Key Features

• Crimp connection type for fast, reliable termination without soldering
• Accepts 16 to 14 AWG wire (1.50 to 2.50 sq mm)
• 1/2-inch stud size for standard terminal blocks and binding posts
• Copper contact material for solid electrical conductivity
• Blue nylon partial insulation for AWG gauge color-coding and barrel protection
• Overall length of 1.535 inches and ring width of 0.756 inches for consistent fitment

Compatibility

Designed as a standard crimp-style circular ring terminal compatible with 1/2-inch threaded studs and 16 to 14 AWG copper or copper-alloy conductors in general electrical wiring and control circuit applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating or removing any conductors. Use a calibrated ratcheting crimp tool rated for the terminal barrel size to ensure a full, gas-tight crimp. Do not use pliers or uncalibrated tools as substitutes, as an improper crimp can result in high-resistance connections or pullout failure.
