Value Collection ZRNYD1-5-50PK Ring Terminal 22-16 Awg 50 Pack

Product Description

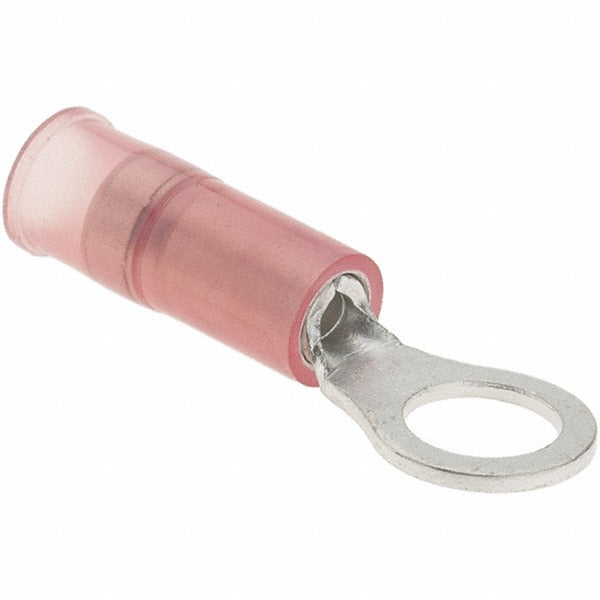

The VALUE COLLECTION ZRNYD1-5-50PK is a partially insulated circular ring terminal designed for crimp-style wire terminations in electrical and control wiring applications. Rated for 22 to 16 AWG wire (0.50 to 1.50 sq mm), the terminal features a copper contact body with a red nylon insulation sleeve. The ring accepts a No. 10 stud (5.30 mm). Overall length is 0.961 inches and ring width is 0.315 inches. This package contains 50 terminals, making it well suited for panel wiring, equipment repair, or service van stock. Licensed electricians and HVAC technicians are the primary installers.

These ring terminals are used in residential and light commercial electrical applications where secure, vibration-resistant wire terminations are required. Common install scenarios include control panel wiring, low-voltage HVAC circuit connections, motor control terminations, and general equipment grounding points. The No. 10 stud size is a standard fit across a wide range of electrical enclosures and terminal blocks. The red color coding identifies 22 to 16 AWG wire range at a glance, helping reduce wiring errors during installation.

Key Features

• Partially insulated nylon sleeve for wire protection and AWG color-code identification
• Copper contact material for reliable conductivity and corrosion resistance
• Crimp connection type for fast, secure termination without soldering
• Accepts 22 to 16 AWG wire (0.50 to 1.50 sq mm)
• Fits No. 10 stud (5.30 mm) — common in electrical panels and terminal blocks
• Pack of 50 terminals for job-site or van stock efficiency

Compatibility

Designed as an OEM-style replacement or general-use crimp ring terminal compatible with No. 10 stud electrical connections accepting 22 to 16 AWG conductors.

Installation Notes

Installation should be performed by a qualified electrician or licensed HVAC technician in accordance with applicable NEC requirements. De-energize the circuit completely before terminating or replacing ring terminals. Use a calibrated ratcheting crimp tool rated for the AWG range being terminated — improper crimping tools can result in high-resistance joints or pull-out failures. Do not use the nylon insulation sleeve as the sole indicator of circuit isolation; always verify with a meter before handling.
