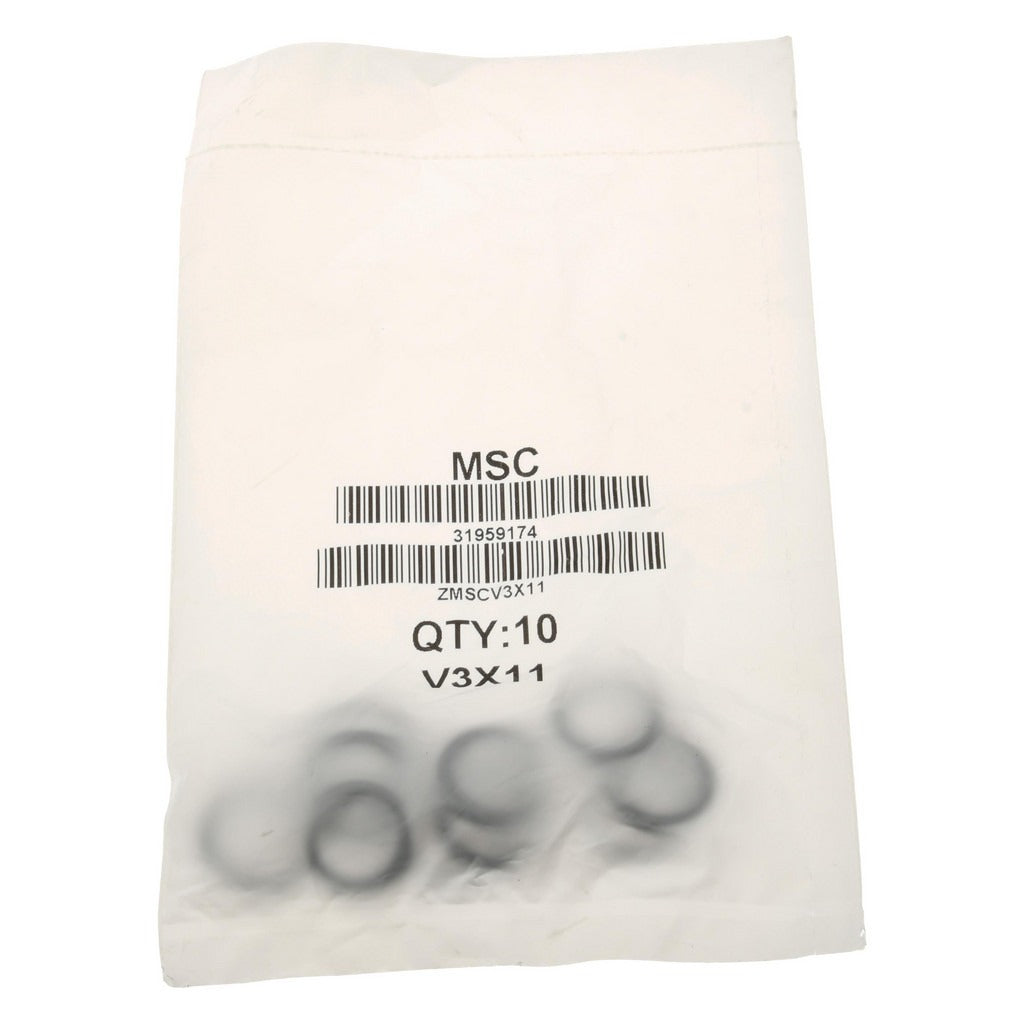

Value Collection ZMSCV3X11 Viton O-ring 11in Id 17in Od

Product Description

The VALUE COLLECTION ZMSCV3X11 is a Viton fluoroelastomer O-ring designed for static and dynamic sealing applications across industrial, mechanical, and fluid-handling systems. Measuring 11 inches inside diameter, 17 inches outside diameter, and 3 inches thick with a round cross section, this O-ring provides a robust seal in environments exposed to petroleum products, high temperatures, and aggressive chemical media. Rated for service between -15 degrees F and 400 degrees F, it delivers low compression set and low gas permeability, making it a reliable choice for demanding sealing applications. It carries a hard (75 Shore A) durometer rating. Sold in packages of 10.

This O-ring is suited for use in hydraulic systems, pneumatic assemblies, pumps, valves, and pipe fittings where petroleum-based fluids or chemical exposure is present. Its wide chemical compatibility and high-temperature resistance make it appropriate for both industrial plant maintenance and heavy equipment service environments. Licensed plumbers, pipefitters, and industrial maintenance technicians commonly specify Viton O-rings in applications where standard nitrile or EPDM materials are inadequate. It is also rated for vacuum service, extending its use to vacuum pump and chamber sealing applications.

Key Features

• Fluoroelastomer (Viton) material provides excellent resistance to petroleum products and a wide range of chemicals
• Operating temperature range of -15 degrees F to 400 degrees F for high-heat environments
• Hard durometer rating (75 Shore A) minimizes extrusion under pressure
• Low compression set maintains long-term sealing force over repeated cycles
• Low gas permeability and rated for vacuum service applications
• Round cross section for standard O-ring groove compatibility

Compatibility

Designed as an OEM-style replacement or direct-fit sealing component for industrial valves, pumps, hydraulic assemblies, and piping systems requiring a Viton O-ring with an 11-inch inside diameter, 17-inch outside diameter, and 3-inch cross-section thickness. Compatible with petroleum-based fluid systems.

Installation Notes

Depressurize and isolate the system completely before removing any existing seals or disassembling fittings. Inspect the O-ring groove for nicks, burrs, or corrosion that could damage the new seal or cause premature failure. Lubricate the O-ring with a compatible lubricant before installation to ease seating and prevent tearing. Installation is typically performed by licensed pipefitters, industrial mechanics, or plumbers in accordance with applicable system service procedures.
