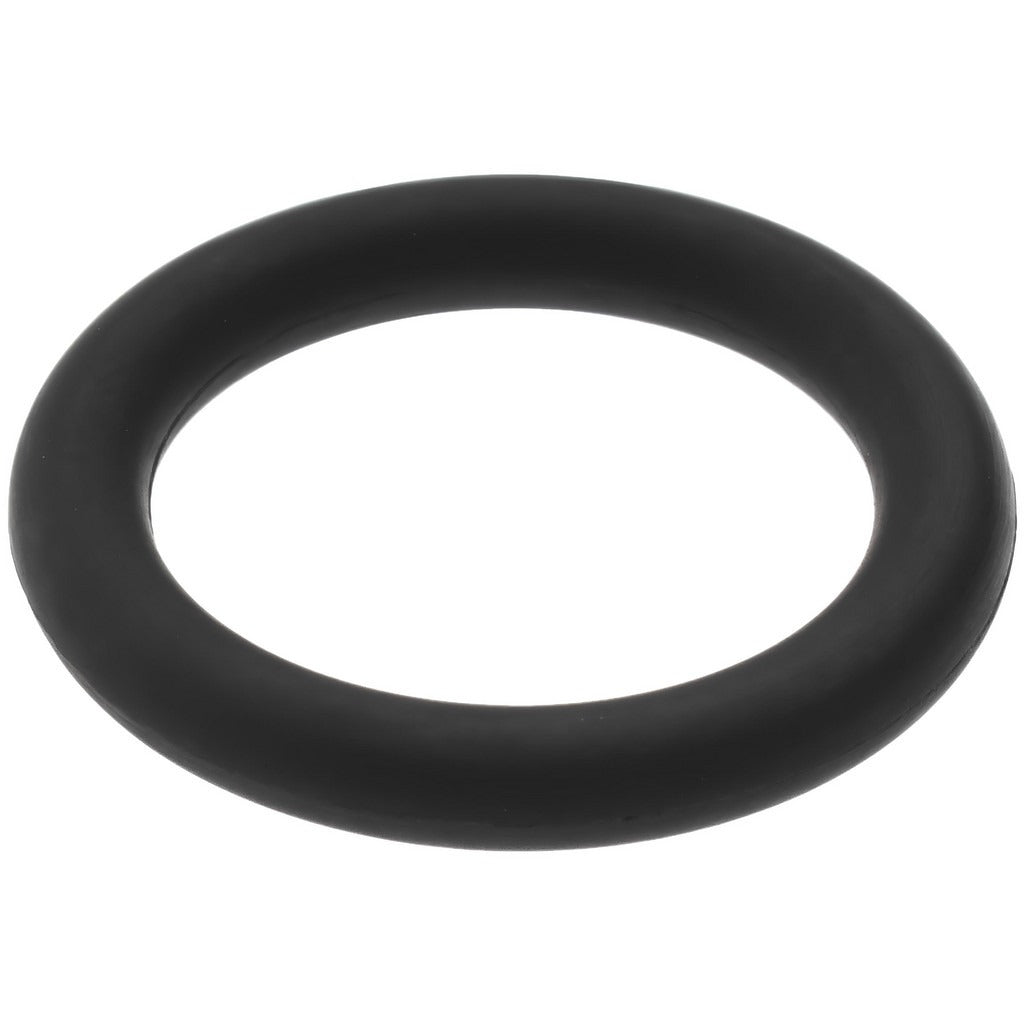

Value Collection ZMSCV2X10 Viton O-ring 10 in Id 14 in Od

Product Description

The VALUE COLLECTION ZMSCV2X10 is a heavy-duty Viton fluoroelastomer O-ring designed for static and dynamic sealing applications across industrial, HVAC, plumbing, and fluid-handling systems. With a 10-inch inside diameter, 14-inch outside diameter, and 2-inch cross-section thickness, this large-format O-ring provides a reliable compression seal in high-temperature and chemically aggressive environments. Rated for service from -15 degrees F to 400 degrees F, it is suited for systems where standard nitrile or EPDM compounds fall short. The round cross-section profile ensures consistent seating in standard O-ring grooves. Hardness is rated at 75 Shore A, classified as hard, supporting low compression set under sustained load.

This O-ring is used in large-diameter flanged connections, pump housings, valve bodies, heat exchanger covers, and equipment that handles petroleum-based fluids, hydraulic oils, fuels, or aggressive chemical media. It is commonly installed in commercial and industrial mechanical systems by licensed plumbers, pipefitters, millwrights, and HVAC-R technicians working on large equipment. Its low gas permeability makes it a viable choice for vacuum service and sealed systems where outgassing must be minimized.

Key Features

• Fluoroelastomer (Viton) compound provides wide chemical compatibility with petroleum products, hydraulic fluids, and many solvents
• Operating temperature range of -15 degrees F to 400 degrees F suits high-heat industrial applications
• 75 Shore A hardness rating supports low compression set under sustained clamping load
• Round cross-section profile seats reliably in standard machined O-ring grooves
• Low gas permeability makes it appropriate for vacuum service applications
• Black color, non-FDA approved — intended for industrial and mechanical use, not food or pharmaceutical contact

Compatibility

Designed for use in large-diameter sealing applications involving petroleum products, hydraulic media, fuels, and chemically aggressive fluids. Suitable for static and dynamic sealing in pump housings, valve bodies, flanged covers, and similar industrial equipment requiring a 10-inch ID fluoroelastomer O-ring.

Installation Notes

Installation should be performed by a qualified tradesperson familiar with sealing and gasketing procedures. De-energize and depressurize the system completely before removing any existing seals or covers. Inspect the mating groove for burrs, corrosion, or damage before seating the O-ring. Avoid twisting or stretching the O-ring during installation, as this can compromise the seal geometry and reduce service life.
