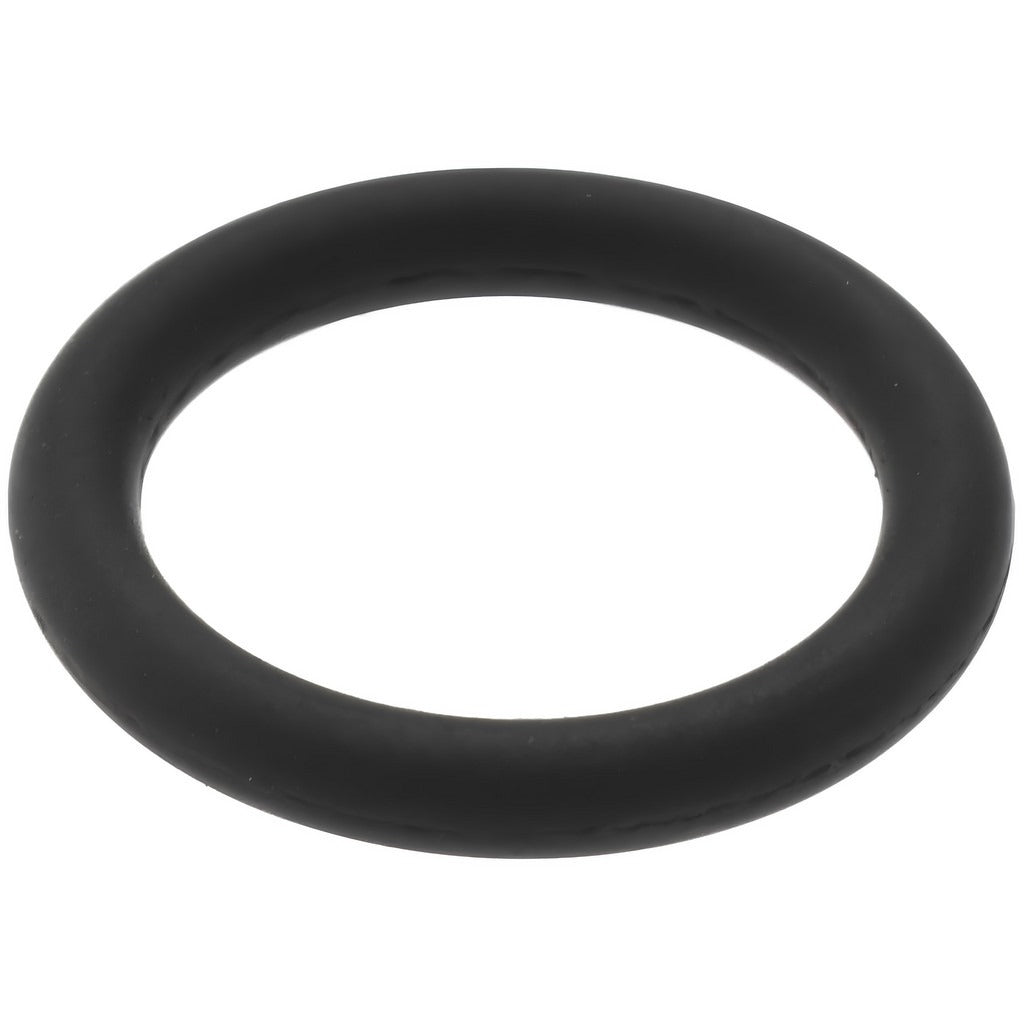

Value Collection ZMSCV1.6X9.1 Viton O-ring 9.1 in Id

Product Description

The VALUE COLLECTION ZMSCV1.6X9.1 is a large-diameter Viton O-ring designed for static and dynamic sealing applications that demand high temperature resistance and broad chemical compatibility. Made from fluoroelastomer, it measures 9.1 inches inside diameter, 12.3 inches outside diameter, and 1.6 inches thick with a round cross section. It carries a hardness rating of 75 Shore A, placing it in the hard durometer range. The fluoroelastomer compound offers low compression set and low gas permeability, making it suitable for vacuum service as well as high-temperature sealing duties. Installers in industrial, plumbing, and mechanical service trades reach for this material when standard nitrile or EPDM compounds are not rated for the temperature range or fluid exposure at hand.

This O-ring is suited for sealing flanges, large bore fittings, pumps, valves, and industrial equipment where service temperatures fall between -15 degrees F and 400 degrees F. Its fluoroelastomer compound is listed as compatible with petroleum products, and its wide spectrum of chemical resistance supports use in fuel handling, hydraulic, and process piping environments. The round cross section seats predictably in standard O-ring grooves machined to match the nominal ID and cross-section thickness. It is sold in packages of 25 units, with a minimum order quantity of 1.

Key Features

• Fluoroelastomer (Viton-type) compound rated from -15 degrees F to 400 degrees F
• 75 Shore A hardness for firm groove seating and low compression set
• Round cross section at 1.6 inches thickness for consistent sealing load
• Low gas permeability makes it suitable for vacuum service
• Good resistance to petroleum products and a wide range of chemicals
• Package quantity of 25 units per order

Compatibility

Designed for use with petroleum products and compatible with systems requiring a fluoroelastomer seal in the 9.1-inch inside diameter range. No specific OEM model compatibility data was provided for this part.

Installation Notes

O-ring installation should be performed by a qualified mechanic, plumber, or industrial maintenance technician following the equipment manufacturer's groove and gland specifications. Depressurize and lock out the system before removing any existing seals. Lubricate the O-ring with a fluid compatible with the fluoroelastomer compound before seating; avoid petroleum-based greases when the fluid service is not petroleum-compatible. Inspect the groove for burrs or corrosion that could damage the sealing surface before installing the replacement ring.
