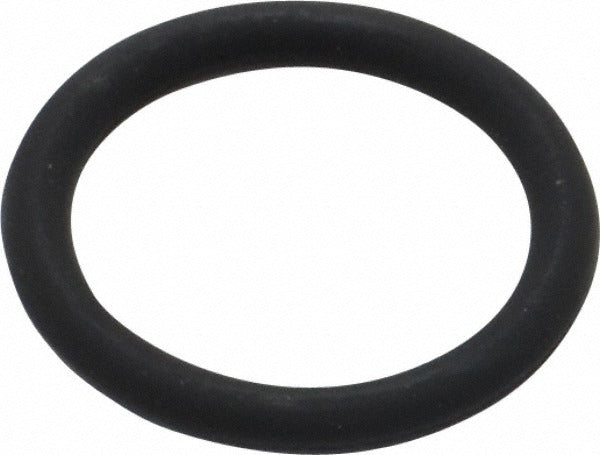

Value Collection ZMSCV1.6X10.1 Viton O-ring 10.1 in Id

Product Description

The VALUE COLLECTION ZMSCV1.6X10.1 is a heavy-duty Viton (fluoroelastomer) O-ring engineered for demanding sealing applications where temperature extremes and chemical exposure are a concern. Measuring 10.1 inches inside diameter, 13.3 inches outside diameter, and 1.6 inches thick, this large-format O-ring features a round cross section and a durometer hardness rating of 75, placing it in the hard category. It delivers reliable static and dynamic sealing in systems that see continuous exposure to petroleum products, high heat, and aggressive fluid media. Licensed tradespeople in industrial, hydraulic, and mechanical systems work with this part regularly.

This O-ring is suited for use in large-bore sealing applications across industrial machinery, hydraulic cylinders, pump housings, and process piping where Viton material is specified. Its rated operating range of -15 degrees F to 400 degrees F makes it appropriate for high-temperature process environments. The fluoroelastomer compound also supports vacuum service applications due to its low gas permeability. Technicians working in petroleum handling, chemical processing, and heavy industrial maintenance will find this size appropriate for large flange and bore sealing scenarios.

Key Features

• Fluoroelastomer (Viton) construction provides good resistance to petroleum products and a wide spectrum of chemical compatibility
• Rated from -15 degrees F to 400 degrees F for high-temperature service
• Durometer hardness of 75 (hard) reduces compression set under sustained load
• Low gas permeability makes it suitable for vacuum service applications
• Round cross section for consistent seating in standard O-ring groove profiles
• Black color; non-FDA-approved material

Compatibility

Designed for use in large-bore O-ring grooves requiring a 10.1-inch inside diameter fluoroelastomer seal; compatible with systems handling petroleum products and fluids within the rated temperature range.

Installation Notes

Installation of large-format O-rings of this size is typically performed by industrial mechanics, millwrights, or licensed tradespeople during pump, flange, or housing overhauls. Depressurize and drain the system completely before disassembly. Inspect the groove for damage, burrs, or debris before seating the O-ring, and avoid stretching or twisting the ring during installation. Do not use petroleum-based lubricants on Viton O-rings unless confirmed compatible with the system fluid.
