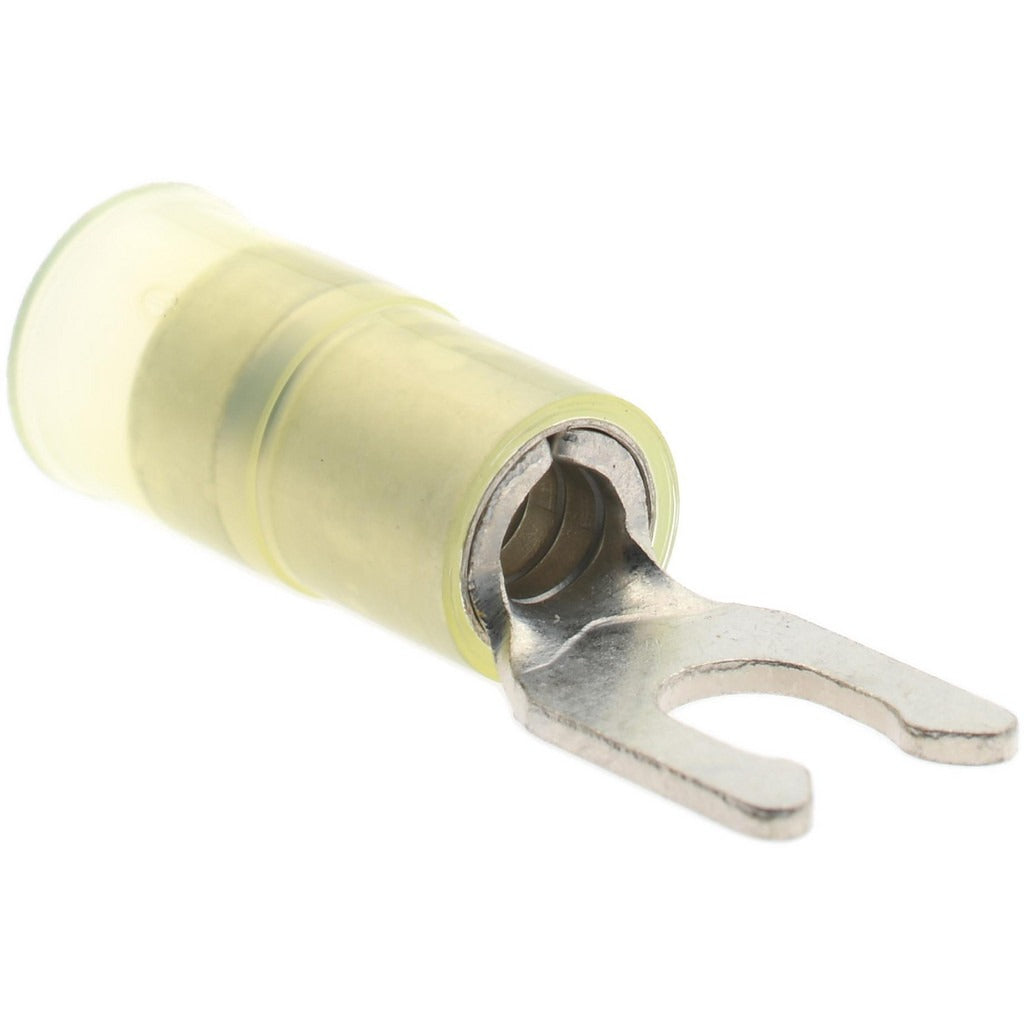

Value Collection ZLSNYD5-4 Locking Fork Terminal

Product Description

The VALUE COLLECTION ZLSNYD5-4 is a partially insulated locking fork terminal designed for secure crimp-style wire termination. Built with a nylon insulation sleeve in high-visibility yellow, this terminal accepts wire sizes from 4.00 to 6.00 square millimeters and fits a No. 8 stud (4.30 mm). The locking fork design keeps the terminal seated on the stud during vibration or movement, reducing the chance of accidental disconnection. At 1.142 inches overall length and 0.327 inches fork width, it is sized for compact panel and junction box applications. Licensed electricians and electrical assembly technicians are the primary installers.

This locking fork terminal is suited for residential and light commercial electrical panels, control panels, terminal blocks, and equipment wiring harnesses where a reliable mechanical connection to a No. 8 screw or stud is required. The yellow color coding corresponds to the 4.00 to 6.00 sq mm wire range, aiding organization and inspection during installation and service. It is commonly used in HVAC control wiring, motor connections, and industrial equipment assembly where vibration resistance is a priority.

Key Features

• Locking fork design resists accidental disconnection under vibration
• Partially insulated nylon sleeve in yellow for quick wire-range identification
• Crimp connection type for fast, reliable termination without soldering
• Accepts wire sizes from 4.00 to 6.00 square millimeters
• Fits No. 8 stud (4.30 mm diameter)
• Compact form factor at 1.142 inches overall length and 0.039 inches thickness

Compatibility

Designed for use with No. 8 studs and screws in applications requiring crimp termination of 4.00 to 6.00 sq mm wire conductors.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating or removing any wiring connections. Use a calibrated crimp tool rated for the wire gauge and terminal type to ensure a secure, gas-tight crimp. Do not attempt to solder a crimp-style terminal, as this can compromise the connection integrity.
