Value Collection ZBD9500-222 Viton O-ring Dash 222

Product Description

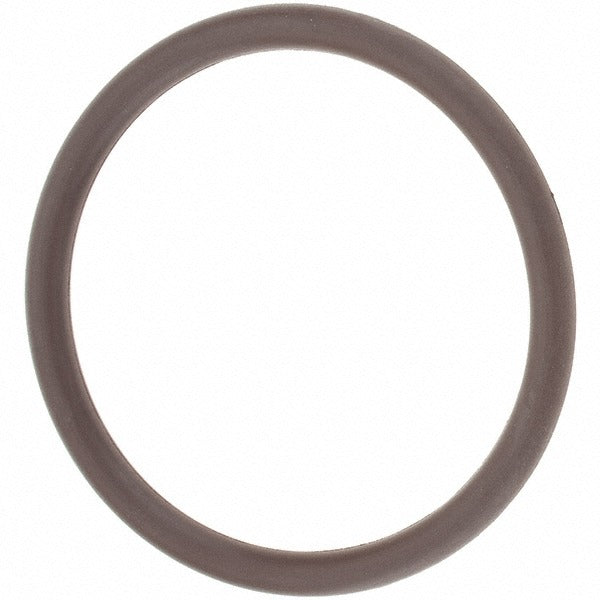

The VALUE COLLECTION ZBD9500-222 is a Dash 222 Viton O-ring designed for static and dynamic sealing applications in fluid and gas systems. Constructed from Viton (fluoroelastomer), this O-ring measures 1.5 inches inside diameter, 1.75 inches outside diameter, and 0.125 inches in cross-section thickness. Its round cross-section profile seats consistently in standard O-ring grooves. Rated for continuous service from -15 degrees F to 400 degrees F, it holds up in high-temperature environments where standard Buna-N seals fail. A Shore hardness of 75 provides firm compression without excessive deformation under load. Licensed plumbers, HVAC technicians, and industrial mechanics reach for Viton O-rings when the application involves elevated heat, fuels, oils, or aggressive chemical exposure.

This O-ring is used across a wide range of residential and commercial sealing applications including pump housings, valve stems, hydraulic fittings, refrigerant service ports, and fuel system components. It is suited for any installation where Dash 222 sizing is specified and where Viton material compatibility with hydrocarbons, synthetic lubricants, or high-temperature steam is required. Plumbing, HVAC, and industrial maintenance technicians commonly install this size during valve rebuilds, pump overhauls, and fitting replacements.

Key Features

• Viton (fluoroelastomer) construction resists fuels, oils, hydraulic fluids, and many chemical solvents
• Rated from -15 degrees F to 400 degrees F for high-temperature service
• Dash 222 standard sizing: 1.5 inches ID, 1.75 inches OD, 0.125 inches thickness
• Round cross-section seats evenly in standard O-ring grooves
• Shore hardness of 75 provides firm, reliable seal compression
• Lightweight at 0.01 pounds for easy handling and installation

Compatibility

Designed as a standard Dash 222 O-ring replacement for any system or fitting that calls for a 1.5 inches ID Viton seal with a round cross-section profile.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or industrial mechanic following applicable codes and system manufacturer guidelines. Depressurize and isolate the system before removing the old O-ring to prevent fluid or refrigerant release. Lightly lubricate the O-ring with a compatible lubricant before seating to reduce the risk of tearing during installation. Do not use petroleum-based lubricants with Viton seals unless confirmed compatible with system fluids.
