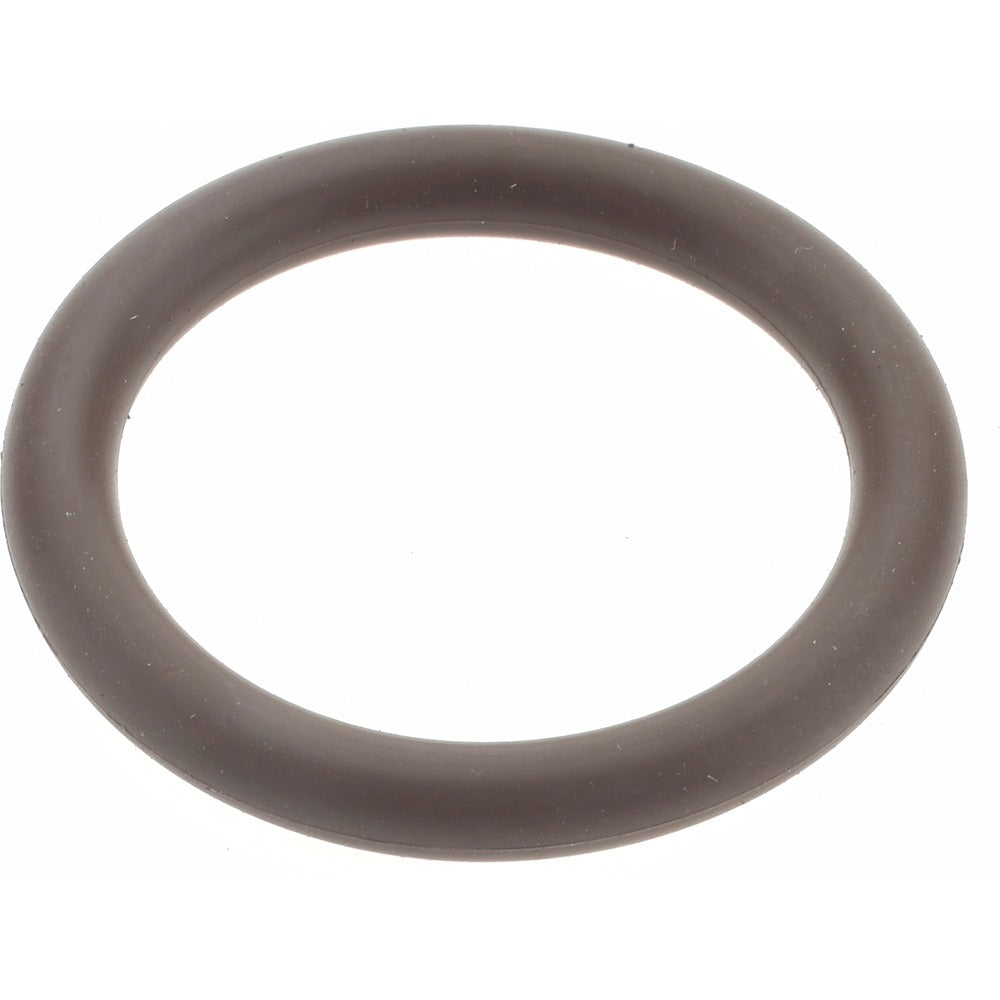

Value Collection ZBD9500-212 Viton O-ring Dash 212

Product Description

The VALUE COLLECTION ZBD9500-212 is a Dash 212 Viton O-ring with a round cross section, designed for static and dynamic sealing applications across a wide range of industrial and mechanical systems. It measures 0.880 inches inside diameter, 1.130 inches outside diameter, and 0.125 inches thick. The Viton (FKM) compound delivers a Shore A hardness of 75 and holds a rated service range of -15 degrees F to 400 degrees F, making it well suited for high-temperature fluid and chemical sealing duties. Licensed tradespeople and maintenance mechanics select this O-ring for jobs that demand heat and chemical resistance beyond what standard nitrile compounds can provide.

This O-ring is appropriate for use in hydraulic fittings, pneumatic assemblies, fuel system connections, and fluid transfer lines where elevated operating temperatures or aggressive media are present. Typical applications span HVAC refrigerant service ports, plumbing unions, and industrial equipment seals. Its round cross section seats consistently in standard O-ring grooves machined to AS568 Dash 212 dimensions. Sold individually per package with a minimum order quantity of 25 units.

Key Features

• Viton (FKM) compound resists fuels, oils, hydraulic fluids, and many chemical solvents
• Rated service range of -15 degrees F to 400 degrees F for high-temperature environments
• Shore A hardness of 75 provides a firm, reliable seal under pressure
• Round cross section seats in standard AS568 Dash 212 O-ring grooves
• Inside diameter 0.880 inches, outside diameter 1.130 inches, thickness 0.125 inches

Compatibility

Designed as a direct-fit replacement for any application requiring an AS568 Dash 212 O-ring in Viton material with a round cross section.

Installation Notes

Shut down and depressurize the system completely before removing the old O-ring. Inspect the groove for nicks, burrs, or corrosion that could damage the new seal. Lightly lubricate the O-ring with a compatible fluid or O-ring lubricant prior to installation to ease seating and reduce the risk of tearing during assembly. Do not over-stretch or twist the O-ring during installation.
