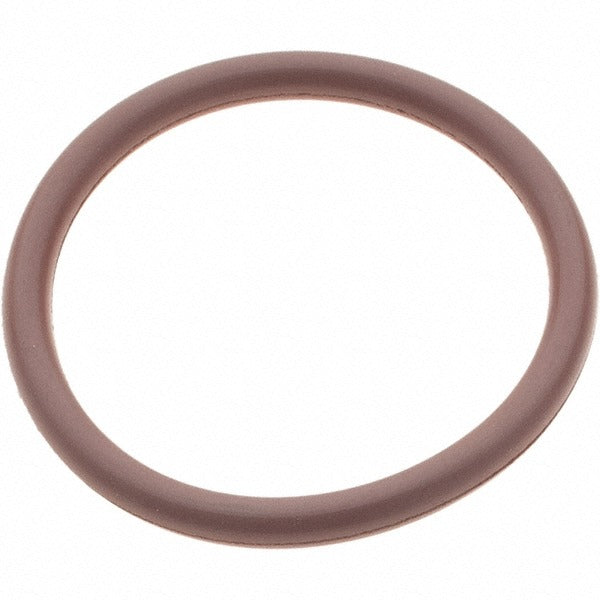

VALUE COLLECTION Value Collection ZBD9500-120 Viton O-ring Dash 120

Value Collection ZBD9500-120 Viton O-ring Dash 120

SKU: ZBD9500-120
Availability: In Stock

Ships same day if ordered by 12 pm

$38.45
$38.45
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The VALUE COLLECTION ZBD9500-120 is a Dash 120 Viton O-ring designed for static and dynamic sealing applications across plumbing, hydraulic, pneumatic, and fluid-handling systems. It features a round cross section with a 1 inch inner diameter, a 1.19 inch outer diameter, and a wall thickness of 0.09 inches. The Viton compound provides strong resistance to fuels, oils, and elevated temperatures, making it a reliable choice for demanding service environments. Hardness is rated at 75 Shore A, placing it in the hard range for firm, consistent sealing under pressure. Licensed tradespeople and maintenance technicians working with fluid or gas sealing systems are the primary installers.

This O-ring is suited for residential and commercial applications involving fuel lines, hydraulic fittings, pump housings, valve stems, and similar connections where high-temperature or chemical-resistant sealing is required. The Viton material performs across a rated temperature range of -15 degrees F to 400 degrees F, supporting use in both cold-climate and high-heat service scenarios. It is sold individually with a minimum order quantity of 25 units.

Key Features

  • Viton compound resists fuels, oils, and chemical exposure common in trade applications
  • Rated operating range from -15 degrees F to 400 degrees F
  • 75 Shore A hardness rating for firm, stable sealing performance
  • Round cross section ensures consistent contact and even compression
  • 1 inch ID and 1.19 inch OD with 0.09 inch wall thickness for precise fitment
  • Dash 120 designation for straightforward cross-referencing during replacement

Compatibility

Designed as a standard Dash 120 O-ring replacement for systems requiring a 1 inch ID Viton seal with a round cross section. Verify groove dimensions and compression requirements before installation.

Installation Notes

Installation should be performed by a qualified technician familiar with sealing system specifications. Shut down and depressurize the system fully before removing any existing seals or fittings. Lubricate the O-ring with a compatible fluid or grease to avoid tearing during installation — do not use petroleum-based lubricants with Viton unless confirmed compatible with the system media. Inspect the seating groove for nicks or burrs before seating the new ring.

Technical Specifications
Material
Viton
Dash Number
120
Inner Diameter
1 inch
Outer Diameter
1.19 inches
Thickness
0.09 inches
Cross Section Shape
Round
Hardness
75 Shore A
Hardness Rating
Hard
Minimum Working Temperature
-15 degrees F
Maximum Working Temperature
400 degrees F
FDA Approved
No
Weight
0.01 pounds
Package Quantity
1
Minimum Order Quantity
25
Brand
VALUE COLLECTION
Manufacturer Part Number
ZBD9500-120
