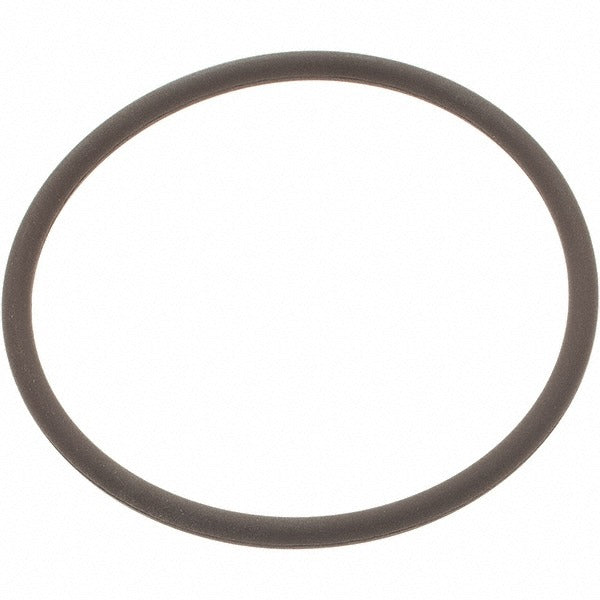

Value Collection ZBD9500-026 Viton O-ring Dash 026

Product Description

The VALUE COLLECTION ZBD9500-026 is a Dash 026 Viton O-ring with a round cross section designed for static and dynamic sealing applications in fluid, pneumatic, and hydraulic systems. The inside diameter measures 1.25 inches, the outside diameter measures 1.38 inches, and the cross-section thickness is 0.0625 inches. Made from Viton fluoroelastic compound, this O-ring carries a hardness rating of 75 Shore A and handles continuous service temperatures from -15 degrees F to 400 degrees F. Plumbers, HVAC technicians, and industrial maintenance professionals install this part wherever Viton's chemical and heat resistance is required over standard Buna-N.

This O-ring suits sealing applications that involve petroleum-based fluids, hydraulic oils, fuels, and elevated operating temperatures. Its Dash 026 sizing follows AS568 standard designations, making it a direct fit wherever a Dash 026 groove is specified. Common install environments include valve bodies, pump housings, threaded fittings, and refrigeration service ports that see elevated temperatures or chemically aggressive media. This SKU is sold in a package quantity of one, with a minimum order quantity of 25 units.

Key Features

• Viton fluoroelastic compound resists petroleum fluids, hydraulic oil, and elevated temperatures
• Operating temperature range of -15 degrees F to 400 degrees F
• 75 Shore A hardness rating — classified Hard — reduces extrusion under pressure
• Round cross-section profile seats cleanly in standard AS568 Dash 026 grooves
• Precision decimal dimensions: 1.2500 inches ID, 1.3800 inches OD, 0.0625 inches thick

Compatibility

Designed as a standard AS568 Dash 026 replacement O-ring for any application specifying a 1.25-inch ID Viton seal with a 0.0625-inch cross section.

Installation Notes

Installation is performed by licensed plumbers, HVAC technicians, or qualified industrial maintenance personnel. Depressurize and drain the system completely before removing or installing any O-ring seal. Lightly lubricate the O-ring with a compatible fluid or grease prior to seating to prevent tearing during assembly. Inspect the groove for burrs or contamination before installation to ensure a leak-free seal.
