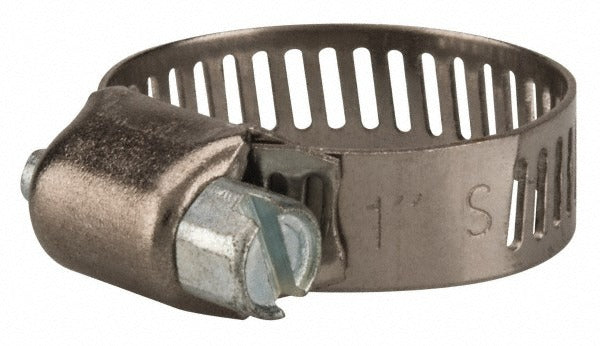

Value Collection XM01B1125 Worm Gear Clamp Sae 8

Product Description

The VALUE COLLECTION XM01B1125 is a worm gear clamp rated SAE Size 8, designed to secure hose connections across a clamping range of 0.433 inches to 1.000 inch in diameter. The band is constructed from 301-grade stainless steel with a carbon steel screw housing, providing corrosion resistance suitable for fluid, air, and fuel line applications. The band measures 5/16 inches wide. This clamp is installed by plumbers, HVAC technicians, automotive service professionals, and general maintenance trades anywhere a reliable hose-to-barb or hose-to-fitting seal is needed.

The XM01B1125 worm gear clamp fits a broad range of residential and light commercial applications including coolant hoses, radiator lines, air intake connections, fuel lines, irrigation tubing, and HVAC condensate drain lines. The SAE 8 designation indicates a standardized clamping range, making this clamp a direct interchange for similarly rated worm drive clamps used in automotive, plumbing, and mechanical systems. This SKU is sold individually but must be ordered in multiples of 5.

Key Features

• SAE Size 8 worm drive clamp with a clamping range of 0.433 to 1.000 inch diameter
• Band material is 301 stainless steel with carbon steel drive housing for corrosion resistance
• Band width of 5/16 inches distributes clamping load evenly across the hose surface
• Worm drive mechanism allows precise torque adjustment with a standard flat-blade or hex-head driver
• Lightweight at 0.03 pounds — suitable for tight-clearance installations
• Minimum order quantity of 5 units makes this practical for service truck stock and batch installations

Compatibility

Designed as an OEM-style replacement or service clamp for any application requiring a SAE 8 worm gear clamp with a clamping range of 3/8 to 1 inch diameter and a 5/16-inch-wide stainless steel band.

Installation Notes

Shut off fluid flow and relieve system pressure before removing or installing hose clamps. Position the clamp so the screw housing does not rest directly over the hose seam or a raised bead on the fitting. Tighten with a flat-blade screwdriver or a 5/16-inch hex driver to snug contact — do not over-torque, as excess force can cut through the hose wall. Inspect the clamp band for sharp edges before installation to avoid damaging soft hose materials.
