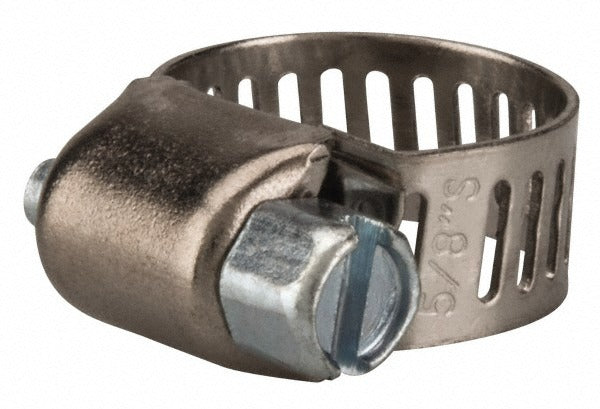

Value Collection XM01B0616 Worm Gear Clamp Sae 4

Product Description

The VALUE COLLECTION XM01B0616 is a worm gear clamp rated SAE Size 4, designed to secure hose and tubing connections in plumbing, HVAC, and general mechanical service applications. The clamp features a 301 stainless steel and carbon steel band that is 5/16 inches wide, with an adjustment range spanning 1/4 inch to 5/8 inch in diameter. The worm drive mechanism allows precise tightening with a standard slotted or hex-head screwdriver, making it a straightforward choice for technicians who need a reliable mechanical clamp across a range of fitting sizes. At 0.03 pounds, this is a lightweight fastening component suited for light-duty to medium-duty connections.

This worm gear clamp is used across residential and light commercial service work wherever hose-to-barb or hose-to-nipple connections require mechanical retention. Typical applications include condensate drain line fittings, radiator hoses, low-pressure water supply tubing, and ventilation duct connections. Plumbers, HVAC technicians, and general mechanical contractors frequently carry SAE 4 clamps as standard stock for field repairs and new installations involving small-diameter flexible tubing.

Key Features

• SAE Size 4 worm drive clamp with 1/4 to 5/8 inch diameter adjustment range
• 301 stainless steel and carbon steel band construction for corrosion resistance
• 5/16 inch band width provides consistent clamping force distribution
• Worm drive mechanism compatible with standard slotted or hex-head drivers
• Lightweight at 0.03 pounds for easy handling and field carry

Compatibility

Designed as a standard SAE 4 worm gear clamp for use with flexible hose and tubing in the 1/4 to 5/8 inch outside diameter range across general plumbing, HVAC, and mechanical service applications.

Installation Notes

Installation is performed by plumbers, HVAC technicians, or general mechanical contractors using a flat-blade or hex-head screwdriver. Before installing, ensure the hose or tubing is fully seated on the fitting barb or nipple. Position the clamp band past the bead or retaining feature of the fitting before tightening. Do not overtighten, as excessive torque can cut through soft tubing or distort the band.
