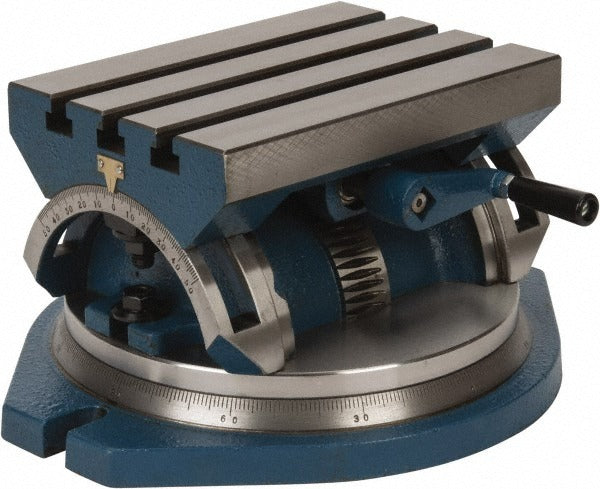

Value Collection WTS10 Angle Table 154 Lb Capacity Swivel

Product Description

The VALUE COLLECTION WTS10 is a swivel angle table designed for use on milling machines, drill presses, and similar machine tools where workpieces must be positioned at precise compound angles. The table measures 14 inches in overall length, 12 inches in overall width, and 13.43 inches in overall height, with a T-slot width of 0.472 inches for standard workholding fixtures and clamps. It supports a maximum load capacity of 154 pounds. Machinists and tool-and-die professionals install this table as a workholding accessory when angled cuts, angled drilling, or compound-angle setups are required on a standard machine table.

The WTS10 is suited for job-shop and production environments where repeatable angle positioning is needed without a dedicated tilting machine. The swivel function allows the table to be rotated and locked at the required angle before beginning a machining operation. The T-slot configuration accepts standard strap clamps, step blocks, and T-bolts commonly found in machine shops. This table is appropriate for light-to-medium duty work within its 154-pound load rating.

Key Features

• Swivel function enables compound-angle workpiece positioning
• T-slot width of 0.472 inches accepts standard machine-tool workholding hardware
• Maximum load capacity of 154 pounds for light-to-medium duty setups
• Overall dimensions of 14 x 12 x 13.43 inches fit a range of machine table sizes
• Single-piece package quantity — no additional units required per order

Compatibility

Designed as an OEM-style workholding accessory compatible with milling machines, drill presses, and machine tools that accept a standard 0.472-inch T-slot clamping system.

Installation Notes

Installation and setup should be performed by a qualified machinist or tool-room professional. Power down and lock out the machine before mounting or repositioning the angle table on the machine table. Verify that the combined weight of the angle table, workholding fixtures, and workpiece does not exceed the 154-pound maximum load capacity. Ensure all T-slot hardware is fully tightened and the swivel lock is secured before beginning any machining operation.
