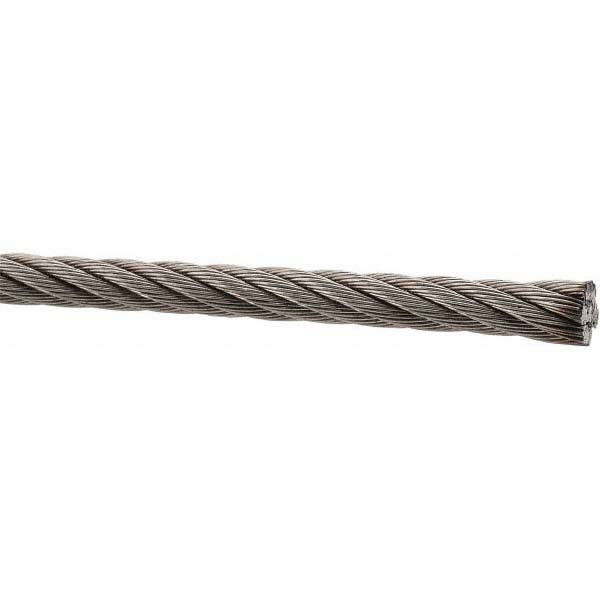

Value Collection WS-MH-WIRE-154 Aircraft Cable 1/4 in

Product Description

The VALUE COLLECTION WS-MH-WIRE-154 is a 1/4-inch diameter aircraft cable constructed from Grade 316 stainless steel with a 7x19 strand core configuration. This cable delivers a breaking strength of 4,900 pounds, making it suited for demanding rigging, lifting, and tensioning applications. The 7x19 construction — seven bundles of 19 individual wires — provides high flexibility relative to its diameter, an important characteristic when the cable must bend around pulleys, sheaves, or termination hardware. It is sold in 1-foot increments from a 1,000-foot coil, with a minimum order quantity of 100 feet. Licensed tradespeople and industrial maintenance professionals use this cable where corrosion resistance and load capacity are both required.

This aircraft cable is appropriate for marine environments, commercial rigging, safety restraints, fall-arrest hardware, and mechanical control runs where Grade 316 stainless steel is specified for its chloride and corrosion resistance. The 7x19 strand core suits applications requiring repeated flexing rather than static, straight-line tension runs. Typical installers include riggers, marine service technicians, millwrights, and commercial maintenance contractors. It is priced and ordered in 1-foot increments, allowing job-specific quantity procurement without excess material.

Key Features

• 4,900-pound breaking strength for heavy-duty rigging and load-bearing applications
• Grade 316 stainless steel construction provides strong resistance to corrosion and chloride exposure
• 7x19 strand core configuration delivers high flexibility for use around pulleys and sheaves
• 1/4-inch diameter — a commonly specified size for industrial and marine cable hardware
• Sold in 1-foot increments from a 1,000-foot coil, minimum order 100 feet
• Stainless steel finish requires no additional protective coating in most service environments

Compatibility

Designed for use with standard 1/4-inch cable fittings, thimbles, swage terminals, wire rope clips, and turnbuckles rated for 7x19 aircraft cable construction.

Installation Notes

Installation should be performed by qualified riggers or tradespeople familiar with wire rope termination techniques and applicable load ratings. Always de-energize or de-load any connected mechanical system before cutting or replacing cable. Use the correct swaging tool or mechanical fitting for 1/4-inch 7x19 cable — improper termination is the leading cause of premature fitting failure. Verify that the selected fittings and anchors are rated to meet or exceed the cable breaking strength of 4,900 pounds before placing the assembly into service.
