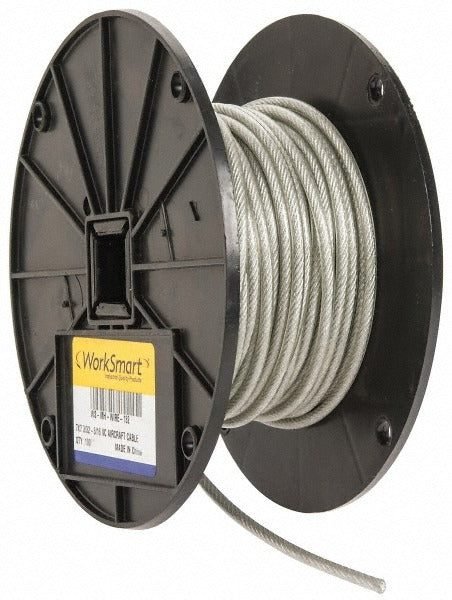

Value Collection WS-MH-WIRE-132 Aircraft Cable 920 Lb

Product Description

The VALUE COLLECTION WS-MH-WIRE-132 is a vinyl-coated galvanized aircraft cable rated for demanding rigging, lifting, and tensioning applications. The cable features a 7 x 7 strand core construction with a bare diameter of 3/32 inches and an overall coated diameter of 3/16 inches, delivering a breaking strength of 920 pounds. The galvanized steel strands resist corrosion in both indoor and outdoor environments, while the vinyl coating adds surface protection and reduces abrasion against adjacent components. This cable is a standard choice for contractors, riggers, and maintenance technicians working across a wide range of industrial and construction applications.

This aircraft cable is suited for general-purpose wire rope applications including safety rigging, guard rail systems, overhead support lines, equipment tie-downs, and mechanical control linkages. It is commonly installed in commercial construction, industrial facilities, and maintenance environments where a compact, corrosion-resistant flexible cable with moderate breaking strength is required. The vinyl coating makes it appropriate for use in areas where direct metal contact must be minimized.

Key Features

• 920-pound breaking strength for reliable load-bearing performance
• 7 x 7 strand core construction provides flexibility and fatigue resistance
• Bare diameter of 3/32 inches with vinyl-coated outer diameter of 3/16 inches
• Galvanized finish for corrosion resistance in outdoor and humid environments
• Vinyl coating protects adjacent surfaces and reduces cable abrasion

Compatibility

Designed as a general-purpose aircraft cable suitable for standard 3/16-inch cable fittings, ferrules, swage terminals, and wire rope clips rated for 7 x 7 strand construction.

Installation Notes

Installation should be performed by a qualified rigger or contractor familiar with wire rope systems and applicable load ratings. Always de-energize or unload the system before cutting or terminating cable. Use proper swaging tools or cable clamps rated for 7 x 7 strand cable at this diameter, and follow the hardware manufacturer specifications for termination. Follow applicable ASME, OSHA, and local rigging codes when using this cable in overhead or load-bearing applications.
