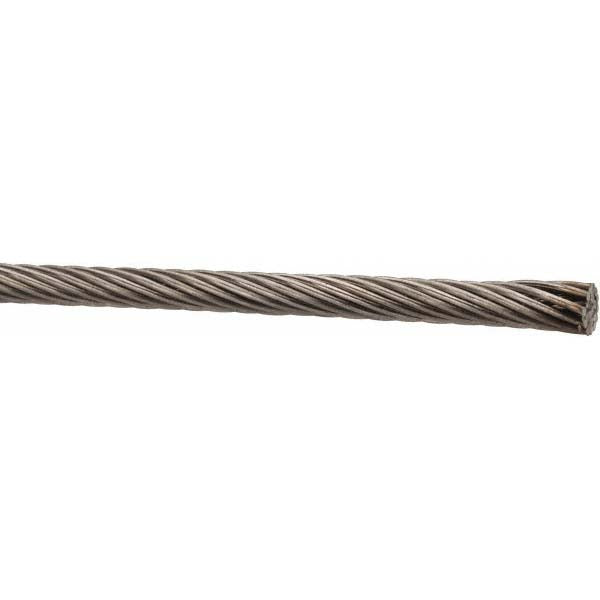

Value Collection WS-MH-WIRE-093 Aircraft Cable 3/16 in

Product Description

The VALUE COLLECTION WS-MH-WIRE-093 is a 3/16-inch diameter stainless steel aircraft cable sold in 1-foot increments from a 1,000-foot coil. It uses a 1x19 single-strand construction, meaning 19 individual wires are twisted into a single strand for a rigid, low-stretch cable suitable for tension and control applications. The uncoated stainless steel finish provides corrosion resistance in demanding environments. With a breaking strength of 4,700 pounds, this cable is rated for structural and mechanical loads common in rigging, safety, and support applications. Minimum order is 50 feet.

This aircraft cable is used across a broad range of trade and industrial applications including HVAC equipment tie-downs, mechanical rigging, safety cables, tension rods, and structural support systems. The 1x19 strand configuration makes it well suited for fixed runs where flexibility is less critical than tensile strength and resistance to elongation. It is commonly installed by mechanical contractors, riggers, and facilities maintenance professionals in both commercial and light industrial settings.

Key Features

• 4,700-pound breaking strength for high-load tension applications
• 3/16-inch diameter stainless steel construction for corrosion resistance
• 1x19 single-strand configuration provides high stiffness and low stretch
• Uncoated finish allows direct use with standard cable fittings and swage terminals
• Sold in 1-foot increments from a 1,000-foot coil for job-specific cutting
• Minimum order quantity of 50 feet

Compatibility

Designed as a general-purpose 3/16-inch stainless steel aircraft cable compatible with standard 3/16-inch cable fittings, swage terminals, and cable clamps used in rigging, mechanical, and structural support applications.

Installation Notes

Installation should be performed by qualified mechanical contractors or riggers familiar with cable tension and termination requirements. Power down or de-energize any associated mechanical systems before cutting or terminating cable. Use proper swaging tools or mechanical clamps rated for 3/16-inch cable to form secure end connections. Follow applicable ASME, OSHA, or local rigging codes when determining safe working load limits based on the rated breaking strength.
