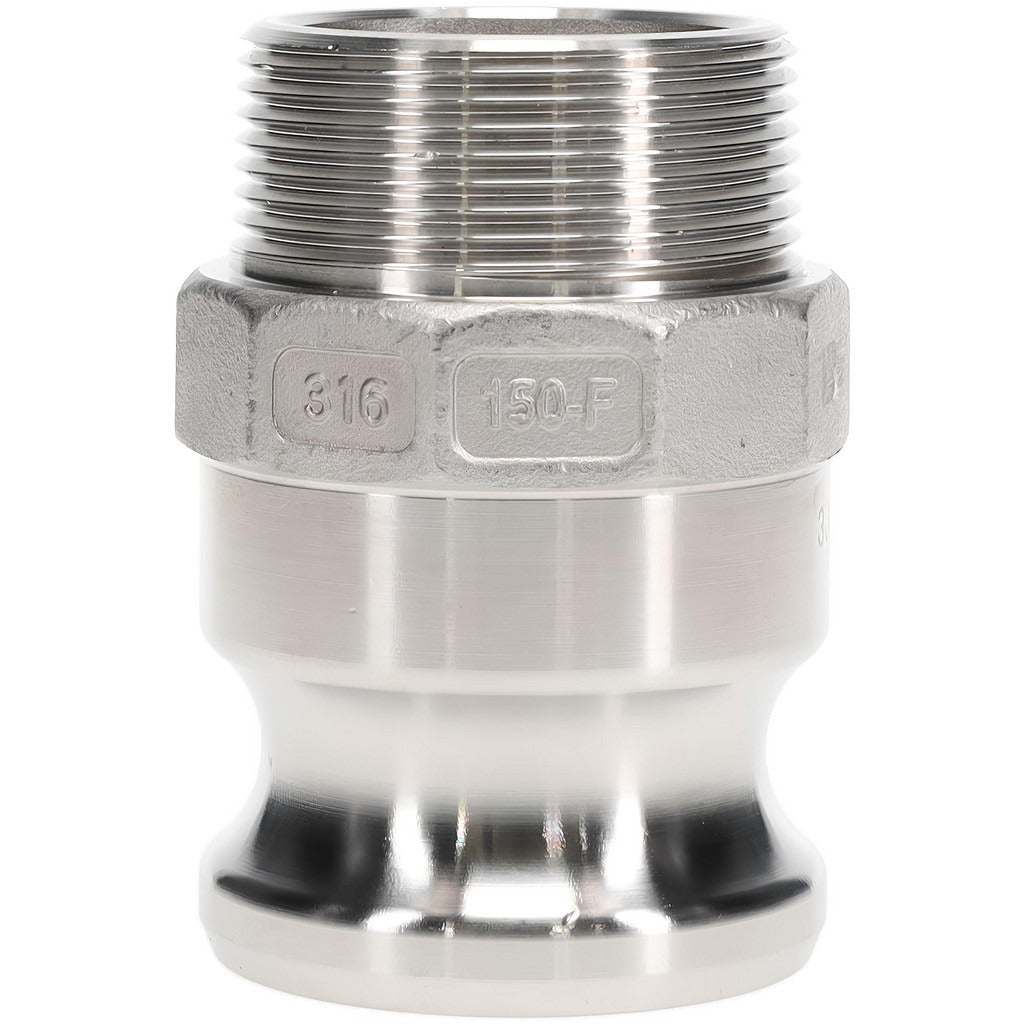

Value Collection WS-HF-CAM-126 Cam Groove Coupling 1-1/2 in

Product Description

The VALUE COLLECTION WS-HF-CAM-126 is a Part F cam and groove coupling designed for fast, tool-free hose and pipe connections in fluid transfer systems. Machined from stainless steel, this male adapter features a 1-1/2 inch MNPT threaded end on one side and a grooved cam coupling on the other. It handles pressures up to 1,000 psi, making it suitable for demanding liquid handling applications. Licensed plumbers, pipefitters, and industrial maintenance technicians install this fitting where quick-disconnect capability is required without sacrificing pressure rating or corrosion resistance.

This coupling is used in agricultural irrigation, chemical transfer, fuel handling, and industrial process piping where a threaded male NPT connection must mate with a standard cam and groove assembly. The Part F designation identifies it as a male adapter: the NPT threaded end connects to a fixed pipe or hose barb, while the grooved cam body accepts a standard Part C female coupler. It is suited for both above-ground and transfer-hose applications where stainless steel is specified for corrosion resistance or fluid compatibility.

Key Features

• Part F cam and groove configuration: male NPT thread to grooved cam body
• 1-1/2 inch MNPT thread for direct connection to standard pipe or fittings
• 1,000 psi maximum working pressure
• Stainless steel construction for corrosion resistance in chemical and fluid transfer service
• Tool-free cam lever connection for fast assembly and disconnection

Compatibility

Designed as an OEM-style replacement or add-on component compatible with standard cam and groove (cam and groove) systems using Part C female couplers in 1-1/2 inch size, conforming to MIL-C-27487 and TTMA RP No. 70 dimensional standards.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified industrial maintenance personnel. Before installation, depressurize and drain the line completely. Apply thread sealant tape or compound to the MNPT threads per applicable IPC or IFGC guidelines before threading into the mating female fitting. Verify that the cam arms are fully seated and locked before restoring system pressure.
