Value Collection WS-HF-CAM-119 Cam Groove Coupling 1-1/4in

Product Description

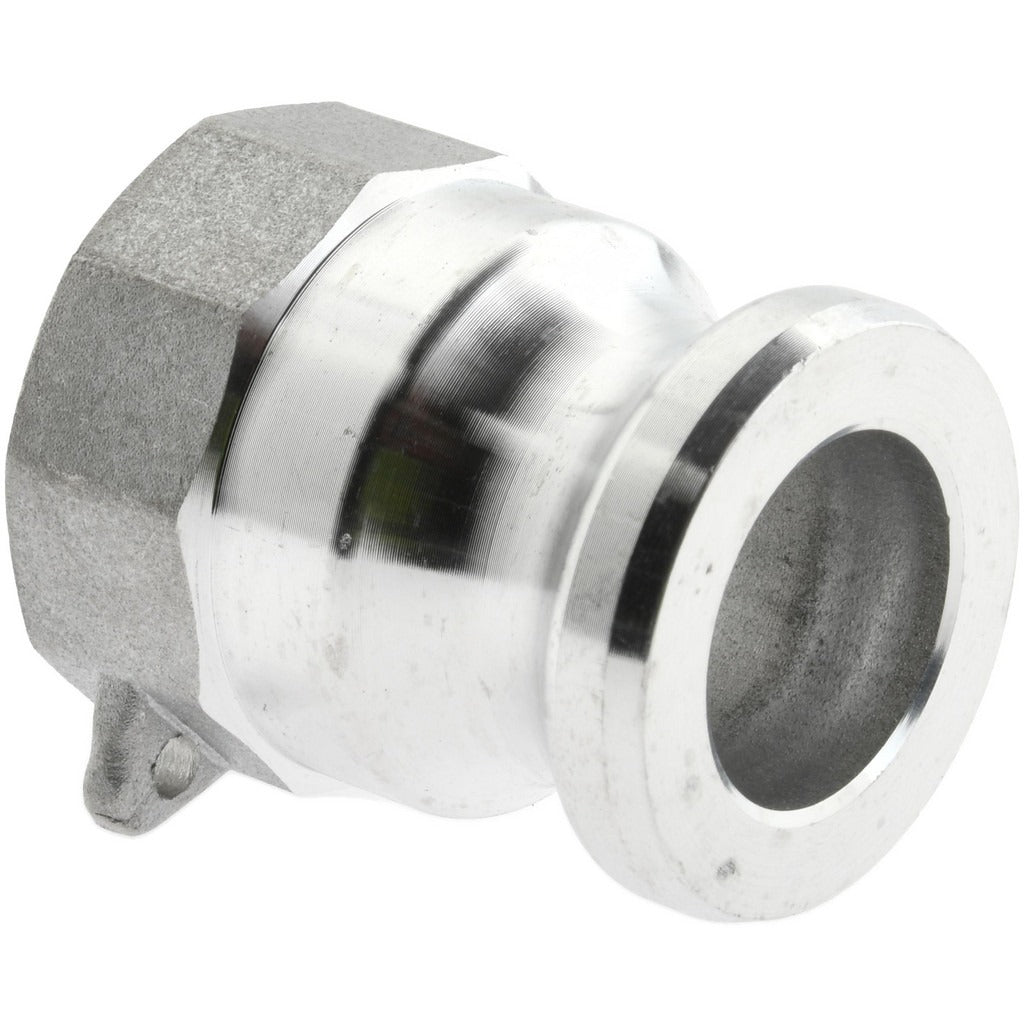

The VALUE COLLECTION WS-HF-CAM-119 is a Part A cam groove coupling designed for fast, tool-free hose-to-pipe connections in fluid transfer applications. Machined from aluminum, this male adapter features a female NPT (FNPT) threaded end on one side and cam groove arms on the other, allowing it to mate with a corresponding Part B female coupler. It is rated to 1,000 psi maximum working pressure, making it suitable for demanding industrial and agricultural fluid handling lines. The 1-1/4 inch thread size fits standard pipe and hose assemblies. Plumbers, pipefitters, and industrial maintenance technicians install this type of fitting in a wide range of liquid transfer systems.

This coupling is commonly used in irrigation, industrial fluid transfer, petroleum handling, water delivery, and agricultural spray systems where quick-connect hose fittings are required. The Part A male adapter designation means this fitting threads into a female NPT port and then engages a matching Part B female coupler to complete the connection. It is well suited for both permanent installations and frequently disconnected service lines where speed and leak resistance are priorities.

Key Features

• Part A male adapter configuration with female NPT thread for direct pipe engagement
• Aluminum construction offers corrosion resistance and reduced weight compared to steel
• 1,000 psi maximum working pressure rating suitable for high-demand fluid transfer
• 1-1/4 inch thread size matches standard NPT pipe and hose fittings
• Cam groove design enables fast, tool-free coupling and decoupling with a compatible Part B female coupler

Compatibility

Designed as an OEM-style replacement or new-installation cam groove fitting compatible with standard Part B female cam groove couplers in 1-1/4 inch NPT configurations across industrial, agricultural, and fluid transfer applications.

Installation Notes

Installation is typically performed by pipefitters, plumbers, or industrial maintenance technicians. Before servicing or replacing any cam groove fitting, depressurize and drain the line completely to prevent injury or spillage. Apply appropriate thread sealant or PTFE tape to the FNPT threads in accordance with the applicable piping code. Verify the mating Part B coupler is clean and that the cam arms seat fully before pressurizing the system.
