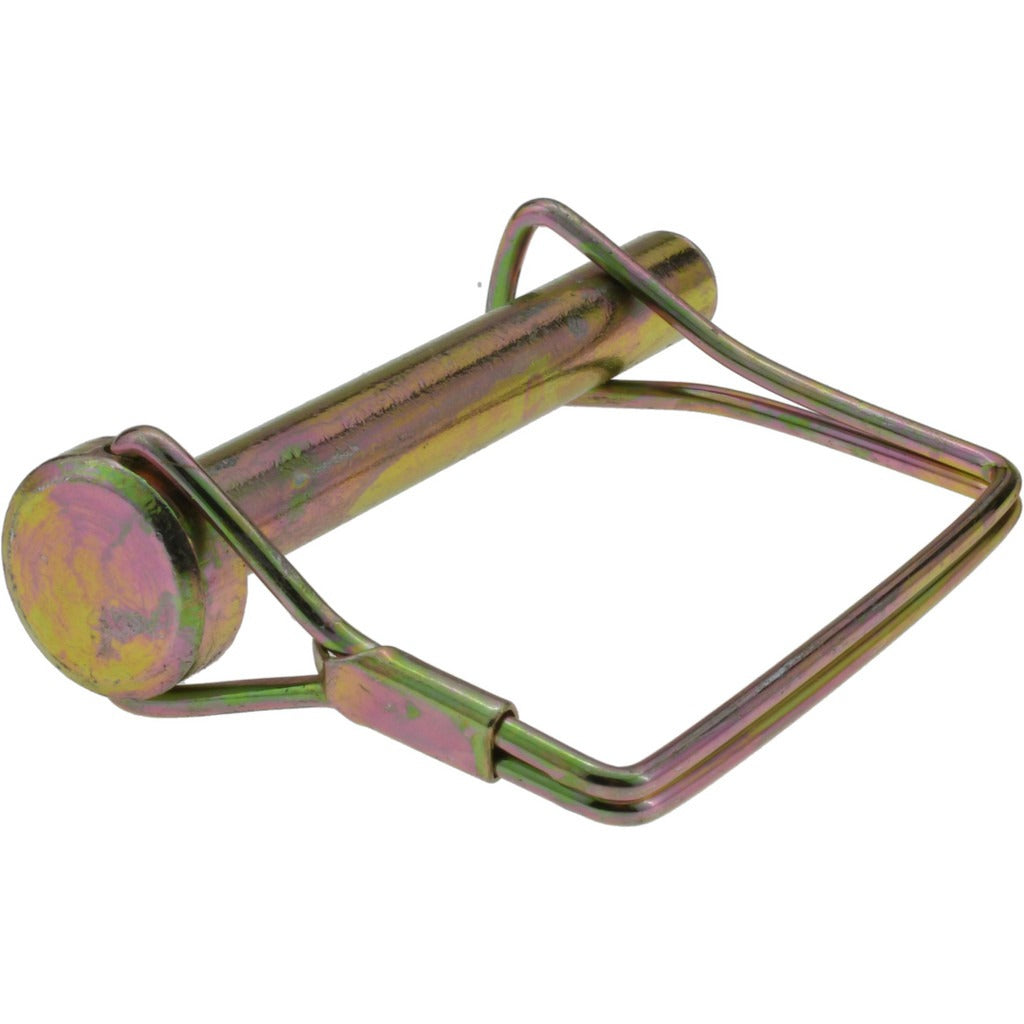

Value Collection WL6X2250SQ-22 Snap Locking Pin 3/8 in

Product Description

The VALUE COLLECTION WL6X2250SQ-22 is a standard snap locking pin designed for quick, tool-free fastening in mechanical assemblies, fixtures, and equipment. The pin body is steel grade 1010 with a zinc yellow dichromate plated finish that provides corrosion resistance in general industrial environments. It measures 3 inches in overall length with 2.25 inches of usable length and a nominal pin diameter of 3/8 inch (0.3630 to 0.3750 inches). A double wire spring retainer with a square retainer shape locks the pin in place automatically on insertion and releases cleanly on pull. Total weight is 0.2 pounds. Maintenance technicians, assembly workers, and field service professionals install this type of pin where fast removal and reinstallation are required.

This snap locking pin suits light to medium-duty mechanical assemblies where a positive, reusable fastening solution is needed without threading or tooling. Typical applications include clevis connections, linkage assemblies, jigs, fixtures, machinery guards, and agricultural or industrial equipment panels. The standard locking style and square double wire retainer make it a straightforward drop-in fastener for designs that call for a 3/8 inch locking pin. The zinc yellow dichromate finish is appropriate for indoor and sheltered outdoor use where moderate corrosion resistance is acceptable.

Key Features

• Pin diameter range of 0.3630 to 0.3750 inches for consistent fitment in standard 3/8 inch clearance holes
• Double wire spring retainer with square shape provides automatic positive locking on insertion
• Steel grade 1010 pin body offers reliable strength for light to medium mechanical loads
• Zinc yellow dichromate plated finish adds corrosion resistance in general-use environments
• 2.25 inches of usable length accommodates typical panel and linkage thicknesses
• Tool-free installation and removal suited to frequent service or adjustment cycles

Compatibility

Designed as a standard 3/8 inch snap locking pin for use in mechanical assemblies, fixtures, and equipment that accept a double wire retainer style locking pin with a square retainer shape.

Installation Notes

De-energize or lock out all equipment before removing or installing fasteners in moving assemblies. Verify the mating hole diameter and panel thickness against the pin diameter range and usable length before installation. Insert the pin until the retainer wire snaps fully into the groove. Inspect the retainer wire for deformation or fatigue before reuse in critical applications.
