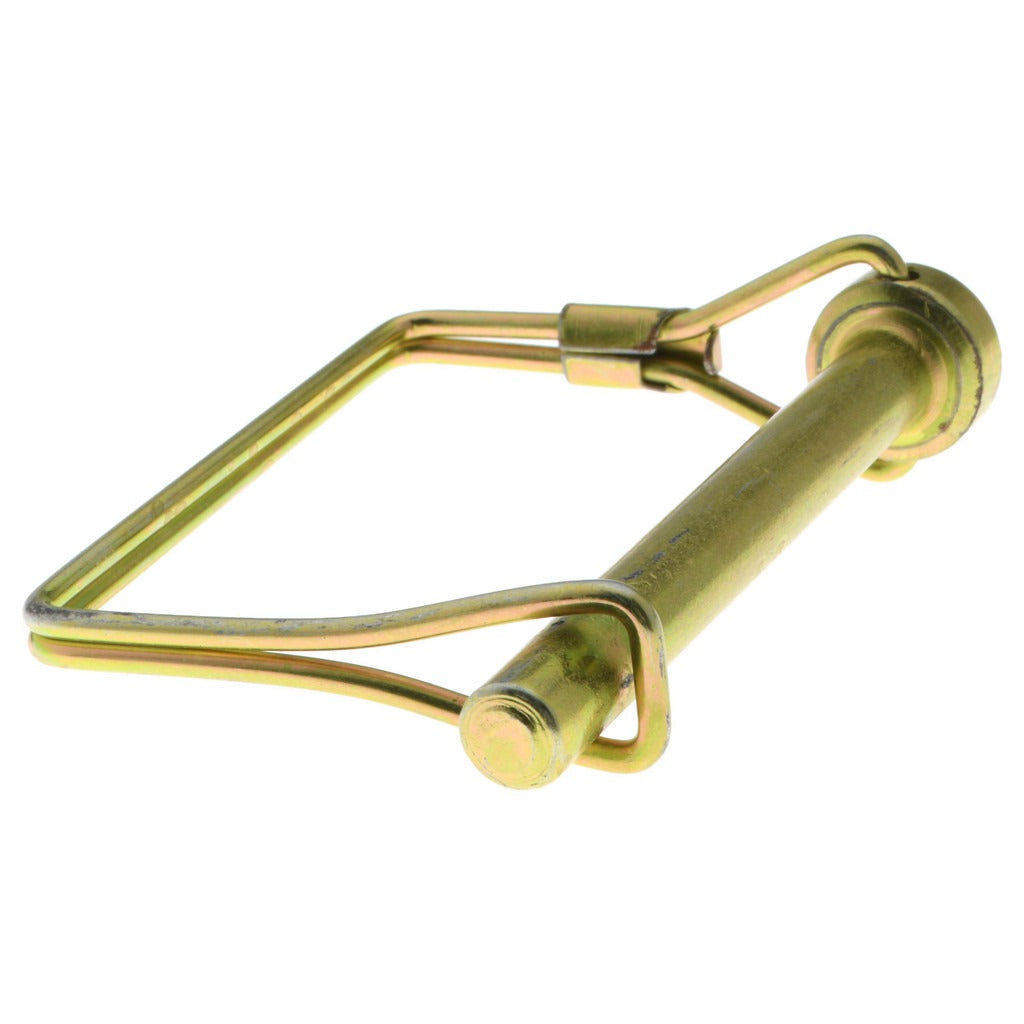

Value Collection WL5X2375SQ-22 Snap Locking Pin 5/16 in

Product Description

The VALUE COLLECTION WL5X2375SQ-22 is a standard snap locking pin with a double wire spring retainer, designed for quick-release fastening applications in industrial and mechanical assemblies. The pin measures 0.3120 inches maximum in diameter (nominal 5/16 inch) with an overall length of 3 inches and a usable length of 2-3/8 inches. Constructed from 1010 steel with a zinc yellow dichromate plated finish, it resists corrosion in light-duty service environments. The square retainer shape and double wire design provide positive retention and allow tool-free removal. Licensed tradespeople and assembly technicians working with clevis pins, linkages, and quick-connect mechanisms will find this pin a reliable fastening component.

This snap locking pin is suited for use in general industrial, agricultural, and mechanical maintenance settings where a removable, self-retaining pin is required. It fits applications involving hinges, yokes, levers, and clevis assemblies where repeated connect and disconnect cycles are expected. The zinc yellow dichromate plating makes it appropriate for indoor and mildly corrosive environments. It is sold individually but requires a minimum order quantity of 5 units per purchase.

Key Features

• Nominal 5/16 inch pin diameter with tolerance range of 0.3000 to 0.3120 inches
• 3 inch overall length with 2-3/8 inch usable length
• Double wire spring retainer in a square retainer shape for secure locking
• 1010 steel construction with zinc yellow dichromate plated finish for corrosion resistance
• Spring wire retainer diameter ranging from 0.0900 to 0.0940 inches
• Tool-free installation and removal for fast service access

Compatibility

Designed as a standard snap locking pin for use in clevis, yoke, lever, and linkage assemblies requiring a 5/16 inch nominal diameter removable retaining pin.

Installation Notes

Installation and removal require no specialized tools — compress the retainer wire and slide the pin into the aligned hole until the retainer seats positively. Verify the mating hole diameter falls within the 0.3000 to 0.3120 inch tolerance range before installing. Inspect the spring wire retainer for deformation or fatigue before reuse. Depressurize or de-energize any mechanism before removing or replacing locking pins to prevent unintended movement.
