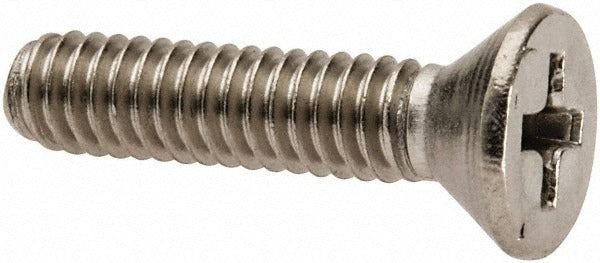

Value Collection W57432PS 8-32 X 3/4 in Flat Head Phillips Screw

Product Description

The VALUE COLLECTION W57432PS is a flat head Phillips machine screw designed for general mechanical fastening in trade and industrial applications. Sized at 8-32 x 3/4 inches overall length, it features a Unified National Coarse (UNC) thread form and is manufactured from Grade 316 stainless steel with a bright, uncoated finish. Grade 316 stainless offers strong resistance to corrosion and chloride environments, making this screw suitable for applications where moisture, chemicals, or outdoor exposure are factors. It is installed using a standard Phillips driver and seats flush when driven into a countersunk hole.

This screw is used across a wide range of trade applications including HVAC equipment panels, electrical enclosures, plumbing fixture mounting, and light structural assembly. The flat head profile allows the fastener to sit flush with or below the surface of the mating material, which is important in applications where protrusion would interfere with covers, panels, or adjacent components. Sold individually as a single piece, with a minimum order quantity of 50 units per order.

Key Features

• Grade 316 stainless steel construction for corrosion resistance in wet and chemical environments
• 8-32 UNC thread form for compatibility with standard tapped holes and hex nuts
• Flat head design seats flush in countersunk holes, eliminating surface protrusion
• Phillips drive accepts standard No. 2 Phillips bits and screwdrivers
• Bright uncoated finish maintains dimensional accuracy and avoids coating thickness variation
• 3/4 inch overall length equals 3/4 inch length under head for straightforward depth planning

Compatibility

Designed as a standard 8-32 UNC machine screw for use in any application requiring a flat head Phillips fastener in that thread size and length. Suitable for use with pre-tapped holes, standard hex nuts, and nylon insert lock nuts in the 8-32 thread specification.

Installation Notes

Install using a No. 2 Phillips screwdriver or bit. Countersink the mating material to the appropriate angle to ensure the flat head seats fully flush. When installing in electrical enclosures or energized equipment, de-energize and lock out the circuit before beginning fastener work per NFPA 70E guidelines. Avoid over-torquing stainless steel fasteners, as galling can occur; apply an anti-seize compound if repeated removal is anticipated.
