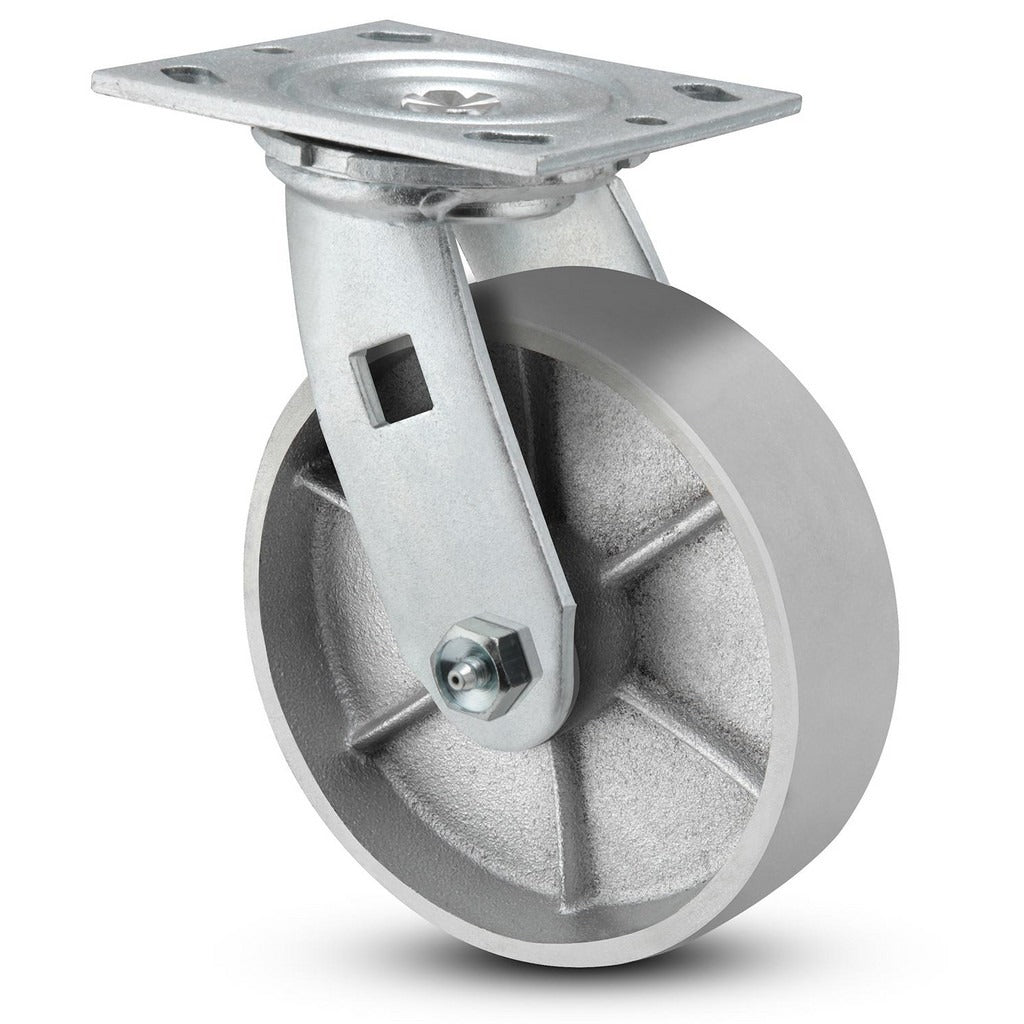

Value Collection VES6X2CIR Swivel Top Plate Caster 1200 Lb

Product Description

The VALUE COLLECTION VES6X2CIR is a swivel top plate caster built around a 6-inch diameter, 2-inch wide semi-steel wheel rated for 1,200 pounds of load capacity. The wheel rides on a plain bearing and is mounted to a stamp-formed steel swivel assembly with a powder-coated finish. The top plate measures 4 inches by 4.5 inches and accepts 3/8-inch attaching bolts. Overall assembled height is 7.5 inches. This caster is suited for industrial and sanitation container applications where heavy loads and durable construction are required.

This caster is designed for use in demanding material-handling environments, including sanitation container duty as specified by its application classification. The swivel configuration allows full 360-degree directional movement, making it appropriate for carts, bins, and rolling equipment that require maneuverability under load. Installation is performed by maintenance technicians and industrial equipment assemblers working with heavy-duty rolling equipment.

Key Features

• 1,200 lb rated load capacity for heavy-duty industrial use
• 6-inch diameter semi-steel wheel with 2-inch width for stability on hard floors
• Swivel design with full 360-degree rotation
• Plain bearing construction, easy to service and replace
• Powder-coated finish provides corrosion resistance
• Stamp-formed steel construction for structural rigidity
• 4 inches by 4.5 inches top plate with 3/8-inch bolt pattern

Compatibility

Designed as an OEM-style replacement or direct-fit swivel top plate caster for sanitation containers and heavy-duty industrial rolling equipment requiring a 6-inch semi-steel wheel with a 4 inches by 4.5 inches top plate mount.

Installation Notes

Installation is performed by securing the top plate to the equipment frame using 3/8-inch fasteners through the four-hole bolt pattern. Ensure the mounting surface is flat and that fasteners are tightened evenly to prevent caster rocking under load. Always verify the combined load rating of all casters on the equipment does not exceed the total distributed weight. Remove the equipment from service before replacing casters to prevent injury.
