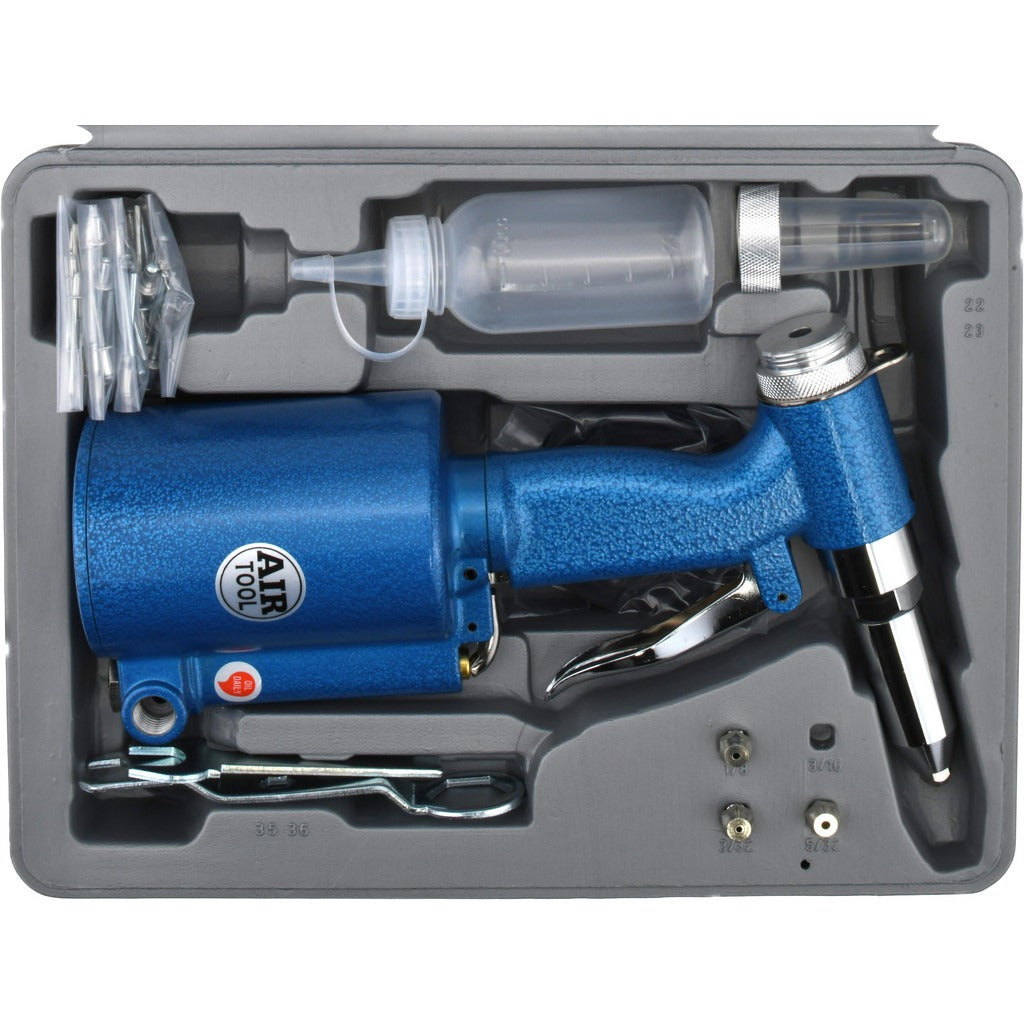

Value Collection VC-PT-0810KSG Air Rivet Tool

Product Description

The VALUE COLLECTION VC-PT-0810KSG is a pneumatic air rivet tool designed for fastening blind rivets in metal fabrication, HVAC ductwork assembly, sheet metal work, and general mechanical installations. It delivers 1940 pounds of pull force through a 0.56-inch stroke, providing enough power to set rivets up to 3/16 inch in diameter including steel rivets. The tool runs on a 1/4 inch NPT air inlet and consumes 4 CFM at operating pressure. At 11.5 inches overall length and 6.62 pounds, it is sized for production use and extended service work. Included nosepieces cover 1/8, 3/32, and 5/32 inch rivet shanks, making it ready to use across common rivet sizes without additional purchases.

This rivet tool is suited for residential and commercial sheet metal work, mechanical room fabrication, HVAC equipment installations, and structural assembly tasks where blind riveting is required. The riveting hammer action type makes it appropriate for high-cycle production environments as well as field service applications. Technicians working with ductwork flanges, access panels, equipment housings, and brackets will find the included nosepiece set covers most standard field rivet diameters. A safety cap and spanner gauge are included to support on-site tool maintenance.

Key Features

• 1940 pounds of pull force for reliable setting of steel and standard rivets up to 3/16 inch diameter
• 0.56-inch stroke length for consistent rivet pull and mandrel ejection
• 4 CFM air consumption with 1/4 inch NPT inlet compatible with standard shop air lines
• 11.5-inch overall length balances reach and control in tight installation spaces
• Includes 1/8, 3/32, and 5/32 inch nosepieces plus safety cap, spanner, and spanner gauge
• Riveting hammer action type suited for repetitive, high-cycle fastening work

Compatibility

Designed as an OEM-style pneumatic rivet tool compatible with standard blind rivets up to 3/16 inch in diameter, including steel rivet stock, using the included nosepiece set.

Installation Notes

Connect to a regulated compressed air supply through a 1/4 inch NPT fitting; verify supply pressure matches tool operating requirements before use. Always install the appropriate nosepiece for the rivet shank diameter being set and confirm the safety cap is seated when the tool is not in active use. Disconnect the air supply before changing nosepieces or performing any tool maintenance. Follow applicable OSHA and shop safety guidelines for pneumatic tool operation, including eye protection when setting rivets.
