Value Collection V3-30-120-2 Swivel Top Plate Caster 275 Lb

Product Description

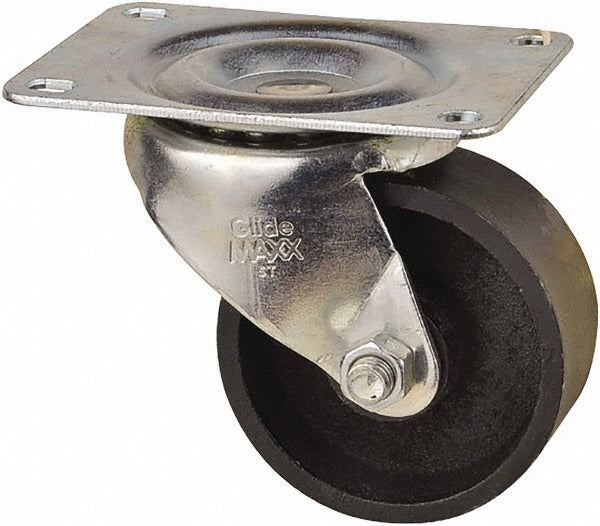

The VALUE COLLECTION V3-30-120-2 is a swivel top plate caster built for demanding industrial and commercial material-handling applications. Fitted with a 3-inch diameter cast iron wheel measuring 1-1/4 inches wide, it carries a rated load capacity of 275 pounds per caster. The swivel head mounts via a top plate measuring 3-1/8 x 4-1/8 inches, allowing bolt-down installation to carts, racks, and dollies. Construction is stamp-formed steel with a zinc finish on both the wheel and the hardware. A self-lubricating plain bearing keeps the wheel turning without routine greasing, reducing maintenance on equipment that moves frequently through a facility.

This caster is suited for light-to-medium duty rolling equipment in commercial kitchens, warehouses, and retail environments. Typical applications include dollies, display racks, part bins, bakery racks, and portable storage racks. The cast iron wheel handles hard, smooth floor surfaces and tolerates the repetitive loading cycles common in food service and light manufacturing settings. The top plate mount makes it a straightforward bolt-on replacement or new-build option for fabricated carts and shelving units.

Key Features

• 275-pound load capacity per caster for medium-duty rolling equipment
• Cast iron wheel resists wear on hard floor surfaces
• Self-lubricating plain bearing requires no routine grease maintenance
• Stamp-formed construction with zinc finish for corrosion resistance
• 3-1/8 x 4-1/8 inch top plate for standard bolt-down mounting
• Swivel action allows full 360-degree directional movement

Compatibility

Designed as a top plate swivel caster for dollies, display racks, part bins, bakery racks, and portable storage racks requiring a 3-inch cast iron wheel with a 3-1/8 x 4-1/8 inch mounting plate.

Installation Notes

Installation is typically performed by maintenance technicians or equipment fabricators using standard hand tools. Remove all load from the cart or rack before replacing or installing casters. Secure all four top plate bolts evenly and verify the swivel head rotates freely before returning the equipment to service. Confirm the combined caster load rating meets or exceeds the total loaded weight of the application before use.
