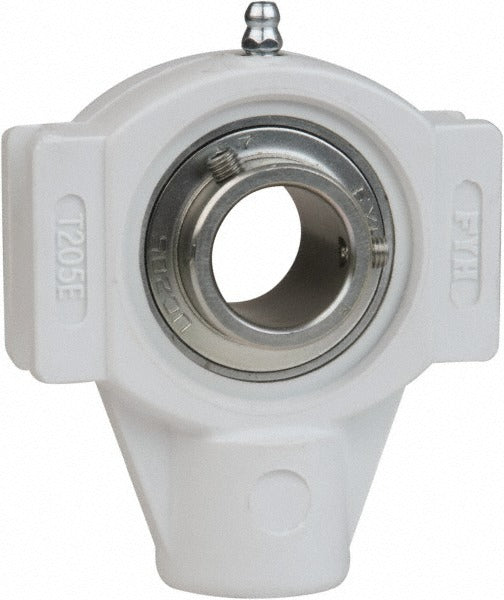

Value Collection UCT20516ES7PL Take Up Unit 1 Inch Bore

Product Description

The VALUE COLLECTION UCT20516ES7PL is a take up unit bearing assembly designed for use in conveyor systems, material handling equipment, and light industrial machinery where shaft positioning and tensioning adjustments are required. The unit features a thermoplastic housing paired with a zinc chromate plated bearing insert, offering corrosion resistance in moderately demanding environments. It accepts a 1 inch bore shaft and spans 3.89 inches overall in length with a 3.5 inch overall height. Static load capacity is rated at 1,764 pounds and dynamic load capacity at 3,147 pounds, making it suitable for moderate-duty tensioning applications. Installation is straightforward and does not require specialized tooling beyond standard hand tools.

This take up unit is suited for residential and light commercial material handling setups, including conveyor tensioning frames, packaging lines, and similar equipment requiring periodic belt or chain slack adjustment. The sliding take up frame design allows the installer to shift bearing position along a mounting slot to maintain proper drive tension. It is typically installed by maintenance technicians or mechanical contractors working on conveyor or drive system assemblies. No specific OEM compatible model numbers were provided with this listing.

Key Features

• 1 inch bore diameter for standard shaft fitment
• Thermoplastic housing resists corrosion in moderate environments
• Zinc chromate plated bearing insert for added corrosion protection
• 1,764 pound static load capacity and 3,147 pound dynamic load capacity
• Compact profile: 3.89 inches overall length, 3.5 inches overall height
• Sold individually, minimum order quantity of 1

Compatibility

Designed as a standard take up unit replacement for light to moderate-duty conveyor and drive tensioning systems requiring a 1 inch bore shaft interface. No specific OEM model or system compatibility data was provided with this part.

Installation Notes

Installation should be performed by a qualified mechanical technician. Disengage and lock out all power to the drive system before removing or installing any bearing components. The take up unit mounts to a slotted frame; ensure mounting fasteners are tightened evenly and that the shaft is properly aligned before returning the system to service. Do not exceed the rated static or dynamic load limits for this assembly.
