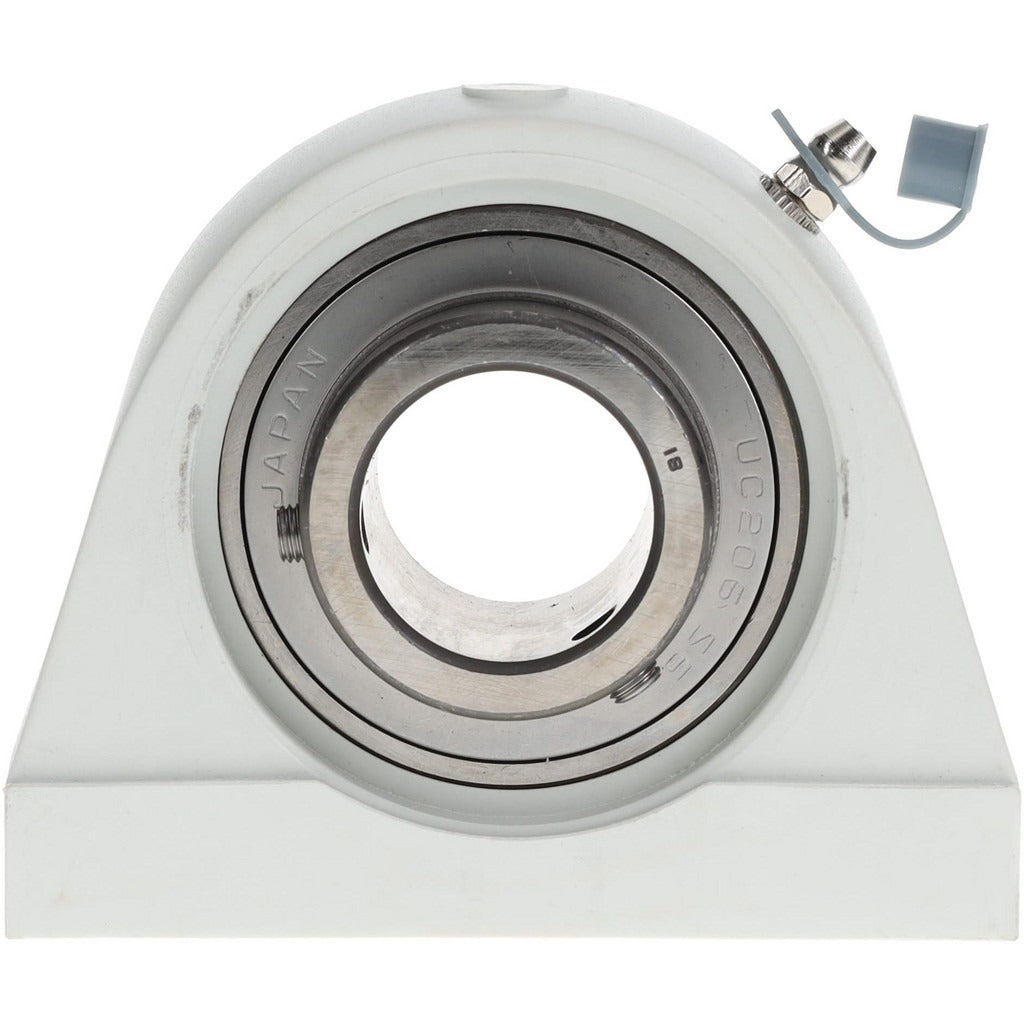

Value Collection UCPAN20618S6PL Pillow Block Tap Base

Product Description

The VALUE COLLECTION UCPAN20618S6PL is a stainless steel pillow block tap base designed to support rotating shafts in stationary mounting applications. It accepts a 1-1/8 inch bore and delivers a static load capacity of 2,540 pounds and a dynamic load capacity of 4,383 pounds, making it a capable choice for moderate-to-heavy duty mechanical assemblies. The overall length is 1.5 inches and the overall height is 3-7/32 inches. Maintenance technicians and mechanical installers fit this type of bearing housing to equipment frames where a bolted, tap-base mount is required in place of a standard through-bolt pillow block configuration.

This pillow block tap base is suited for industrial and commercial machinery applications where corrosion resistance is a priority. The stainless steel construction makes it appropriate for wash-down environments, food-processing adjacent equipment, and outdoor mechanical systems. Mounting hole center-to-center distance is 3 inches, which governs frame drilling layout during installation. It is sold individually and is compatible with standard 1-1/8 inch shaft diameters commonly found in conveyor, fan, pump, and drive assemblies.

Key Features

• Stainless steel construction provides corrosion resistance in harsh or wet environments
• 2,540 pound static load capacity and 4,383 pound dynamic load capacity for moderate-to-heavy duty use
• 1-1/8 inch bore accommodates standard shaft sizes in fan, pump, and conveyor applications
• 3-inch mounting hole center-to-center distance simplifies frame layout and drilling
• Tap base design allows direct bolt engagement without through-bolt access to the rear of the mounting surface
• Outside diameter of 2.441 inches with an overall length of 1.5 inches and overall height of 3-7/32 inches

Compatibility

Designed as a replacement or new-installation pillow block tap base for equipment using a 1-1/8 inch shaft diameter. No specific OEM model compatibility was provided in the product data.

Installation Notes

Installation is performed by qualified mechanical or maintenance technicians. De-energize and lock out all equipment before fitting or removing bearing housings. Ensure the mounting surface is flat and that mounting hole spacing matches the 3-inch center-to-center dimension before drilling. Verify shaft alignment after securing the housing to prevent premature bearing wear.
