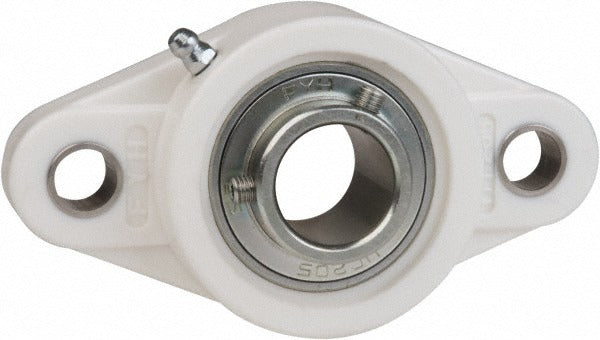

Value Collection UCFL20516ES7PL 2-bolt Flange Mounted Bearing

Product Description

The VALUE COLLECTION UCFL20516ES7PL is a 2-bolt flange mounted bearing designed for shaft support applications in light industrial, agricultural, and mechanical drive systems. Built with a thermoplastic housing, this bearing unit accepts a 1-inch inner diameter shaft and provides a static load capacity of 1,764 pounds and a dynamic load capacity of 3,147 pounds. The overall assembly measures 5.16 inches in length and 1.41 inches in overall height. The flange-mount configuration allows direct surface mounting to frames, panels, or equipment housings, making installation straightforward for millwrights, maintenance technicians, and equipment service professionals.

This bearing unit is suited for use in conveyor systems, agricultural equipment, light manufacturing machinery, and general power transmission applications. The 2-bolt flange design allows mounting to flat vertical or horizontal surfaces where shaft alignment and rigid support are required. The thermoplastic housing offers corrosion resistance in environments where moisture or mild chemical exposure is a factor. This unit ships individually and is appropriate for single-shaft replacement or new assembly builds.

Key Features

• 1-inch bore inner diameter for standard shaft fitment
• Static load capacity of 1,764 pounds and dynamic load capacity of 3,147 pounds
• Thermoplastic housing for corrosion resistance in damp or mildly corrosive environments
• 2-bolt flange mount with 3.91-inch center-to-center mounting hole spacing (3-57/64 inches)
• Base-to-center height of 0.625 inches (5/8 inch) for consistent shaft centerline alignment
• Overall length of 5.16 inches and overall height of 1.41 inches for compact footprint

Compatibility

Designed as an OEM-style replacement or service bearing for equipment using 1-inch bore, 2-bolt flange mounted bearing units in light industrial and agricultural power transmission applications.

Installation Notes

Installation is typically performed by a millwright or qualified maintenance technician. Before replacing or installing this bearing, de-energize all connected equipment and lock out or tag out the drive system per applicable safety procedures. Ensure the mounting surface is flat and clean before securing the flange bolts, and verify shaft alignment before final fastening to avoid premature wear. Do not exceed the rated static or dynamic load capacities for the application.
