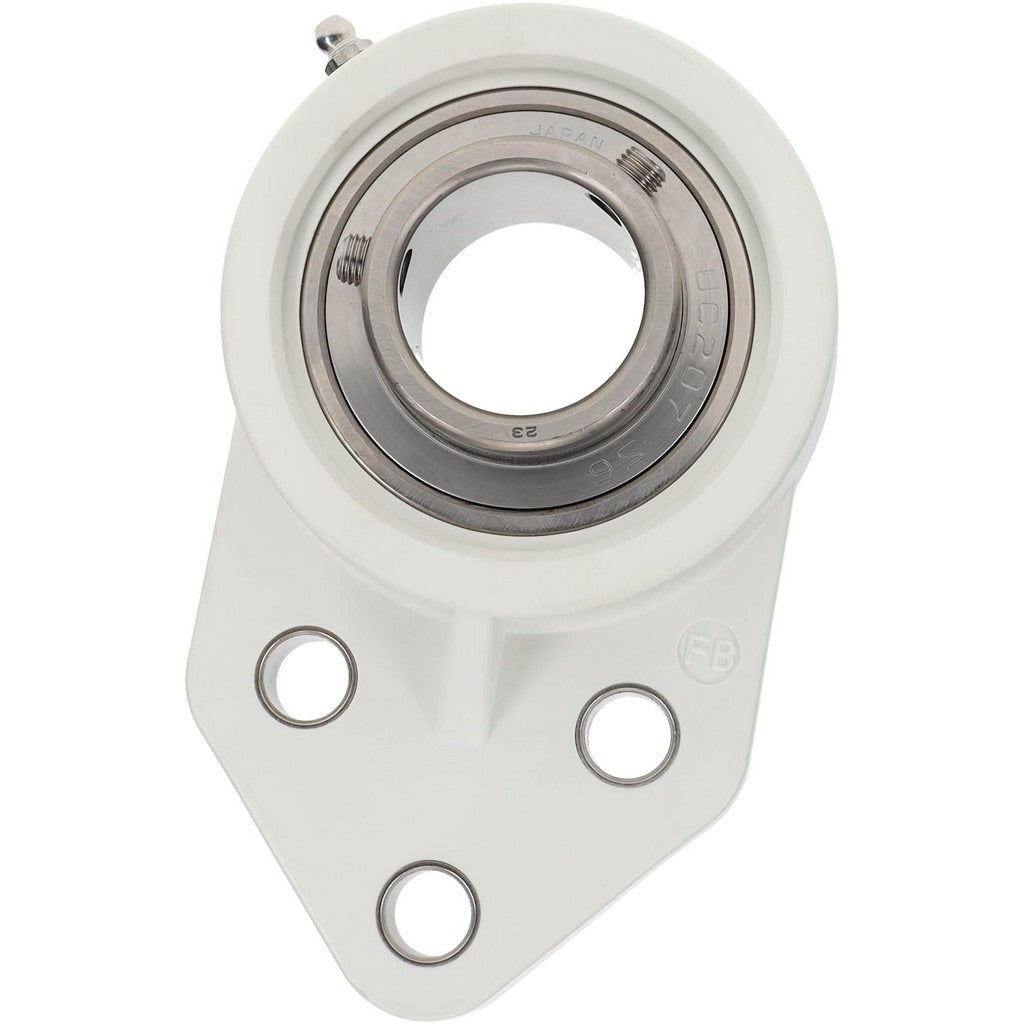

Value Collection UCFB20723S6PL 3-bolt Flange Bearing

Product Description

The VALUE COLLECTION UCFB20723S6PL is a 3-bolt flange mounted bearing designed for shaft support applications requiring a rigid, three-point mounting configuration. It features a 1-7/16 inch (1.4375 inch decimal) bore diameter and is constructed from stainless steel, making it suitable for environments where corrosion resistance is a priority. The bearing carries a static load capacity of 3,462 pounds and a dynamic load capacity of 5,777 pounds. With an overall length of 6.1875 inches and an overall height of 5-21/32 inches, this unit is sized for moderate to heavy-duty industrial and commercial installations. It is typically installed by millwrights, maintenance mechanics, or facilities technicians.

This bearing is suited for conveyor systems, agricultural equipment, industrial machinery, and similar shaft-driven applications where a flange-style mount is required. The 3-bolt flange pattern provides stable, balanced mounting on flat surfaces or mounting plates. The stainless steel construction makes it a practical choice for food processing environments, wash-down zones, or outdoor installations where moisture exposure is expected. Bolt holes accept 1/2 inch fasteners, and the 2-inch center-to-center mounting hole spacing simplifies alignment during installation.

Key Features

• 3-bolt flange mount configuration for stable, balanced shaft support
• 1-7/16 inch bore diameter to match standard shaft sizing
• Stainless steel construction for corrosion resistance in wet or harsh environments
• Static load capacity of 3,462 pounds and dynamic load capacity of 5,777 pounds
• Accepts 1/2 inch mounting bolts with 2-inch between-mounting-hole centers
• Overall height of 5-21/32 inches and overall length of 6.1875 inches for straightforward dimensional planning

Compatibility

Designed as an OEM-style replacement or direct-fit flange bearing for industrial and commercial shaft-driven equipment requiring a 1-7/16 inch bore, 3-bolt flange mount configuration.

Installation Notes

Installation should be performed by a qualified millwright or maintenance mechanic. De-energize and lock out all power sources before removing or installing any bearing assembly. Ensure the mounting surface is flat and clean before seating the flange to avoid misalignment under load. Torque mounting fasteners evenly in a cross pattern using appropriately rated 1/2 inch hardware; consult the equipment manufacturer's specifications for final torque values.
