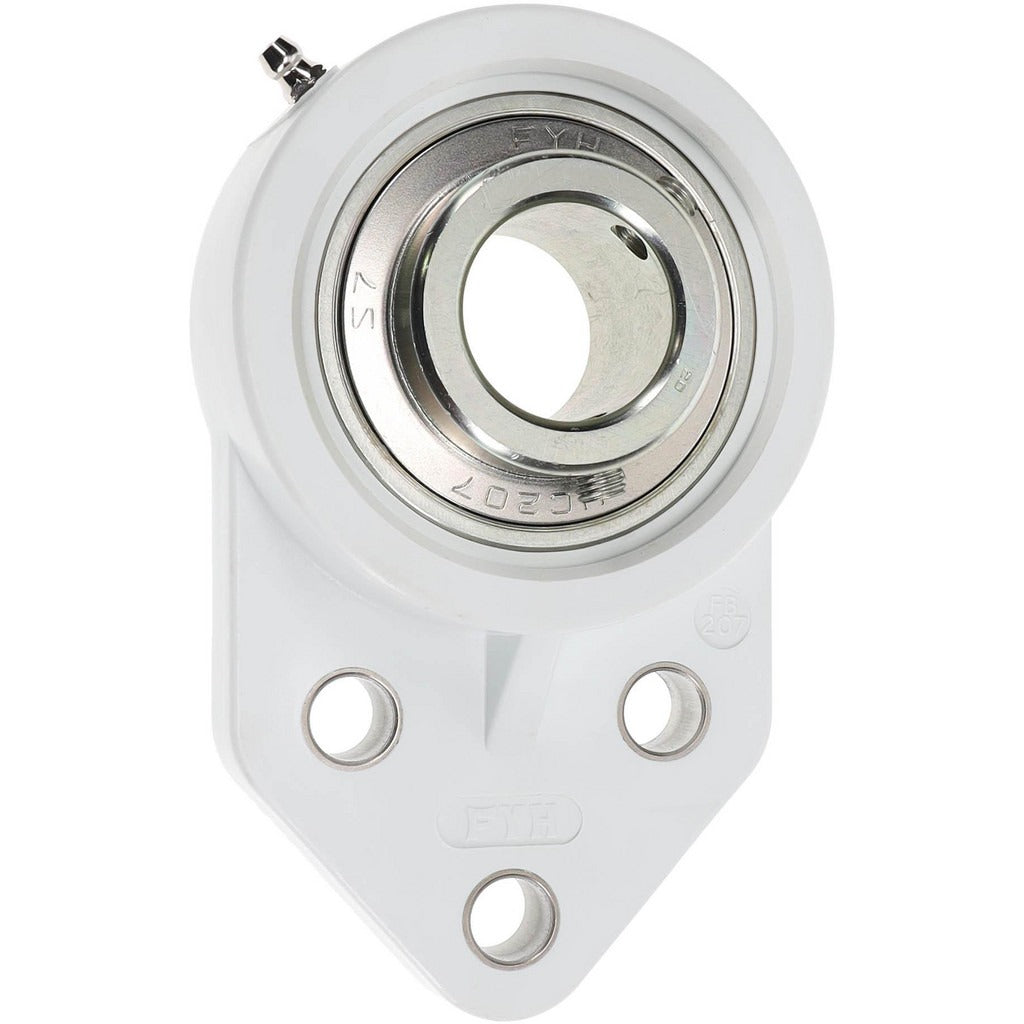

Value Collection UCFB20720S7PL 3 Bolt Flange Bearing

Product Description

The VALUE COLLECTION UCFB20720S7PL is a 3-bolt flange mounted bearing designed for shaft support applications in industrial and mechanical systems. It accepts a 1.25 inch bore with a set screw lock mechanism to secure the shaft in place. The bearing housing is constructed from thermoplastic, keeping overall weight at 1.46 pounds while providing adequate rigidity for moderate-load environments. With a static load capacity of 3,462 pounds and a dynamic load capacity of 5,777 pounds, this unit is rated for demanding rotational and radial loads. Licensed trades and maintenance mechanics install this type of bearing in conveyor systems, fans, blowers, and general power transmission assemblies.

This bearing is suited for light industrial and commercial applications where a compact, bolt-down flange mount is required. The 3-bolt flange pattern provides stable, vibration-resistant mounting to flat surfaces or equipment frames. The set screw lock accommodates standard shaft diameters of 1.25 inches and is a common OEM-style replacement or new-installation choice for rotating equipment in HVAC, manufacturing, and material handling environments.

Key Features

• 1.25 inch bore with set screw lock for positive shaft retention
• 3-bolt flange mount with 2 inch center-to-center mounting hole spacing
• Static load capacity: 3,462 pounds; dynamic load capacity: 5,777 pounds
• Thermoplastic housing construction for corrosion resistance and reduced weight
• Outside diameter of 2.835 inches; overall length of 6.1875 inches
• Base-to-center height of 0.8438 inches for low-profile installation clearance

Compatibility

Designed as an OEM-style replacement or direct-install flange bearing for rotating equipment applications requiring a 1.25 inch bore 3-bolt flange mount configuration.

Installation Notes

Installation is typically performed by a licensed millwright, maintenance mechanic, or HVAC technician. Shut down and lock out all power to the rotating equipment before removing or installing the bearing. Align the shaft carefully before tightening the set screw to avoid premature bearing wear. Verify that mounting surface is flat and that bolt hole spacing matches the equipment frame prior to final installation.
