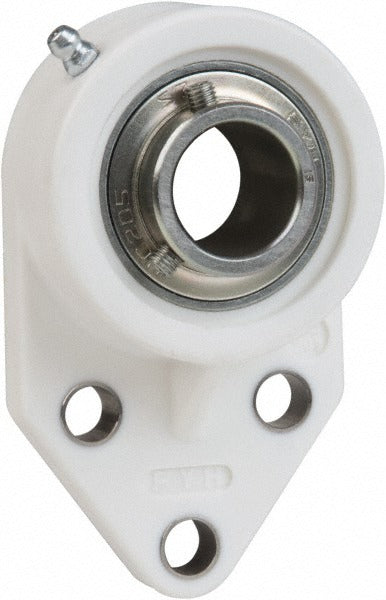

Value Collection UCFB20620S7PL 3-bolt Flange Bearing

Product Description

The VALUE COLLECTION UCFB20620S7PL is a 3-bolt flange mounted bearing designed for shaft support in mechanical and industrial power transmission applications. It accepts a 1-1/4 inch inner diameter shaft and measures 5-15/32 inches overall length by 1-5/8 inches overall height. The bearing carries a static load capacity of 2,540 pounds and a dynamic load capacity of 4,383 pounds, making it suitable for moderate to heavy radial loads in rotating equipment. The housing is constructed from thermoplastic, keeping weight low at 1.04 pounds while providing adequate corrosion resistance in light-duty industrial environments. Licensed HVAC technicians, millwrights, and mechanical contractors commonly install this type of unit bearing in blower assemblies, conveyor systems, and fan shaft applications.

This flange mounted bearing is suited for residential and light commercial mechanical systems where a 3-bolt mounting pattern is required on a flat or near-flat mounting surface. Typical installations include belt-driven blower shafts, agricultural equipment, and general-purpose rotating machinery where shaft alignment and secure flange attachment are priorities. The thermoplastic housing is best used in environments free of heavy chemical exposure or extreme heat. Mounting hole centers are spaced 1-7/8 inches apart, and the base-to-center height measures 49/64 inch (0.7656 inch decimal), allowing for precise shaft positioning during installation.

Key Features

• 1-1/4 inch bore ID for direct shaft fitment without adapter sleeves in most standard applications
• 2,540 pound static load capacity and 4,383 pound dynamic load capacity for moderate to heavy radial loads
• 3-bolt flange mount provides stable, low-profile attachment to equipment frames and housings
• Thermoplastic housing reduces overall unit weight and offers corrosion resistance in non-aggressive environments
• 1-7/8 inch mounting hole center spacing allows compatibility with common 3-bolt bolt patterns
• 49/64 inch base-to-center height (0.7656 inch) enables accurate shaft centerline positioning

Compatibility

Designed as an OEM-style replacement or direct-install flange bearing for mechanical and power transmission assemblies requiring a 1-1/4 inch bore, 3-bolt flange mount configuration.

Installation Notes

Installation is typically performed by a licensed mechanic, millwright, or HVAC technician. Always de-energize and lock out the drive motor before removing or installing shaft bearings. Ensure the mounting surface is flat and clean before seating the flange to prevent misalignment under load. Do not exceed the rated static or dynamic load capacities of this bearing during operation.
