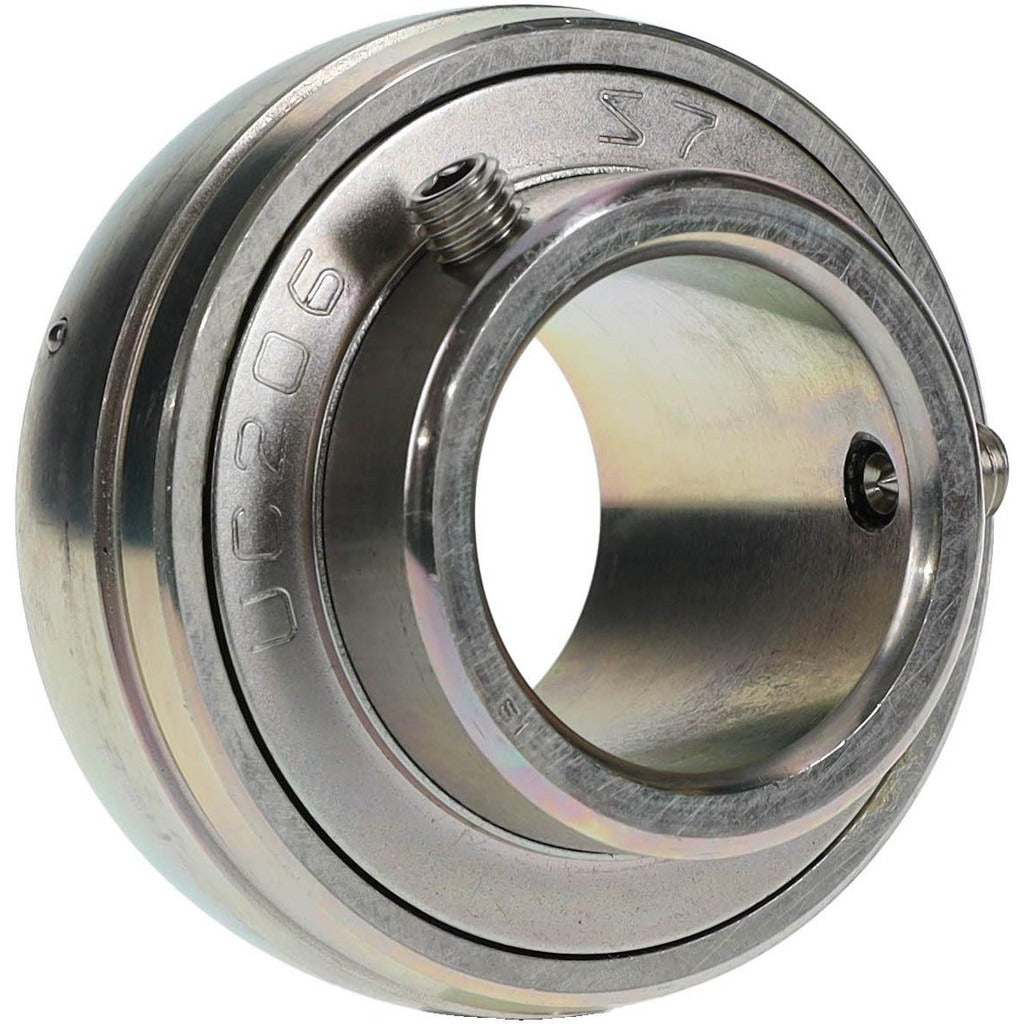

Value Collection UC20619S7 Ball Bearing Insert 1-3/16 in Id

Product Description

The VALUE COLLECTION UC20619S7 is a ball bearing insert designed for press-fit installation into standard pillow block and flange housings used across industrial, agricultural, and mechanical drive applications. The bearing features a 1-3/16 inch inner diameter bore and a 2.441 inch outer diameter, with a dynamic load capacity of 4,383 pounds and a static load capacity of 2,540 pounds. The insert body is constructed from zinc chromate plated steel, providing corrosion resistance in moderate-exposure environments. The race width measures 0.748 inches. This unit is sold individually and is intended for installation by maintenance technicians and millwrights working on rotating shaft assemblies.

This bearing insert is suited for use in conveyor systems, fans, pumps, agricultural equipment, and general industrial machinery where a replaceable insert bearing is required. It fits into UC-series housing units designed to accept a 1-3/16 inch bore insert. The zinc chromate plated finish makes it appropriate for applications where light corrosion protection is needed. It is commonly installed during scheduled maintenance to replace worn or failed inserts without replacing the entire bearing housing assembly.

Key Features

• 1-3/16 inch inner diameter bore for direct shaft fitment
• 2.441 inch outer diameter for compatibility with standard UC-series housings
• 4,383 pound dynamic load capacity for moderate-to-heavy radial load applications
• 2,540 pound static load capacity
• Zinc chromate plated steel insert for corrosion resistance
• 0.748 inch race width for compact axial footprint

Compatibility

Designed as an OEM-style replacement insert for standard UC-series pillow block and flange bearing housings accepting a 1-3/16 inch bore insert bearing.

Installation Notes

Installation should be performed by a qualified maintenance technician or millwright. De-energize and lock out all rotating equipment before removing the existing bearing insert. Press-fit the insert into the housing using appropriate bearing installation tools — do not strike the bearing directly with a hammer. Verify shaft alignment after installation to prevent premature wear.
