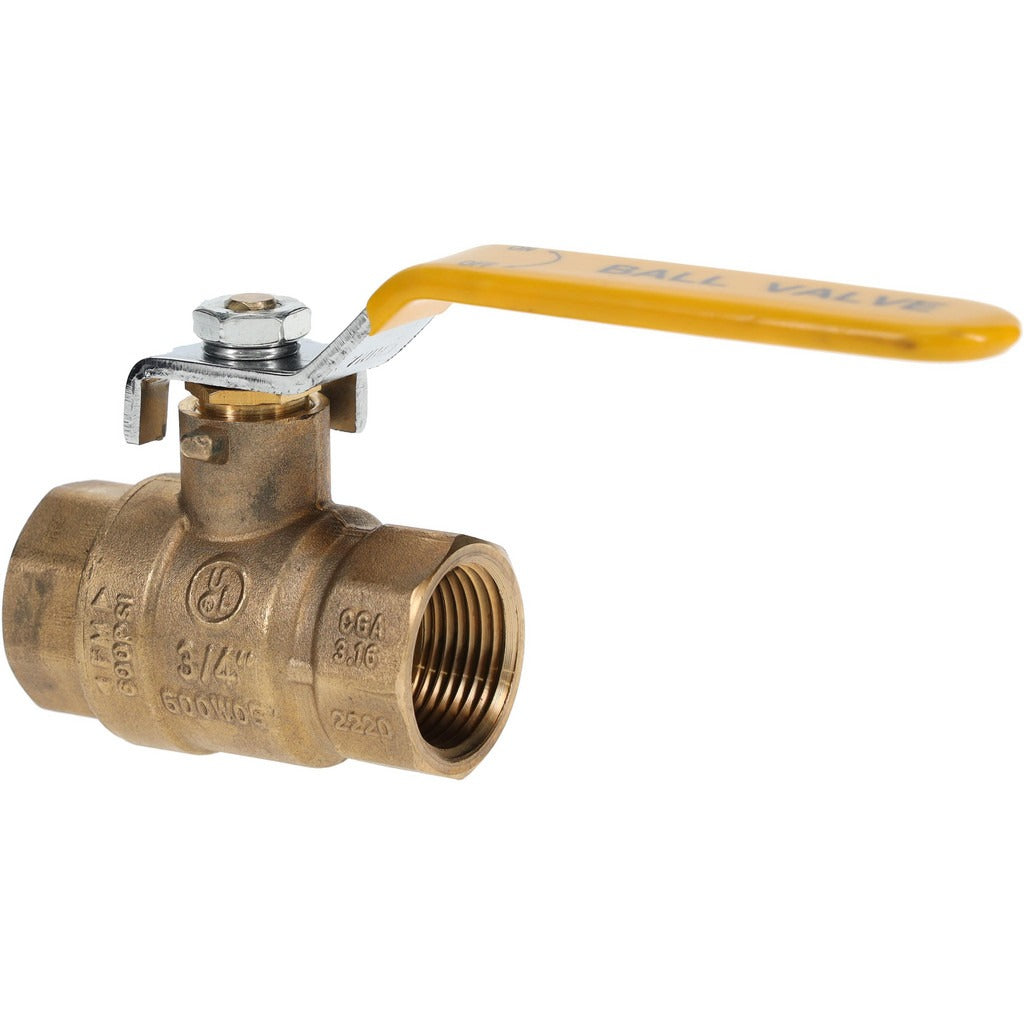

Value Collection TXSSN075 Ball Valve 3/4 in Full Port

Product Description

The VALUE COLLECTION TXSSN075 is a 2-way manual ball valve designed for 3/4-inch pipe in full-port configuration with FNPT x FNPT end connections. The full-port bore minimizes flow restriction, making it well-suited for applications where pressure drop is a concern. The body is constructed from 304 stainless steel with a lever handle for quick quarter-turn shutoff. Trim material is lead-free brass and the seat and seal material is polytetrafluoroethylene (PTFE), providing chemical resistance and reliable shutoff across a wide range of media. This valve meets multiple industry standards including ANSI B1.20.1, ASME B16.44, FM 1140, UL 125, and UL 842, among others.

This ball valve is used in residential and commercial plumbing, HVAC, and industrial piping systems wherever a reliable manual isolation point is needed on a 3/4-inch line. The FNPT x FNPT thread configuration allows direct connection to standard NPT-threaded pipe and fittings. The stainless steel body and PTFE seals make it appropriate for use with water, many chemicals, and other compatible media. Licensed plumbers and pipefitters commonly install this valve as a service isolation valve, zone shutoff, or equipment isolation fitting in mechanical rooms and inline piping runs.

Key Features

• Full-port design minimizes pressure drop through the valve body
• 304 stainless steel body for corrosion resistance and durability
• PTFE seat and seal material for chemical resistance and tight shutoff
• Lead-free construction meets lead-free compliance requirements
• Lever handle provides quick quarter-turn operation and visible open/closed indication
• Meets ANSI B1.20.1, ASME B16.44, ASME B16.33, FM 1140, UL 125, UL 842, CGA CR91-002, and CAN/CGA 3.16 standards

Compatibility

Designed for use with standard 3/4-inch NPT-threaded pipe systems. Suitable as a manual isolation valve in water, HVAC, and compatible fluid piping applications wherever a 3/4-inch FNPT x FNPT full-port ball valve is specified.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off system pressure and drain the line before removing or installing any valve. Apply thread sealant or PTFE tape to male NPT threads per standard trade practice. Do not over-torque the threaded connections, as stainless steel threads can gall if excessive force is applied.
