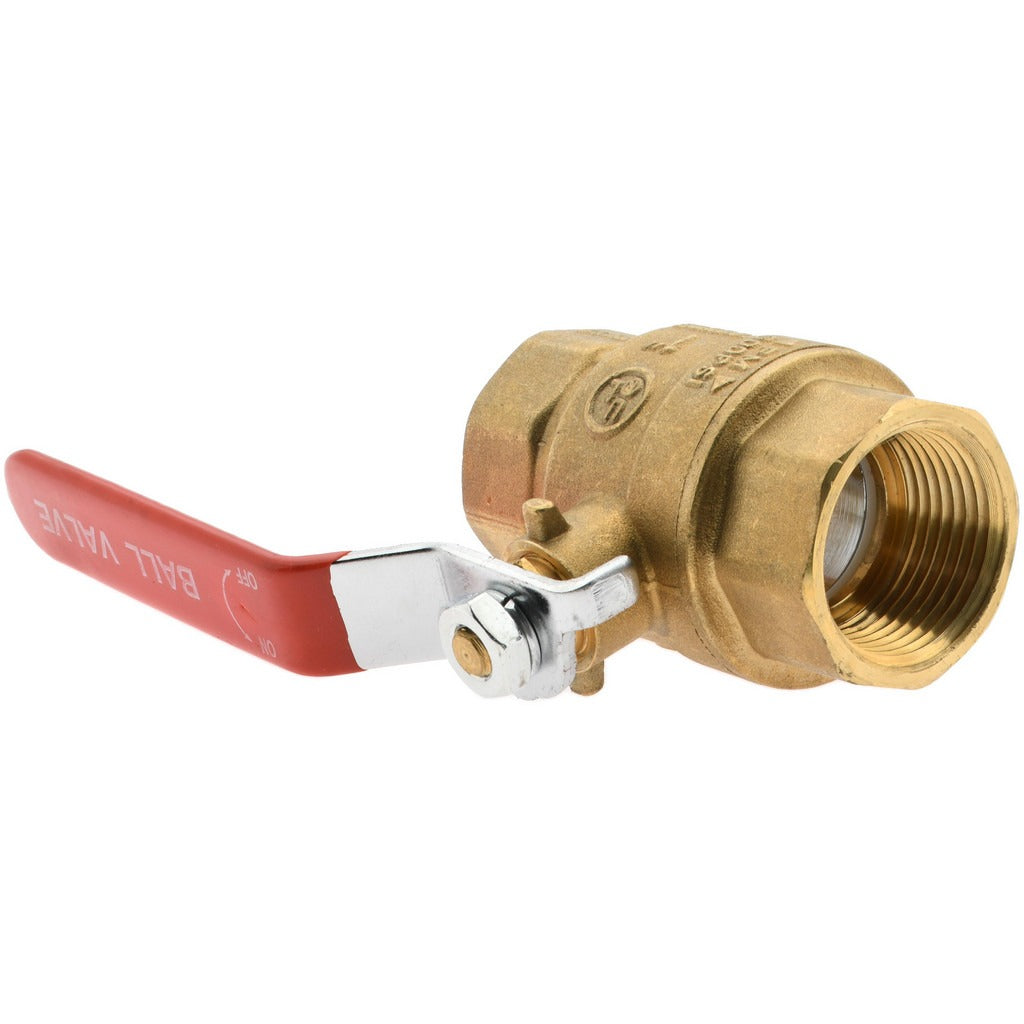

Value Collection TXN100 Ball Valve 1 Inch Fnpt Brass Lead Free

Product Description

The VALUE COLLECTION TXN100 is a full-port manual ball valve designed for 1-inch pipe systems using female NPT connections on both ends. The brass body and brass trim deliver reliable corrosion resistance across a wide range of plumbing and mechanical applications. Polytetrafluoroethylene (PTFE) seats and seals provide low-friction operation and long service life. The lever handle allows fast quarter-turn shutoff without tools. This valve meets lead-free construction requirements, making it suitable for potable water service. Licensed plumbers and pipefitters install this type of valve in both new construction and retrofit work.

This valve is suited for residential and light commercial plumbing, HVAC hydronic systems, gas distribution lines, and general fluid control applications where a full-bore flow path is required. The full-port design eliminates the pressure drop associated with reduced-port valves, which is important in low-flow or gravity-fed systems. The FNPT x FNPT end connections are compatible with standard NPT-threaded pipe and fittings in iron, copper, and brass systems.

Key Features

• Full-port ball design maintains full pipe bore for unrestricted flow
• Brass body and trim for corrosion resistance in water and gas service
• PTFE seats and seals for low torque operation and drip-tight shutoff
• Lever handle for quick quarter-turn open and close
• Lead-free construction approved for potable water systems
• FNPT x FNPT end connections fit standard 1-inch NPT threaded pipe

Compatibility

Designed as an OEM-style replacement or new-install valve for 1-inch NPT threaded pipe systems in plumbing, hydronic heating, and gas distribution applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and ASME or IFGC standards. Shut off supply pressure and drain the line before removing any existing valve or making threaded connections. Apply thread sealant or PTFE tape to male NPT threads per standard practice. Do not over-tighten threaded connections, as brass fittings can crack under excessive torque.
