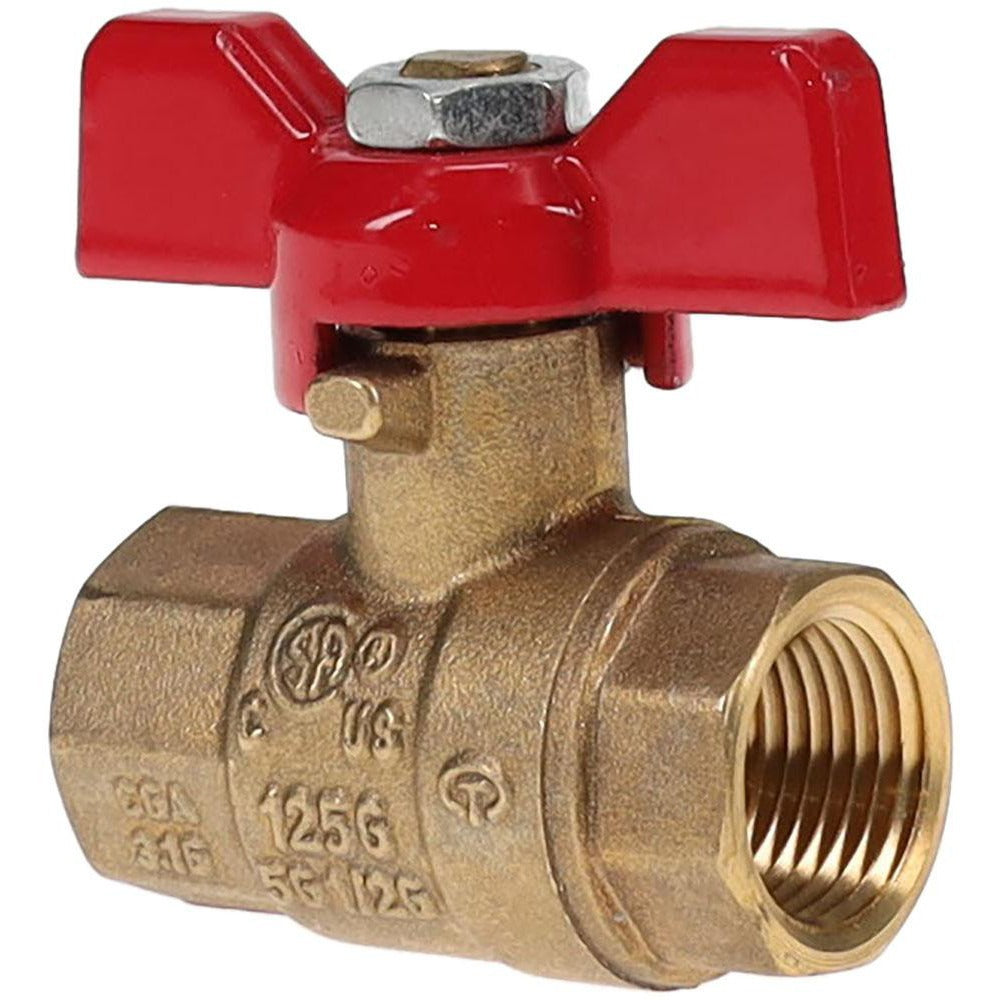

Value Collection TXN038-T Ball Valve 3/8 in Full Port Fnpt

Product Description

The VALUE COLLECTION TXN038-T is a standard 2-piece manual ball valve designed for 3/8 inch pipe with full port flow and FNPT x FNPT end connections. The body is constructed from brass, with an NBR seal and a polytetrafluoroethylene (PTFE) seat for reliable shutoff performance across a range of fluid media. A T-handle provides positive quarter-turn operation for fast open and close cycles. This valve is installed by licensed plumbers, pipefitters, HVAC technicians, and mechanical contractors in both service and process piping applications.

This valve suits residential and light commercial plumbing, HVAC hydronic systems, and general fluid control lines where a compact, full-port shutoff is required. The full port design minimizes pressure drop through the valve body, making it appropriate for systems where flow restriction must be limited. The FNPT x FNPT configuration threads directly onto standard NPT-threaded pipe or fittings.

Key Features

• Full port design reduces pressure drop compared to reduced-port valves
• Brass body offers corrosion resistance for water and compatible fluid service
• PTFE seat provides low-friction sealing and chemical compatibility
• NBR seal material suitable for water, air, and many hydrocarbon-free media
• T-handle enables quick quarter-turn shutoff without additional tools
• 2-piece body construction simplifies in-line service access

Compatibility

Designed as an OEM-style replacement or new-installation shutoff valve for 3/8 inch NPT-threaded pipe systems in plumbing and HVAC applications.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter in accordance with IPC and applicable local codes. Shut off upstream supply pressure and depressurize the line before removing or installing any valve. Apply thread sealant or PTFE tape to male NPT threads per manufacturer and code requirements. Verify that the valve flow arrow, if present, is oriented correctly with the system flow direction before final tightening.
