Value Collection TXMN038 Ball Valve 3/8 Inch Mnpt X Fnpt

Product Description

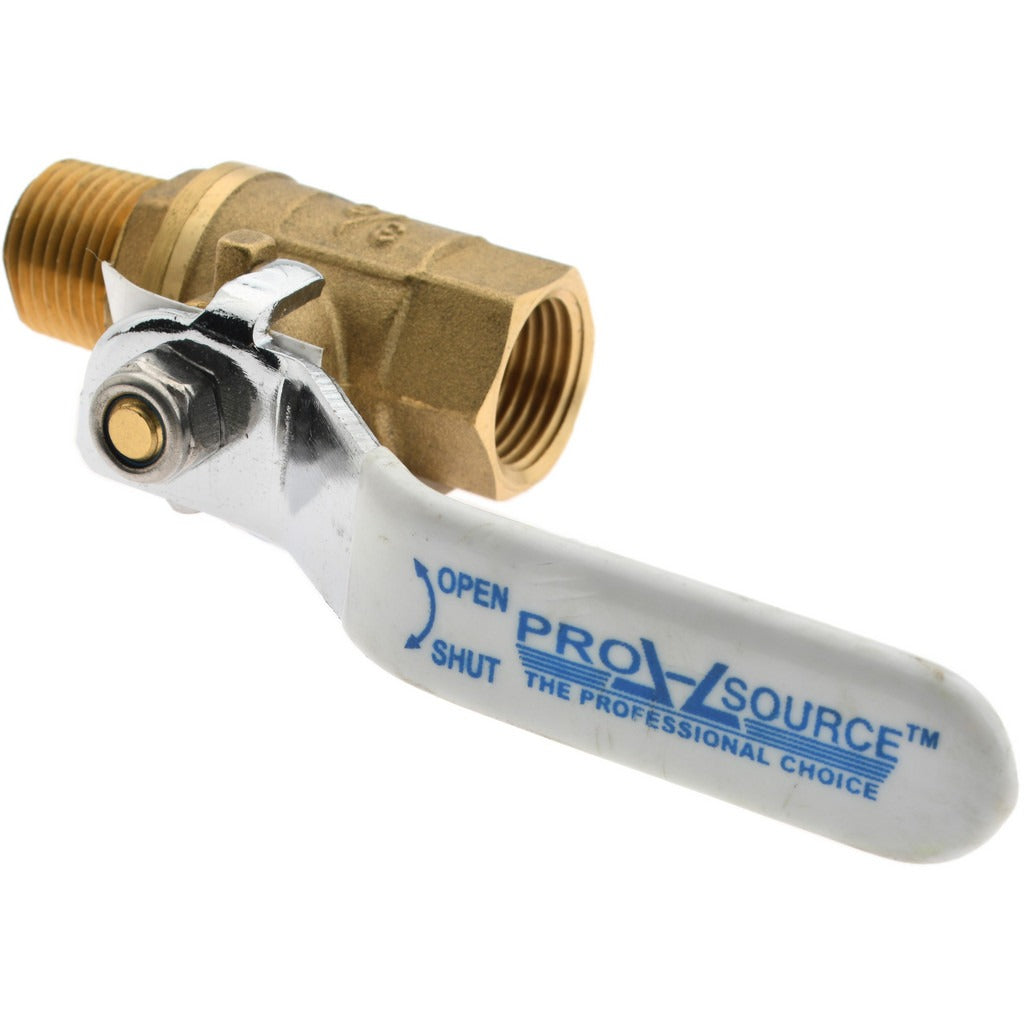

The VALUE COLLECTION TXMN038 is a full-port manual ball valve designed for 3/8-inch pipe with male NPT inlet and female NPT outlet connections. The brass body and brass trim provide reliable corrosion resistance in plumbing, HVAC, and light commercial gas or liquid service lines. A lever handle allows for quick quarter-turn shutoff. PTFE seats and seals deliver low-friction, leak-resistant performance across a wide range of service conditions. This valve is lead-free and meets multiple industry standards, making it suitable for potable water, gas, and general fluid control applications. Licensed plumbers and HVAC technicians are the primary installers.

This valve is well suited for residential and light commercial plumbing and HVAC installations where a compact, full-port shutoff is required on 3/8-inch supply or service lines. Full-port design minimizes flow restriction, which is critical in applications where pressure drop must be kept low. The MNPT x FNPT end configuration allows inline installation without additional adapters in most standard threaded piping systems. The gray body with red lever handle provides quick visual identification of valve position in the field.

Key Features

• Full-port design minimizes pressure drop and flow restriction
• Brass body and trim for corrosion-resistant durability
• PTFE seats and seals for low-friction, leak-resistant shutoff
• Quarter-turn lever handle for fast manual operation
• Lead-free construction suitable for potable water service
• Meets ANSI B1.20.1, ASME B16.44, FM 1140, UL 125, UL 842, and additional certifications

Compatibility

Designed as an OEM-style replacement or new-installation valve for 3/8-inch threaded piping systems using MNPT x FNPT connections in plumbing, HVAC, and compatible fluid or gas service applications.

Installation Notes

Installation should be performed by a licensed plumber or qualified HVAC technician in accordance with applicable local codes, IPC, and IFGC requirements. Shut off supply pressure and depressurize the line before removing any existing valve or fitting. Apply appropriate thread sealant or tape to MNPT threads per the sealant manufacturer and local code requirements. Do not overtighten threaded connections, as brass fittings are subject to damage from excessive torque.
