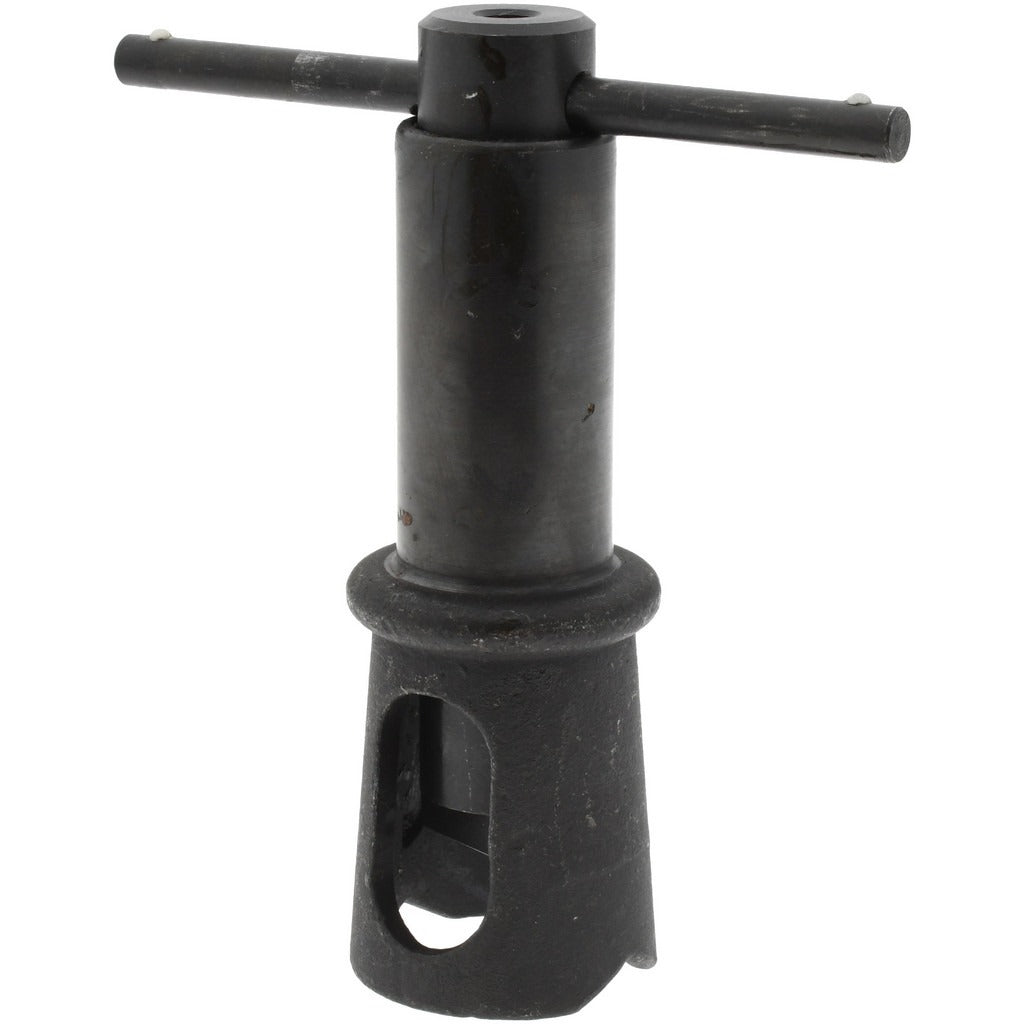

Value Collection TH0390 Tap Guide 0.25 to 0.5 in

Product Description

The VALUE COLLECTION TH0390 is a tap guide designed to keep hand taps aligned perpendicular to a workpiece during threading operations. It accepts taps ranging from 0.25 inches to 0.5 inches and features a 0.25-inch shank diameter. At 4.875 inches long, it provides stable guidance throughout the tapping stroke. This tool is used by machinists, pipefitters, plumbers, and maintenance technicians who need accurate thread starts in metal, plastic, or other materials. Proper tap alignment reduces the risk of broken taps and off-angle threads, making this guide a practical addition to any threading setup.

This tap guide is suited for both bench and field use wherever hand tapping is required. Common applications include threading pipe fittings, conduit connectors, equipment frames, and mechanical assemblies. It is appropriate for use on a drill press or with a simple hand setup when a straight, centered thread entry is needed. Trades that regularly thread holes in the 0.25-inch to 0.5-inch range will find this guide directly applicable to daily work.

Key Features

• Accepts taps from 0.25 inches minimum to 0.5 inches maximum tap size
• 0.25-inch shank diameter for secure tool holding
• 4.875-inch overall length provides extended guidance along the tap axis
• Helps prevent tap breakage caused by misalignment during hand tapping
• Lightweight at 1.34 pounds for easy single-hand use

Compatibility

Designed as a general-purpose tap guide compatible with standard hand taps in the 0.25-inch to 0.5-inch size range across common thread standards.

Installation Notes

Installation is performed by machinists or maintenance technicians using standard hand tapping procedures. Secure the workpiece firmly before beginning. Insert the appropriate tap through the guide, position the guide over the pilot hole, and apply steady downward pressure while rotating the tap. Periodically back off the tap to break chips and prevent binding.
