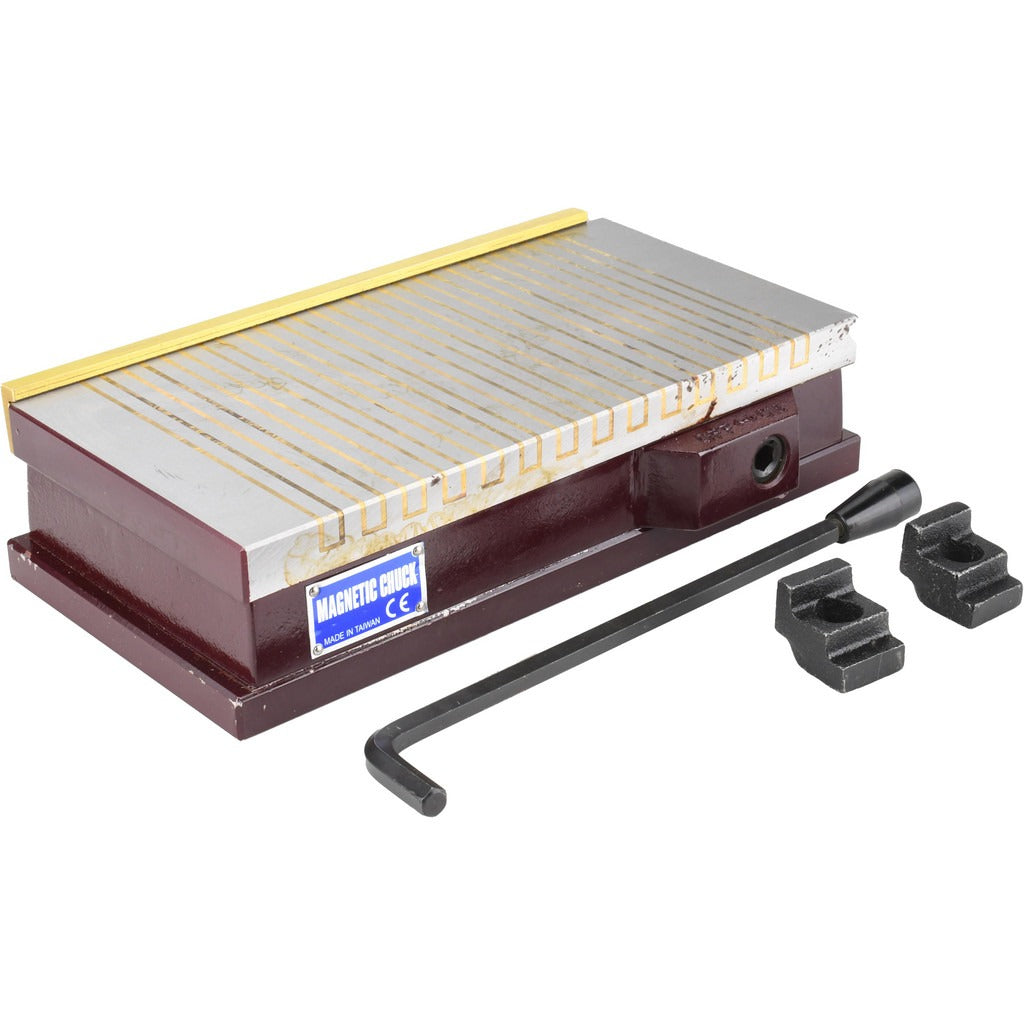

Value Collection TGL-612 Magnetic Block Chuck 12x6 in

Product Description

The VALUE COLLECTION TGL-612 is a rectangular permanent magnetic block chuck designed for precision workholding in EDM and surface grinding applications. It measures 12.0 inches long by 6.0 inches wide by 2.874 inches high and weighs 46 pounds. The chuck uses a standard pole magnet configuration to generate a consistent, powerful holding force across the work surface without requiring an external power source during holding. Machinists and grinding technicians install this chuck directly on the table of a surface grinder or EDM machine to secure ferrous workpieces during material removal operations.

This chuck is suited for use in job shops, tool rooms, and production grinding cells where flat ferrous parts must be held securely and released cleanly. The rectangular block form factor matches standard surface grinder table configurations. At 12.0 inches by 6.0 inches, it accommodates a wide range of workpiece sizes common in precision grinding work. The standard pole layout provides uniform magnetic field distribution across the full chuck face, which supports consistent results when grinding flat surfaces or performing EDM operations.

Key Features

• Permanent magnet design requires no electrical power to maintain holding force during operation
• Standard pole configuration delivers uniform field distribution across the 12.0 x 6.0 inch chuck face
• Rectangular block form factor fits standard surface grinder and EDM machine tables
• Solid construction at 46 pounds supports stable, vibration-resistant workholding
• Clean release action allows fast part repositioning between grinding passes

Compatibility

Designed as an OEM-style replacement or direct-fit workholding chuck for surface grinders and EDM machines that accept a 6 x 12 inch rectangular magnetic chuck with standard pole configuration.

Installation Notes

Installation is performed by a machinist or grinding technician. Before mounting, power down the machine and confirm the T-slot table surface is clean and free of chips or debris that could affect chuck seating. Secure the chuck to the machine table using the appropriate T-bolts and confirm it is flat and fully seated before energizing the magnet. Follow the machine manufacturer guidelines and applicable shop safety procedures when working with magnetic chucks near electronic equipment or sensitive components.
