Value Collection TGL-510 Magnetic Block Chuck 10x5 in

Product Description

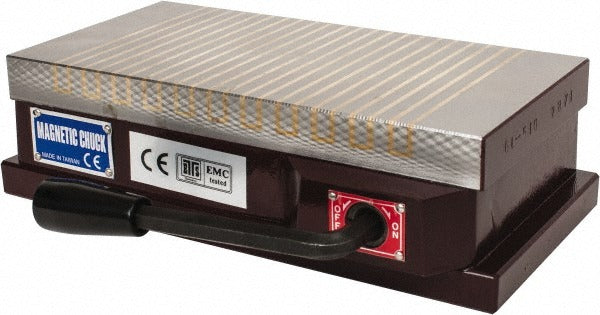

The VALUE COLLECTION TGL-510 is a standard-pole rectangular permanent magnetic block chuck designed for precision workholding in EDM and surface grinding applications. Measuring 10.000 inches long by 5.000 inches wide by 2.874 inches high and weighing 28 pounds, this block chuck provides a stable, flat clamping surface for ferrous workpieces without requiring an external power source to maintain holding force. The permanent magnet design keeps parts secured throughout the grinding cycle, reducing the risk of workpiece shift. Machinists and toolroom technicians working with surface grinders or EDM setups rely on this type of chuck for repeatable, low-profile workholding.

This chuck is suited for use on reciprocating surface grinders and EDM machines in toolroom, job shop, and production environments. Its rectangular block format accommodates a range of flat ferrous workpieces and is a standard configuration for both manual and semi-automatic surface grinding operations. The standard magnetic pole pattern is appropriate for general-purpose grinding where fine-pitch poles are not required.

Key Features

• Permanent magnet design requires no electrical connection to maintain clamping force during operation
• Standard pole configuration suited for general EDM and surface grinding workholding
• Rectangular block format: 10.000 inches long by 5.000 inches wide by 2.874 inches high
• Substantial 28-pound construction for rigidity and vibration damping on the grinder table
• Flat top surface provides consistent workpiece registration for accurate stock removal

Compatibility

Designed as a standard-pole rectangular magnetic block chuck for use on surface grinders and EDM machines that accept a 10-inch by 5-inch chuck footprint.

Installation Notes

Installation and removal should be performed by a qualified machinist or toolroom technician familiar with magnetic chuck mounting procedures. Ensure the grinder table and chuck base are clean and free of chips or burrs before seating the chuck to maintain flatness. Demagnetize and inspect the chuck surface periodically per the machine manufacturer's maintenance schedule. Follow applicable shop safety procedures when handling the chuck, as its 28-pound weight requires proper lifting technique.
