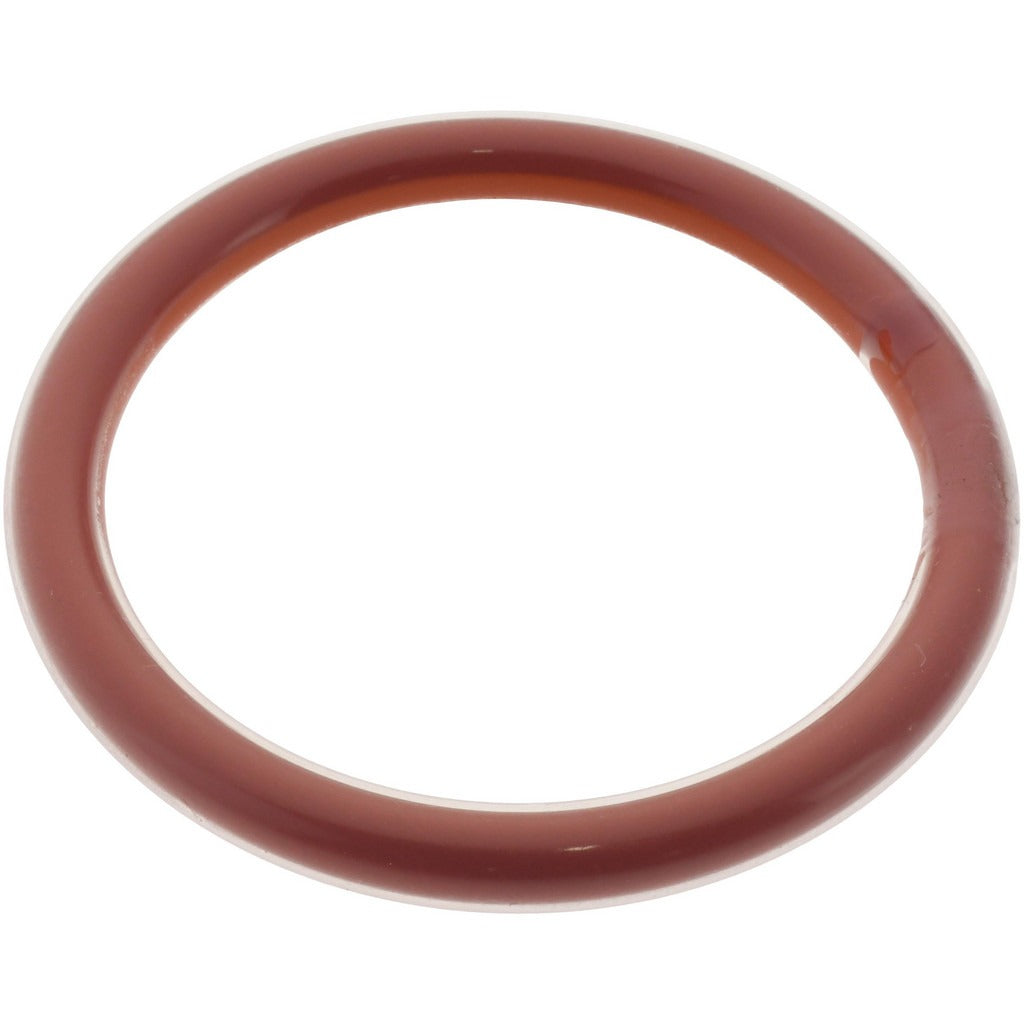

Value Collection TES70327 O-ring Dash 327 Ptfe Silicone

Product Description

The VALUE COLLECTION TES70327 is a Dash 327 O-ring with a PTFE-encapsulated silicone construction, designed for sealing applications that demand both chemical resistance and mechanical resilience. The ring features a 1.75-inch inside diameter, a 2.125-inch outside diameter, and a 0.1875-inch cross-section thickness. A seamless FEP (fluorinated ethylene propylene) Teflon shell completely encapsulates a silicone elastomer core, combining the broad chemical resistance of solid PTFE with the compression recovery and elasticity of silicone. It is installed by plumbers, HVAC technicians, and industrial maintenance trades where aggressive media or wide temperature swings rule out standard nitrile or EPDM seals.

This O-ring suits static and low-dynamic sealing applications across plumbing, HVAC, chemical processing, and food-grade equipment where PTFE-level chemical compatibility is required but a solid PTFE ring lacks adequate elasticity. The round cross-section geometry fits standard Dash 327 gland dimensions. The operating temperature range spans -75 degrees F to 400 degrees F, making it appropriate for both cryogenic-adjacent and high-heat service conditions. It is sold and packaged as a single unit.

Key Features

• Seamless FEP Teflon encapsulation completely encloses the silicone core with no seams or gaps
• Operating range of -75 degrees F to 400 degrees F suits wide-temperature service environments
• Combines PTFE chemical resistance with silicone elasticity and compression recovery
• Round cross-section profile fits standard Dash 327 gland dimensions
• Shore hardness rated Hard (70) for firm sealing under compression
• Black color aids visual inspection during installation and maintenance

Compatibility

Designed as an OEM-style replacement or maintenance seal for any application requiring a Dash 327 O-ring gland where PTFE-encapsulated silicone material is specified.

Installation Notes

Power down or depressurize the system fully before replacing any O-ring seal. Inspect the gland groove for nicks, burrs, or corrosion that could compromise the seal before seating the ring. Avoid using sharp tools that could cut or score the FEP encapsulation layer during installation. Follow applicable plumbing or mechanical codes, such as IPC or ASME B31, for pressure-rated assembly requirements.
