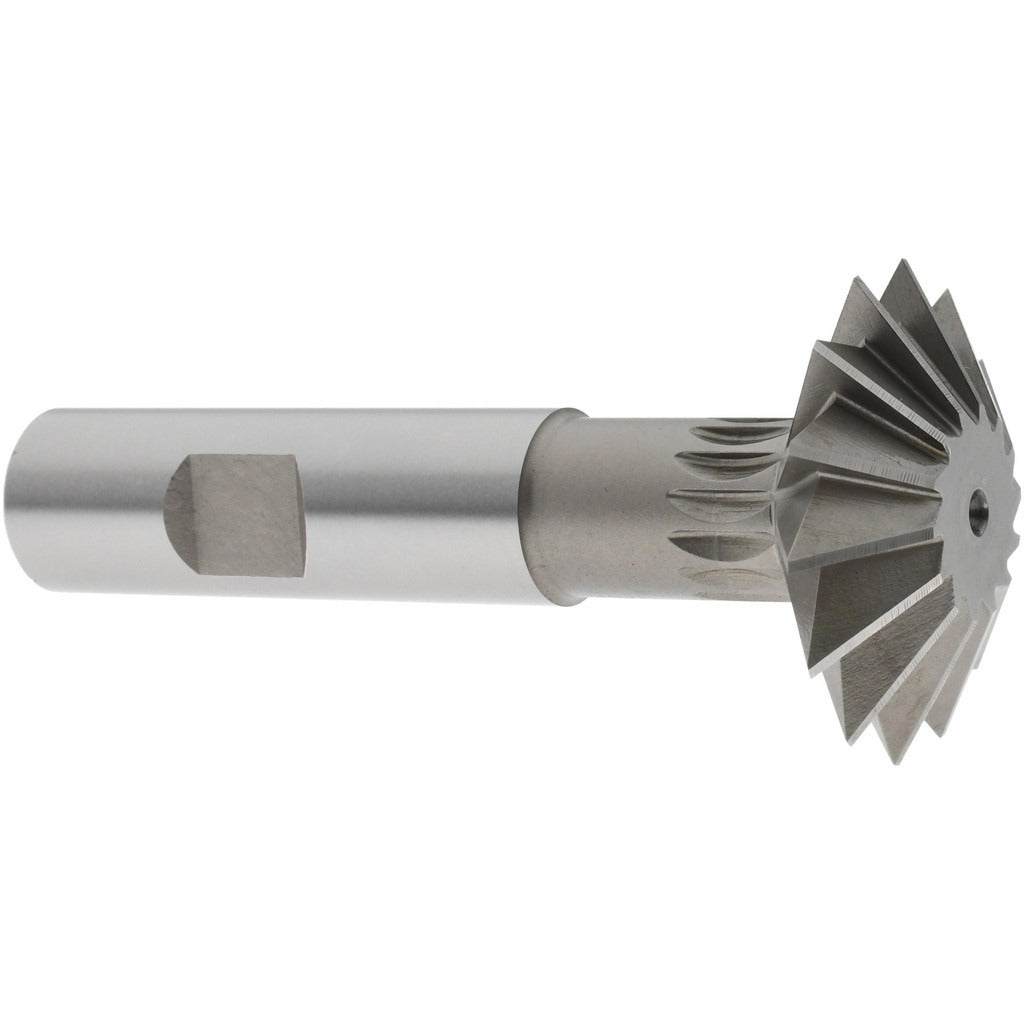

Value Collection SWC1260HS Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION SWC1260HS is a double angle milling cutter designed for precision angle milling operations in metalworking and machining applications. Built from high speed steel (HSS) with a bright, uncoated finish, this cutter delivers reliable performance across a range of ferrous and non-ferrous materials. The included angle is 60 degrees, with a 1-1/2 inch cut diameter and a 1/2 inch cutting width. The shank connection type makes it straightforward to mount in compatible milling machine spindles. Overall length is 3-3/8 inches, and the tool weighs 0.35 pounds. It is well suited for machinists and toolroom professionals who need a consistent, ready-to-use angle cutter without coatings that could interfere with certain cutting fluids.

This cutter is intended for use in manual knee mills, CNC milling machines, and toolroom milling setups where double angle profiles are required. Typical applications include cutting V-grooves, chamfers, serrations, and angular dovetail forms on metal workpieces. It is most commonly used in job shops, production machining environments, and maintenance-and-repair machine operations where HSS tooling is preferred for its toughness and regrindability.

Key Features

• 60-degree included angle for precise double angle milling and V-groove profiles
• 1-1/2 inch cut diameter provides substantial material engagement per pass
• 1/2 inch cutting width suited for moderate-depth groove and chamfer work
• High speed steel construction offers toughness and the ability to be resharpened
• Bright, uncoated finish compatible with a wide range of cutting fluids
• Shank connection type with 5/8 inch shank diameter for secure spindle mounting

Compatibility

Designed for use in milling machines that accept shank-type angle milling cutters with a 5/8 inch shank diameter. Verify spindle collet or chuck capacity before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom professional. Power down and lock out the milling machine before mounting or removing any cutter. Secure the shank fully in a properly sized collet or end mill holder and verify runout before beginning a cut. Follow applicable shop safety standards and machine manufacturer guidelines for spindle speed and feed rate selection.
