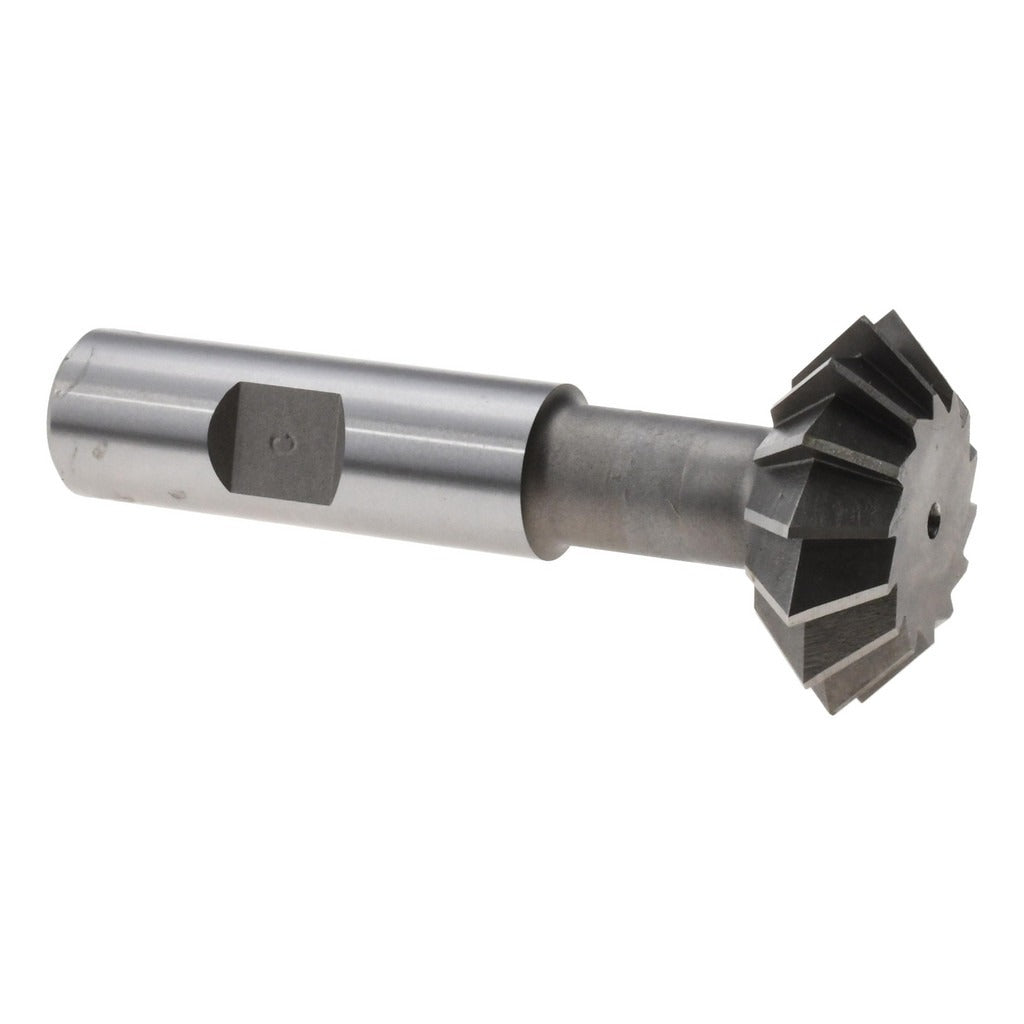

Value Collection SWC1190CO Double Angle Milling Cutter

Product Description

The VALUE COLLECTION SWC1190CO is a double angle milling cutter designed for precision milling operations that require a symmetrical 90-degree included angle. Constructed from cobalt high-speed steel, this cutter delivers improved heat and wear resistance compared to standard HSS tooling, making it well-suited for harder workpiece materials and higher cutting speeds. The cutter measures 1-3/8 inches in cutting diameter with a 1/2-inch cutting width and mounts via a 5/8-inch shank. Overall length is 3-9/32 inches. The uncoated bright finish is appropriate for applications where coating adhesion or material compatibility is a concern. This tool is installed and used by machinists and toolroom technicians on manual or CNC milling machines.

This double angle milling cutter is used for cutting symmetrical V-grooves, serrations, chamfers, and dovetail-adjacent profiles in metalworking applications. The 90-degree included angle suits common V-groove and chamfering work on ferrous and non-ferrous metals. It is appropriate for job shop, toolroom, and production milling environments where consistent angular geometry is required. The 5/8-inch shank provides a direct collet or end mill adapter connection on standard milling machine spindles.

Key Features

• 90-degree included angle for symmetrical V-groove and chamfer milling
• Cobalt construction for improved heat resistance and tool life over standard HSS
• 1-3/8-inch cutting diameter with 1/2-inch cutting width
• 5/8-inch shank for collet or adapter mounting on standard milling spindles
• Uncoated bright finish suitable for a broad range of metalworking materials
• 3-9/32-inch overall length for standard toolholder reach

Compatibility

Designed for use in standard milling machine spindles accepting a 5/8-inch shank via collet, end mill holder, or adapter. Suitable for manual knee mills and CNC vertical milling machines configured for shank-type cutters.

Installation Notes

Installation is performed by a machinist or toolroom technician. Secure the 5/8-inch shank in a properly sized collet or end mill holder and torque the drawbar or clamping mechanism according to the machine manufacturer's specifications. Ensure the spindle is fully stopped and the machine is powered off before changing or adjusting the cutter. Verify cutter runout with a dial indicator after mounting before beginning any cut.
