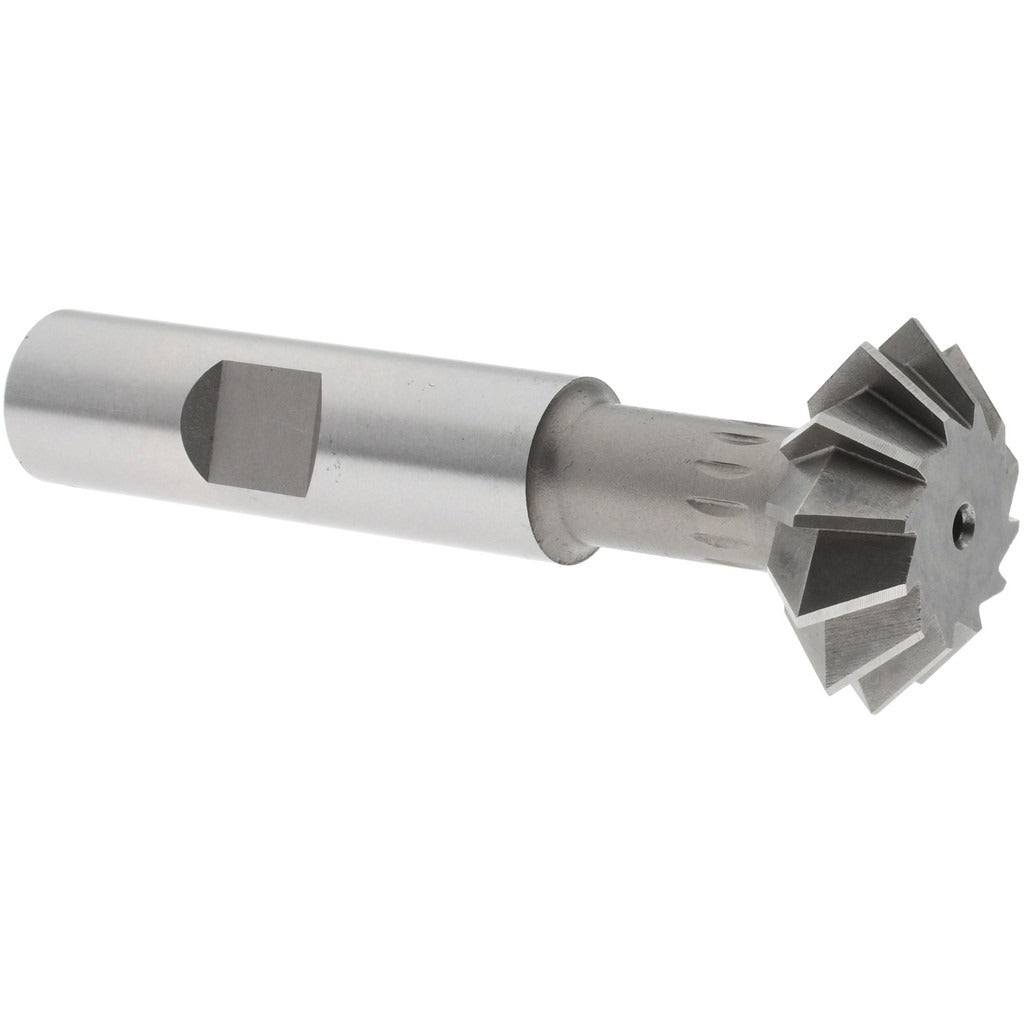

Value Collection SWC0890HS Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION SWC0890HS is a double angle milling cutter designed for precision angular slot and groove machining on milling machines. It features a 90-degree included angle, a 1-inch cutting diameter, and a 3/8-inch cutting width, making it well-suited for producing sharp V-grooves and chamfers in ferrous and non-ferrous workpieces. The cutter is manufactured from high speed steel (HSS) with a bright, uncoated finish. The 1/2-inch straight shank provides secure tool-holder engagement. Overall length is 2-29/32 inches. Machinists and tool-and-die professionals install this type of cutter on manual or CNC knee mills and vertical machining centers for angular form milling operations.

This cutter is used in job shop, production machining, and maintenance repair environments where consistent angular profiles are required. Typical applications include V-groove milling, dovetail preparation, and chamfering operations on steel, aluminum, brass, and similar materials. The HSS construction allows for re-sharpening, extending the useful service life of the tool. It is packaged individually and sold as a single unit.

Key Features

• 90-degree included angle for standard V-groove and chamfer milling
• 1-inch cutting diameter for moderate material removal per pass
• 3/8-inch cutting width suits shallow groove and chamfer profiles
• High speed steel construction supports re-sharpening and extended tool life
• Bright, uncoated finish suitable for general-purpose machining applications
• 1/2-inch shank diameter fits standard milling machine collets and arbors

Compatibility

Designed as a standard-shank double angle milling cutter compatible with milling machines and machining centers equipped with a 1/2-inch collet or toolholder.

Installation Notes

Installation is performed by a qualified machinist. Secure the 1/2-inch shank in a clean, undamaged collet or end mill holder and torque to the machine manufacturer's specification. Ensure the spindle is fully stopped and the machine is locked out before mounting or removing the cutter. Inspect the cutting edges for chips or damage before each use, and run the cutter within the feed and speed parameters recommended for HSS tooling and the workpiece material.
