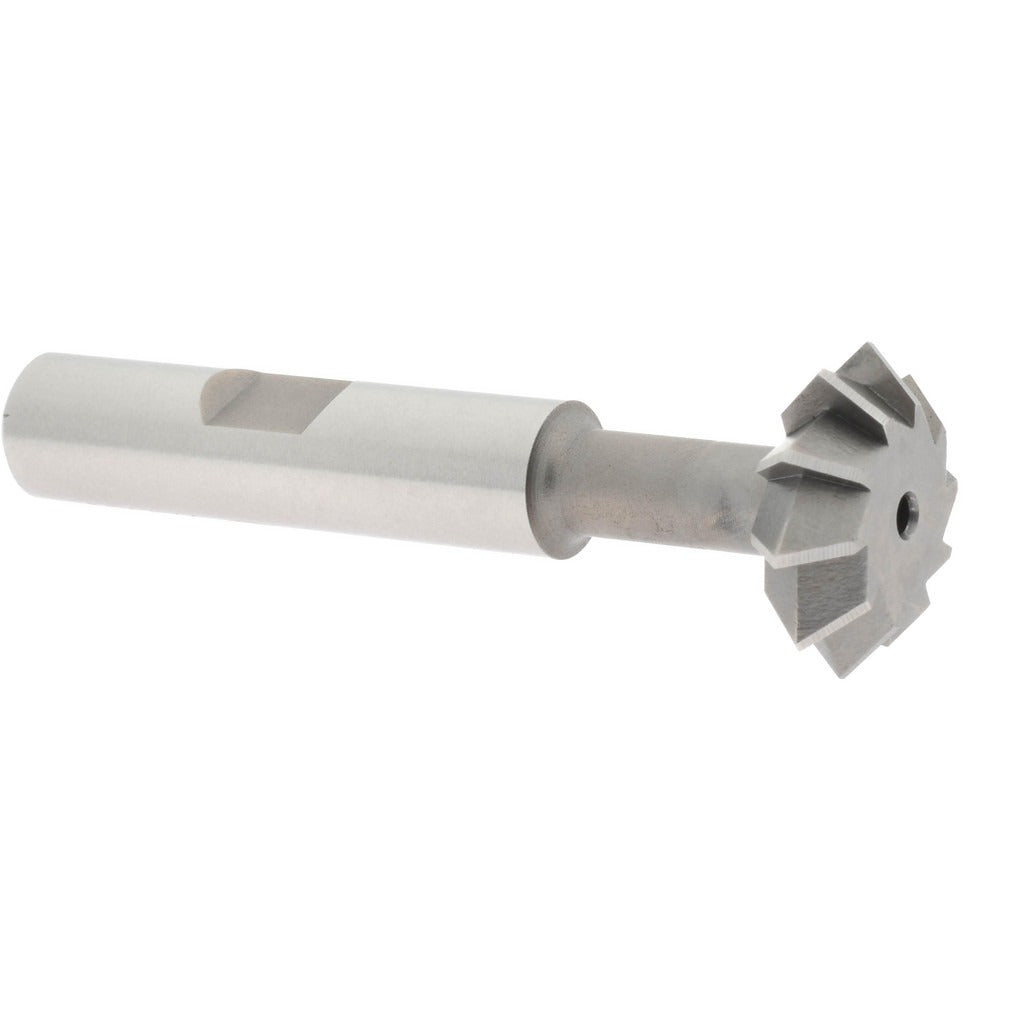

Value Collection SWC0690HS Double Angle Milling Cutter Hss

Product Description

The VALUE COLLECTION SWC0690HS is a double angle milling cutter designed for precision angular milling operations in metal fabrication and machining environments. Built from high speed steel (HSS) with a bright, uncoated finish, this cutter produces a full 90-degree included angle and delivers a 0.25-inch cutting width across a 3/4-inch cut diameter. The 3/8-inch straight shank mounts directly into standard milling machine collets or arbors. With an overall length of 2-7/16 inches, it fits compact setups without sacrificing rigidity. This tool is suited for machinists and tool-and-die professionals running manual or CNC knee mills and vertical machining centers.

This cutter is a practical choice for cutting V-grooves, chamfers, angular slots, and dovetail-adjacent profiles on ferrous and non-ferrous workpieces. It is well matched to low-to-medium production runs in job shops, maintenance machining, and prototype work where a reliable HSS cutter with a defined 90-degree geometry is required. The uncoated finish makes it suitable for regrinding when worn, extending tool life through shop resharpening rather than replacement.

Key Features

• 90-degree included angle for precise V-groove and chamfer milling
• 3/4-inch cut diameter with 1/4-inch (0.2500-inch) cutting width
• 3/8-inch shank diameter for compatibility with standard collets and arbors
• High speed steel construction supports regrinding and resharpening
• Bright, uncoated finish — no coating removal needed before regrinding
• 2-7/16-inch overall length suits compact milling setups

Compatibility

Designed as a standard shank-mount double angle milling cutter for use in vertical milling machines, knee mills, and CNC machining centers equipped with 3/8-inch collets or compatible toolholders.

Installation Notes

Installation is performed by qualified machinists. Secure the 3/8-inch shank in a clean, properly sized collet or toolholder and torque the drawbar or collet nut per the machine manufacturer specification. Inspect the cutter for chips or cracks before mounting. Power down and lock out the spindle before changing tooling, per standard OSHA lockout/tagout procedures.
