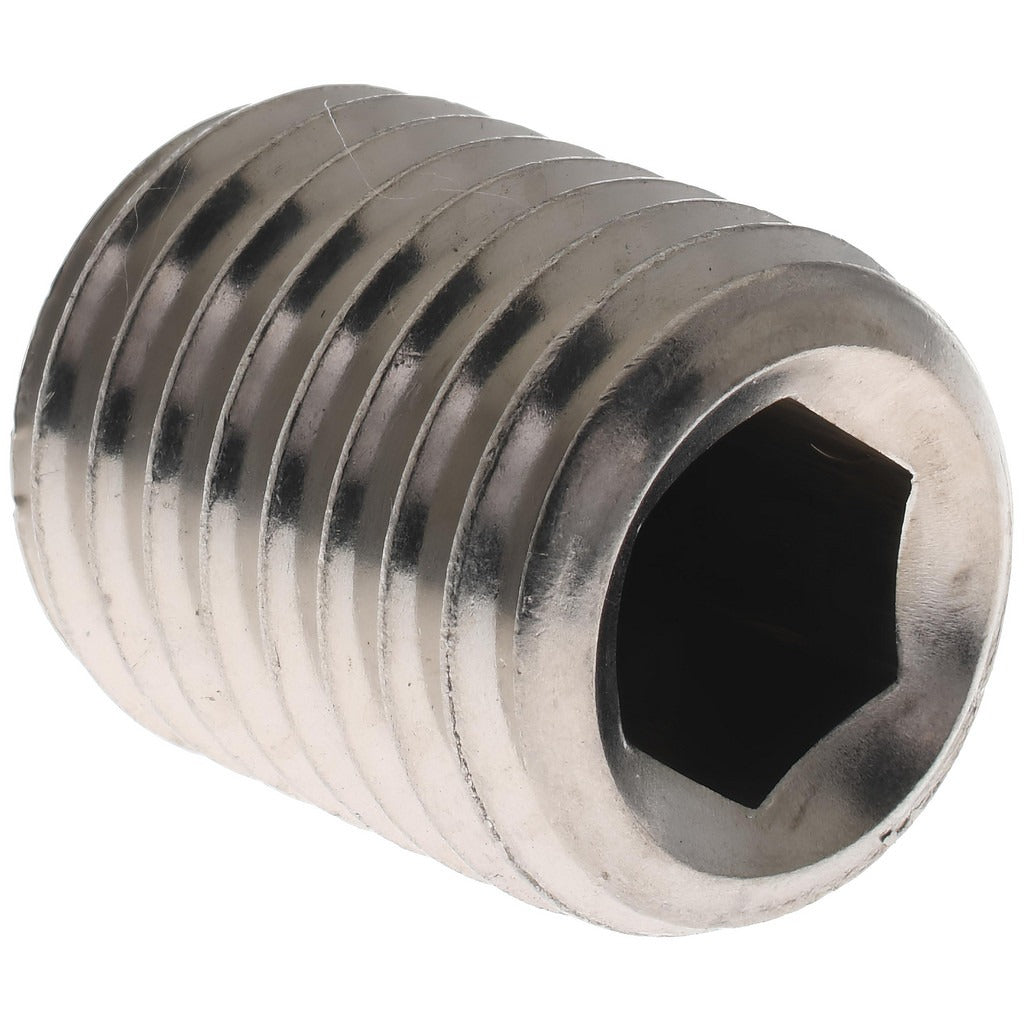

Value Collection SS6X16020-025BX M16 Set Screw Din 916

Product Description

The VALUE COLLECTION SS6X16020-025BX is a metric cup point set screw designed for mechanical assemblies where a recessed fastener is required to lock components in place without protruding beyond the surface. Sized at M16 x 2.00 with an overall length of 20 mm, it accepts an 8 mm hex key for installation and removal. The fastener is manufactured from 18-8 stainless steel meeting Austenitic Grade A2 classification, providing corrosion resistance suitable for general industrial, HVAC mechanical, and plumbing equipment applications. It conforms to DIN 916, the standard governing hexagon socket cup point set screws.

Cup point set screws are used in shaft-to-hub connections, collar locks, and mechanical stop applications across a wide range of equipment. This M16 x 2.00 x 20 mm fastener fits installations in residential and light commercial mechanical systems including pump assemblies, fan shaft collars, and similar rotating equipment. The metric thread standard and DIN 916 specification make it appropriate for imported equipment and machinery requiring metric hardware replacements or repairs.

Key Features

• M16 x 2.00 metric thread with 20 mm overall length
• Cup point geometry grips shaft material to resist rotation and axial movement
• 18-8 stainless steel construction meeting Austenitic Grade A2 specification for corrosion resistance
• DIN 916 standard hex socket drive accepts standard 8 mm hex key
• Fully recessed installation leaves no protrusion above the mating surface

Compatibility

Designed as an OEM-style replacement or service fastener for metric mechanical assemblies requiring a DIN 916 cup point set screw in M16 x 2.00 thread with 20 mm length.

Installation Notes

Installation requires a calibrated 8 mm hex key or hex bit driver. Power down and de-energize all rotating equipment before servicing shaft collars or mechanical connections. Do not overtighten stainless steel fasteners without lubrication, as galling can occur between stainless mating surfaces. Fastener selection and torque requirements should comply with applicable mechanical codes and equipment manufacturer specifications.
