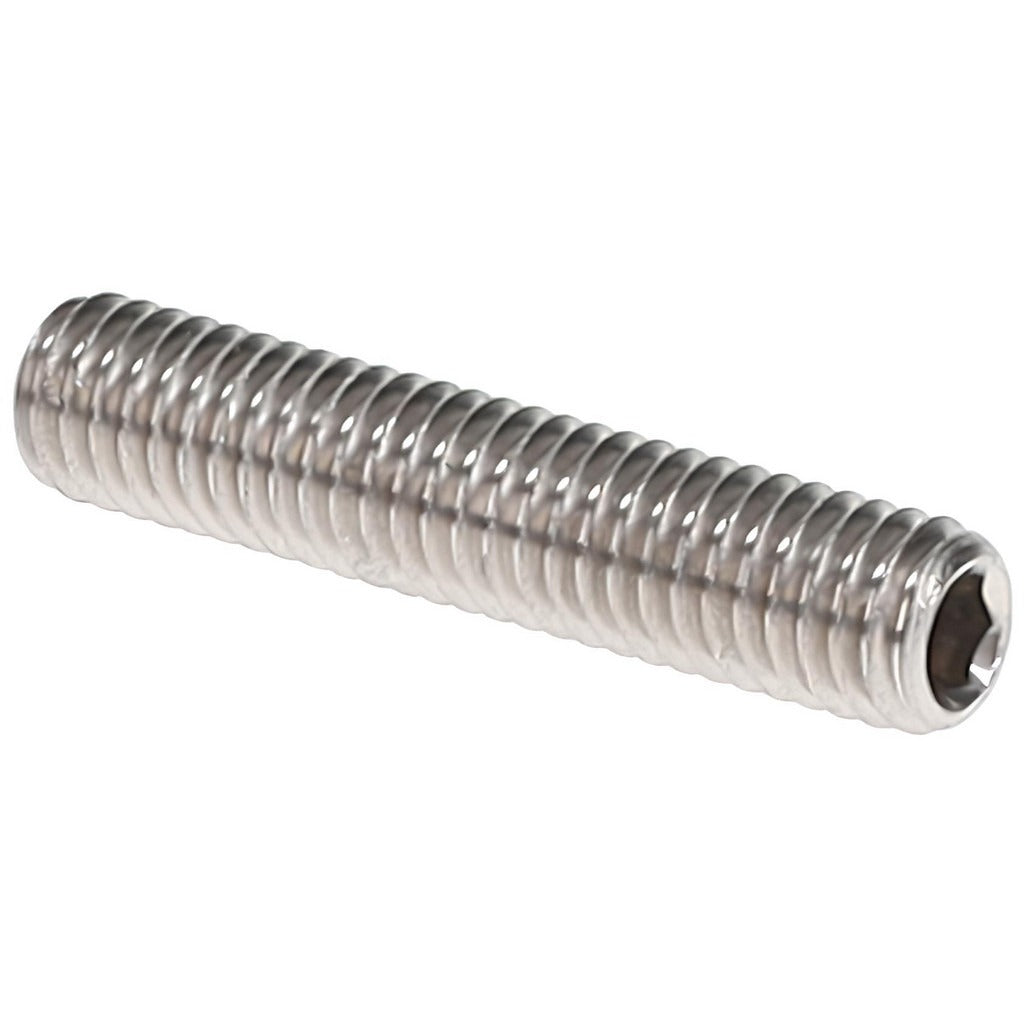

Value Collection SS6X06030-025BX M6x1 Cup Point Set Screw 18-8 Ss

Product Description

The VALUE COLLECTION SS6X06030-025BX is a metric cup point set screw manufactured from 18-8 austenitic stainless steel to Grade A2. It features an M6 x 1.00 thread pitch and an overall length of 30 mm, conforming to DIN 916. The cup point geometry bites into shaft material to resist rotation and axial movement without a protruding head. Drive is a 3 mm hex key socket. This fastener is suited for machine assembly, shaft collars, shaft couplings, and mechanical components where a flush or recessed screw is required. Sold in a box of 25 pieces.

Cup point set screws in M6 sizing are widely used in light industrial machinery, motion control assemblies, conveyor components, and general mechanical fabrication. The 18-8 Grade A2 stainless steel construction provides corrosion resistance appropriate for wet or mildly corrosive environments. Mechanical technicians, maintenance engineers, and fabricators install these in shaft collars, pulleys, gears, and knobs. The DIN 916 standard ensures dimensional interchangeability across metric tooling and hardware systems.

Key Features

• M6 x 1.00 metric thread pitch per DIN 916 standard
• 30 mm overall length for deeper engagement in thicker collars or hubs
• Cup point tip bites into shaft surface to hold position under load
• 18-8 austenitic stainless steel, Austenitic Grade A2 for corrosion resistance
• 3 mm hex key drive for installation with standard Allen wrenches
• Sold as a box of 25 pieces to support production or maintenance quantities

Compatibility

Designed as a standard DIN 916 metric cup point set screw. Compatible with any M6 x 1.00 threaded bore application requiring a headless cup point fastener per metric standards.

Installation Notes

Install with a 3 mm hex key wrench. Ensure the mating bore is clean and threads are free of debris before driving the screw. Do not exceed the mechanical limits of the thread or the shaft material when applying torque. For safety-critical assemblies, consult applicable mechanical or industrial fastener standards for proper tightening procedure and thread engagement depth.
