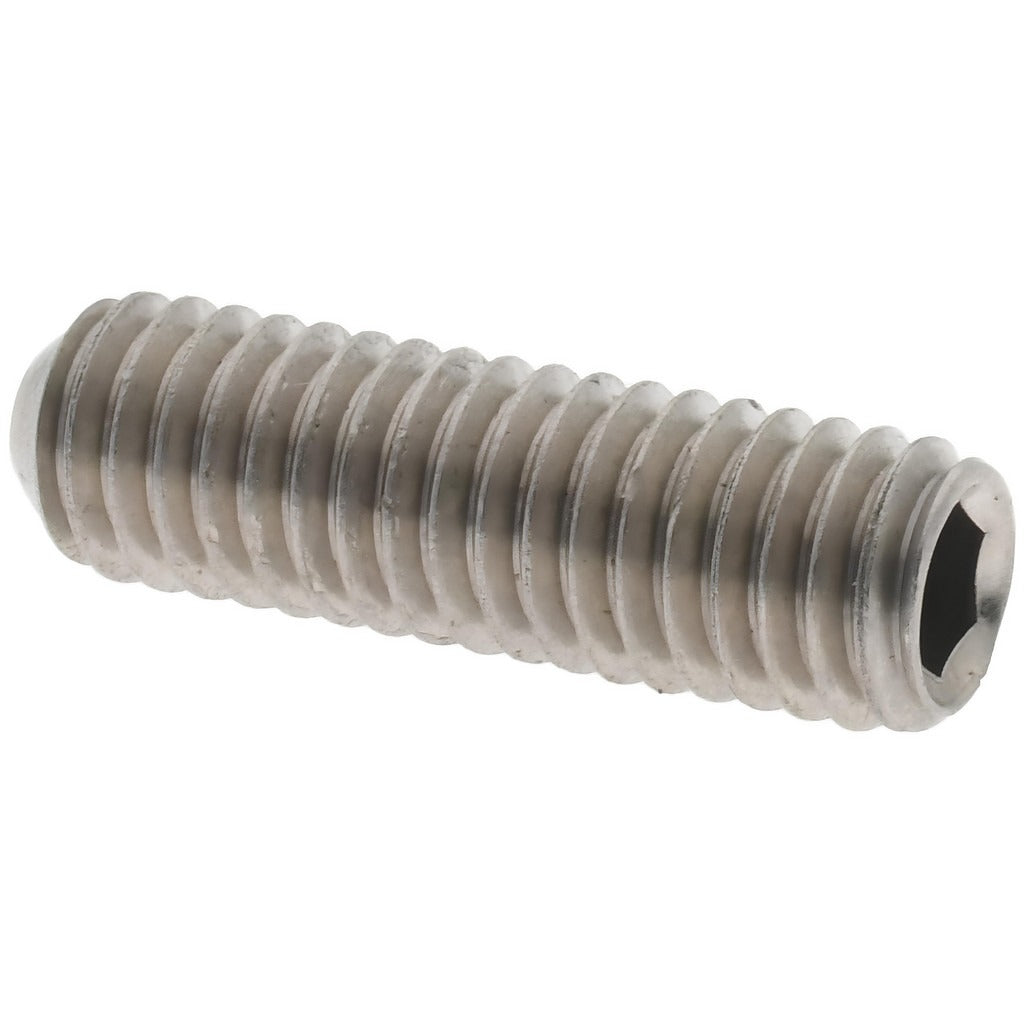

Value Collection SS6X06020-100BX Set Screw M6x1 20mm Cup Point

Product Description

The VALUE COLLECTION SS6X06020-100BX is a metric cup point set screw designed for mechanical assemblies where a flush or below-surface fastener is required. Manufactured from 18-8 austenitic stainless steel (Grade A2), it offers solid corrosion resistance across a wide range of environments. The M6 x 1.00 thread pitch and 20 mm overall length make it a commonly specified size in shaft collars, shaft couplings, and machinery components. Drive is internal hex (Allen key), using a 3.00 mm hex key. Conforms to DIN 916, the standard governing hexagon socket cup point set screws. These are supplied in a minimum order quantity of 100 pieces per box.

This set screw is used in general industrial, mechanical, and maintenance applications wherever a metric grub screw is required to secure a component to a shaft or within a threaded bore. Typical installations include shaft collars, pulleys, gears, couplings, and machine tool fixtures. The cup point geometry bites into the mating surface for positive holding without a protruding head, making it suitable for rotating assemblies and tight clearance conditions. Stainless steel construction makes it appropriate for light corrosive or washdown environments.

Key Features

• M6 x 1.00 mm thread with 20 mm overall length per DIN 916 standard
• Cup point geometry provides positive grip on mating shaft surfaces
• 18-8 austenitic stainless steel (Grade A2) for corrosion resistance
• Internal hex drive accepts a 3.00 mm hex key for flush installation
• No protruding head — suitable for rotating and close-clearance assemblies
• Sold in a box of 100 pieces minimum order quantity

Compatibility

Designed as a standard DIN 916 metric cup point set screw suitable for any M6 x 1.00 threaded bore application in industrial, mechanical, or maintenance settings.

Installation Notes

Installation requires a 3.00 mm hex key (Allen wrench). Clean and inspect the threaded bore before installation. Apply thread-locking compound if vibration resistance is required by the application. Do not over-torque stainless steel fasteners, as galling can occur — use appropriate anti-seize compound on the threads when installing into stainless or aluminum components.
