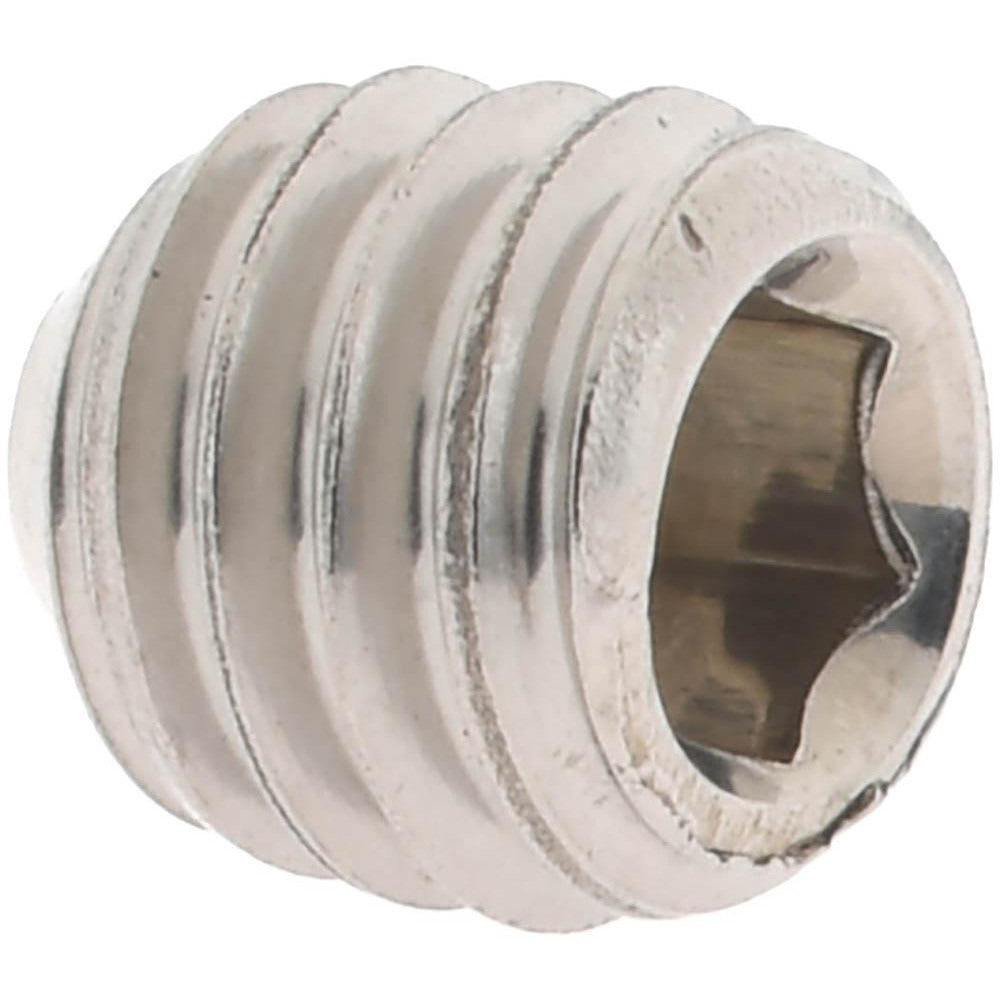

Value Collection SS6X05005-100BX M5 Set Screw Din 916 100pk

Product Description

The VALUE COLLECTION SS6X05005-100BX is an M5 x 0.80 x 5 mm cup point set screw manufactured from 18-8 austenitic stainless steel, Grade A2. Conforming to DIN 916, this fastener uses a 2.50 mm hex key drive and is suited for applications where corrosion resistance and reliable holding force are required. The cup point geometry bites into the mating surface to resist rotational and axial movement without requiring a through-hole. Sold in boxes of 100, this SKU is appropriate for maintenance shops, mechanical contractors, and assembly operations that consume metric fasteners at volume.

Cup point set screws in this size range are commonly used to secure collars, pulleys, gears, and sprockets to shafts in light mechanical assemblies. The metric M5 x 0.80 thread pitch and 5 mm overall length make this screw a standard fit for compact mechanical components found in HVAC equipment, pump assemblies, fan blade hubs, and general industrial machinery. The 18-8 stainless construction is appropriate for both indoor and moderately corrosive outdoor environments.

Key Features

• Cup point tip provides a firm bite on shaft surfaces to resist slippage under load
• 18-8 austenitic stainless steel, Grade A2 construction offers good corrosion resistance
• Meets DIN 916 standard for hex socket set screws with cup point
• 2.50 mm hex key drive for precise torque application in tight spaces
• Metric M5 x 0.80 thread with 5 mm overall length for compact assemblies
• Box of 100 units supports volume maintenance and production use

Compatibility

Designed as a DIN 916 metric hex socket cup point set screw for use in any application requiring an M5 x 0.80 thread pitch and 5 mm overall length in stainless steel.

Installation Notes

Install with a 2.50 mm hex key or ball-end driver. Ensure the shaft and collar surfaces are clean and free of debris before seating the cup point. De-energize or lock out any equipment before servicing rotating components per applicable safety procedures. Do not exceed the rated torque capacity of the fastener by applying extension tools to the hex key.
