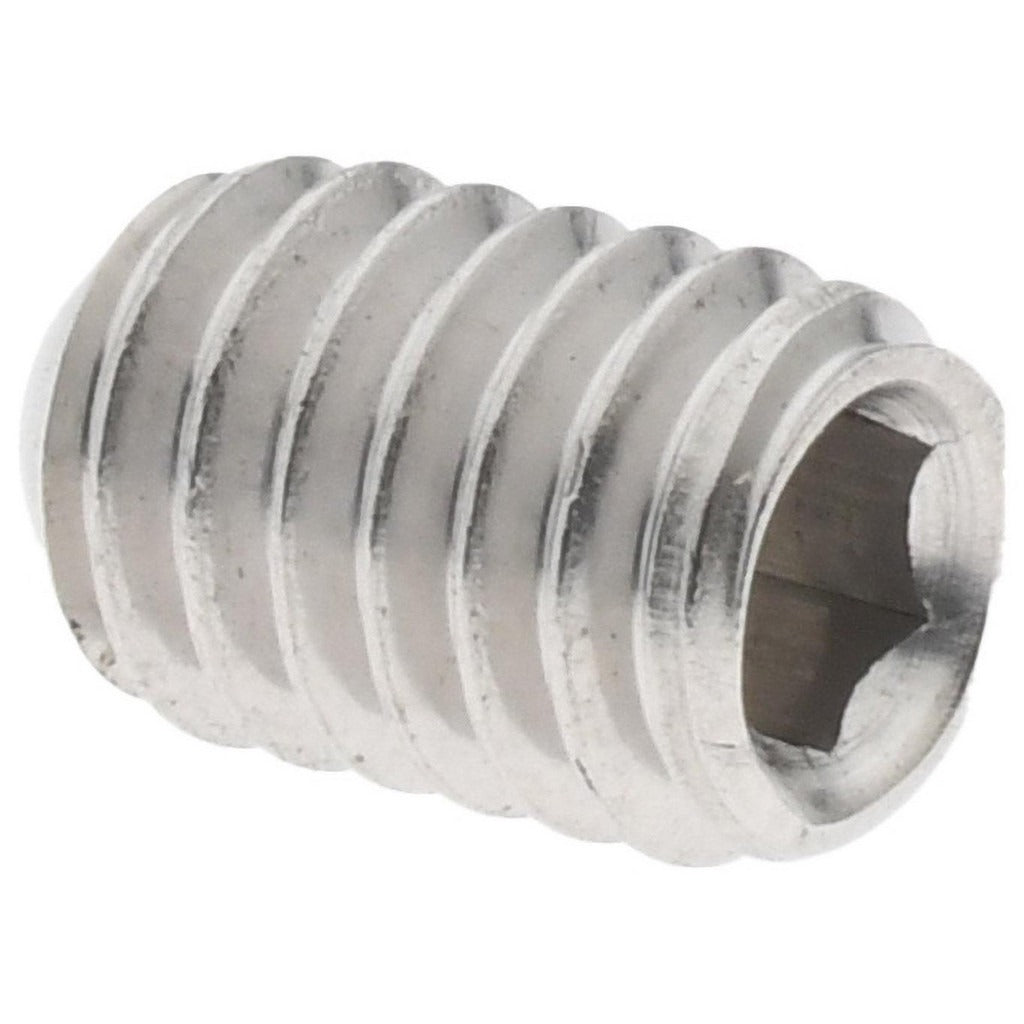

Value Collection SS6X04006-100BX M4 Set Screw Din 916

Product Description

The VALUE COLLECTION SS6X04006-100BX is a metric cup point set screw designed for general industrial and mechanical fastening applications. It features an M4 x 0.70 thread with an overall length of 6 mm, manufactured from 18-8 austenitic stainless steel meeting Grade A2 material requirements. The cup point geometry bites into the mating surface to resist rotational slipping under load. Drive engagement is via a 2 mm hex key socket. This fastener conforms to DIN 916 dimensional standards and is suited for use wherever corrosion resistance and metric thread compatibility are required. Licensed tradespeople and maintenance technicians working with metric machinery, instrumentation, and equipment assemblies are the primary installers.

This set screw is used in residential and commercial mechanical assemblies where a flush or recessed fastener is required to secure a shaft, collar, pulley, or similar component against rotation or axial movement. The cup point tip is appropriate for use on hardened and unhardened shafts alike. Applications span HVAC equipment assemblies, pump and motor collars, electrical enclosures, and general mechanical equipment requiring a corrosion-resistant metric fastener. Minimum order quantity is 100 pieces per order.

Key Features

• M4 x 0.70 metric thread, 6 mm overall length per DIN 916 standard
• Cup point geometry provides positive grip on shaft surfaces to resist slipping
• 18-8 austenitic stainless steel construction rated at Grade A2 for corrosion resistance
• 2 mm hex key drive for access in tight or recessed installations
• Headless profile sits fully flush or below the mating surface

Compatibility

Designed as a DIN 916 compliant metric set screw for use in any M4 x 0.70 threaded bore requiring a cup point, headless configuration in stainless steel.

Installation Notes

Set screws are installed by licensed mechanics, HVAC technicians, and maintenance tradespeople using a 2 mm hex key driver. Ensure the mating shaft and threaded bore are clean and free of debris before installation. De-energize and lock out any rotating equipment before servicing fasteners on shafts or couplings. Do not exceed the torque rating for M4 stainless fasteners as over-torquing can cause galling in stainless steel threads; apply an anti-galling compound where appropriate.
