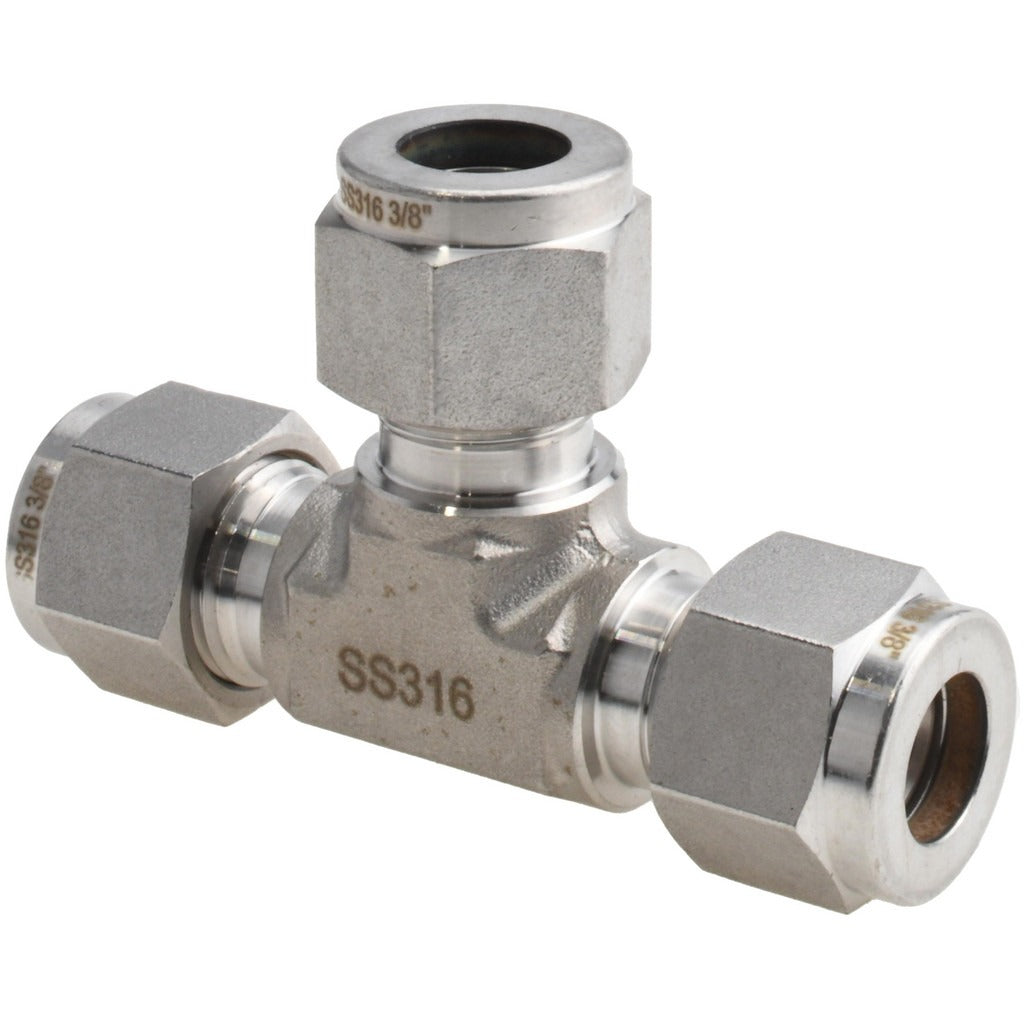

Value Collection SS-UT-FT6 Compression Tube Union Tee

Product Description

The VALUE COLLECTION SS-UT-FT6 is a stainless steel compression tube union tee designed for three-way tube connections in fluid and gas distribution systems. Machined from 316 stainless steel to ASTM A276 and related standards, this fitting accepts 3/8-inch outside diameter tubing on all three ports via compression-style ends, eliminating the need for threading, soldering, or welding at the joint. The 9/16-20 UNF thread standard ensures consistent engagement. At 1.2 inches overall length and 0.25 pounds, it is compact enough for tight installations. Licensed plumbers, pipefitters, and instrumentation technicians are the typical installers.

This union tee is suited for residential and light commercial plumbing, instrumentation tubing runs, pneumatic control lines, and process piping where corrosion resistance and reliable leak-free performance are required. The all-compression end configuration allows field assembly and disassembly without special tooling, making it practical for retrofit work and panel-mounted tubing layouts. Three identical 3/8-inch OD compression ports allow branch connections in a single fitting body.

Key Features

• 316 stainless steel construction for corrosion resistance in wet, chemical, and outdoor environments
• Three compression ends (Comp x Comp x Comp) for tool-free, bite-type tube connections
• 3/8-inch OD tube size on all three ports for uniform tubing runs
• 9/16-20 UNF thread standard for consistent nut engagement
• 1.2-inch overall length suits compact or panel-mount installations
• Meets ASTM A182, A213, A269, A276, A479 and DIN EN10122-5, DIN EN10272 standards

Compatibility

Designed as an OEM-style replacement compression union tee compatible with 3/8-inch OD stainless steel tubing systems. Cross-references to Swagelok part number SS-600-3 for replacement reference.

Installation Notes

Installation is typically performed by a licensed plumber or instrumentation technician. Before installing, relieve all system pressure and depressurize the tubing line completely. Insert tubing fully into the compression fitting before tightening the nut to ensure proper ferrule seating. Follow applicable codes including IPC and ASME B31 guidelines for the specific fluid or gas service application.
